E1701D Modular XY2/100 Scanner Controller

E1701D is a 3D XY2/100 and a 2D XY3/100 digital scanner controller card which can be extended by options described below and provides following features:

• 16 bit XY2-100 interface to scanhead with X, Y and Z channel
• 18 bit XY2-100-E interface to scanhead with X and Y channel
• 20 bit XY3-100 (certified LIA202002 standard) interface with X and Y channel
• 100 Mbit Ethernet connection
• USB 2.0 connection
• Online XYZ grid correction with support for several correction table file formats (like SCAPS™ .ucf, Scanlab™ .ctb and .ct5, Raylase™ .gcd, Rofin™ .fcr, GSI/CTI™ .xml, Sunny™ .txt, Han's Laser™ .crt)
• High-definition online XYZ grid correction with BeamConstruct HD correction files (.bco)
• Switching between up to 16 grid correction tables during marking process
• 10 microseconds vector cycle time and resolution (microstep period)
• Command execution time down to 0,5 microseconds
• Realtime processing of laser and scanner signals
• 26 bit internal resolution (for better quality also with 16 or 18 bit hardware output)
• Can control nearly every laser type (this may require extension boards as described
  below)
• Two laser CMOS level digital outputs for usage with YAG, CO2, IPG™ and compatible
  laser types (outputs can provide PWM frequency, Q-Switch, FPK-pulse, continuously running frequency, stand-by frequency), running with frequencies up to 20 MHz
• 512 MByte DDR3 RAM
• 1 GHz CPU clock
• Support for Micro-SD and Micro-SDHC cards with up to 32 GByte disk space for stand-alone operations
• Extremely low power consumption of about 1,8 W (Baseboard without any Extension Boards)
• Internal command and vector data list with more than 17 million entries
• Continuous list concept, no need to swap between lists
• BeamConstruct PRO license included
• Open source compatibility library that emulates existing programming interface for fast
  and easy usage with existing software (contains e.g. Scanlab™ RTC4™, SCAPS™ USC™/SCI and other compatible interfaces)
• Very small size of about 87 mm x 55 mm
• Hardware/firmware is quality made in EU/Germany

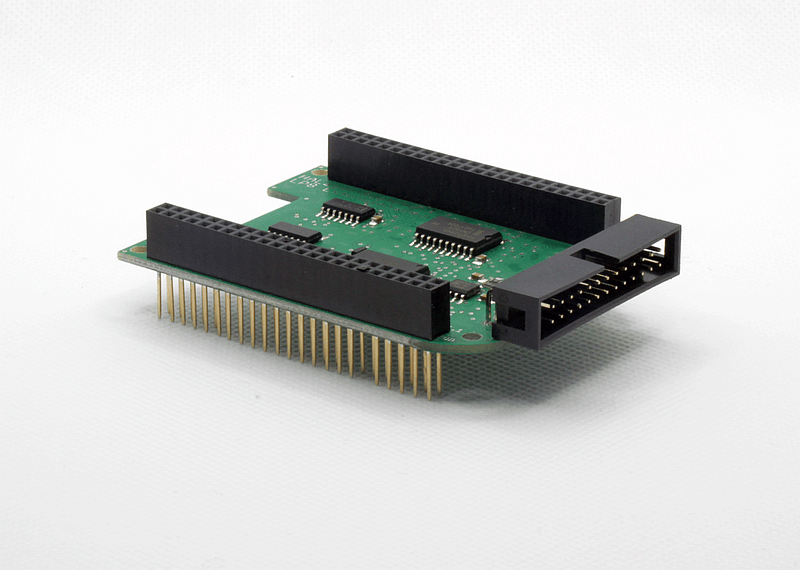

LP8 Extension Board requires E1701D baseboard as described above
and provides additional signals for controlling lasers and external
equipment. It offers following features and functions:

• LP8 8 bit CMOS level parallel digital output e.g. for controlling laser power
• LP8 latch CMOS level digital output for usage with IPG™, Raycus™ and compatible fiber laser types
• Min Oscillator CMOS level digital output for usage with IPG™, Raycus™ and compatible laser types
• 8 bit 0..5V analogue output e.g. for controlling laser power
• Two laser CMOS level digital outputs for usage with YAG, CO2, IPG™ and compatible
  laser types (outputs can provide PWM frequency, Q-Switch, FPK-pulse, continuously running frequency, stand-by frequency), running with frequencies up to 20 MHz

Please also check out the new E1702S Slim XY2-100/XY3-100 Scanner Controller Card which incorporates the functionality of a 2D E1701D Baseboard plus LP8 Extension within one single controller!

Digi I/O Extension Board requires a baseboard as described above
and provides additional I/Os for controlling external equipment. It offers
following features and functions:

• 8 digital inputs and 8 digital outputs can be switched to opto-insulated mode with
  external power supply of up to 24 V
• 2 inputs can be used for 90 degree phase-shifted encoder signal for marking on-the-fly applications
• Inputs can be used to select one of up to 256 stand-alone marking jobs stored on microSD card of baseboard

Secondary Head Extension Board gives possibility to connect an additional scanhead which then works fully parallel to the primary one connected to the baseboard and makes use of the same laser:

• XY2-100/XY3-100 interface for an additional scanhead marking parallel to head of baseboard
• Up to three of these extensions can be used with one E1701D baseboard to connect up to four scanheads

The optional E1701dock scanner and laser breakout board can be used to simply connection of scanner and laser:

• Can be used to connect a scanhead directly via D-SUB25 standard connector (so no Y-cable is needed from baseboard any more)
• Provides power-input via screw terminal to supply power to scanhead
• Offers D-SUB25 standard connector for MOPA lasers (such as IPG™ YLP, MaxPhotonics™ MFP, JPT™ YDFLP, Raycus™ RFL-PMX/RFL-PQB and compatible including optional readback of error states)
• Alternatively PWM-controlled lasers like YAG or CO₂ can be connected via BNC or D-SUB25 standard interface
• Interface to feed ExtStart and ExtStop signal into the dock
• Unused signals from LP8 or Digi I/O Extension Board can be forwarded via extended flat-belt cables with additional plugs
• LP8 and Digi I/O Extension Boards are still optional, the E1701dock can be used with any possible combination

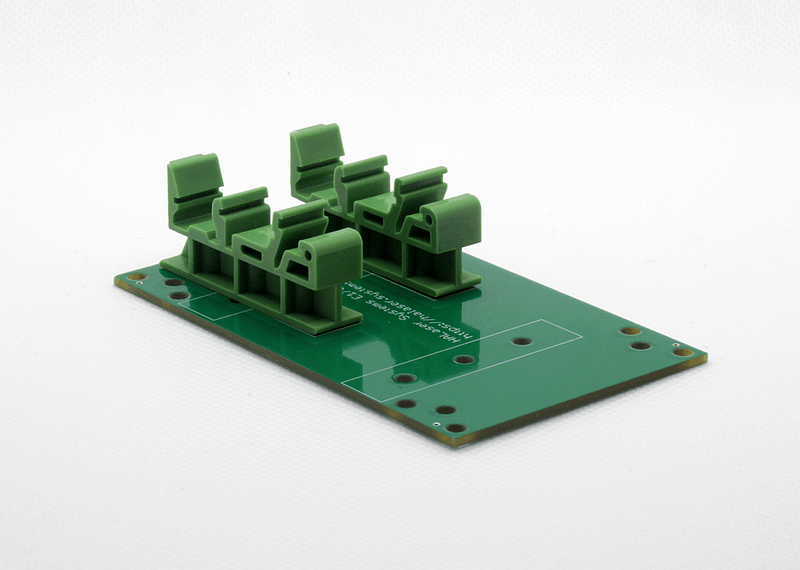

The optional E170Xbase Mounting Kit allows faster and easier mechanical installation of all types of E1701D controller boards:

• Comes with DIN rail / C45 clamps which can be installed in 2 different positions combined with 2 different orientations resulting in 4 different mounting variants
• E1701D can be mounted on top of E170Xbase with distance bolts or hex-stands using premanufactured mounting holes
• Can be used also without DIN rail / C45 clamps for custom mounting in machines and as top-cover for E1701

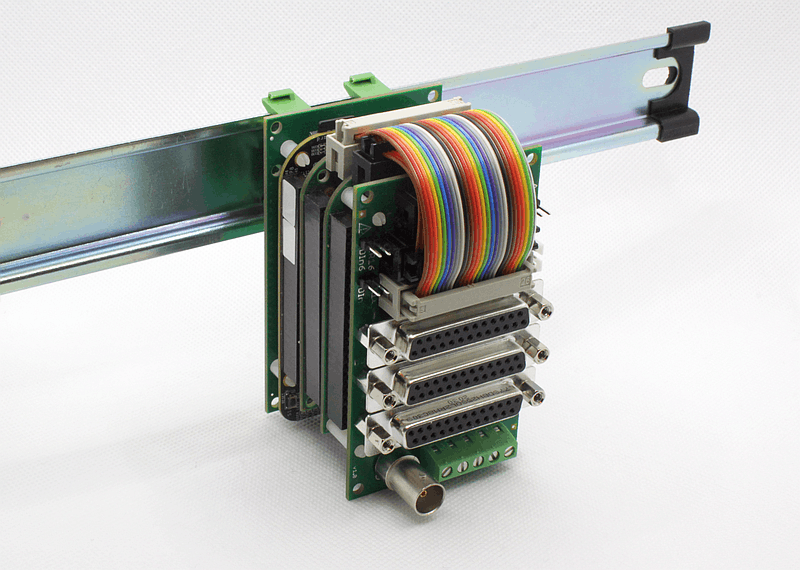

E1701D mounting example:

• E170Xbase to clamp the whole stack onto a DIN-rail
• E1701D with LP8 extension mounted on this E170Xbase
• E1701dock on top for easy connection of scanhead and laser via standard connectors
• Wiring between controller and E1701dock via two short, 1:1 flat-belt cables

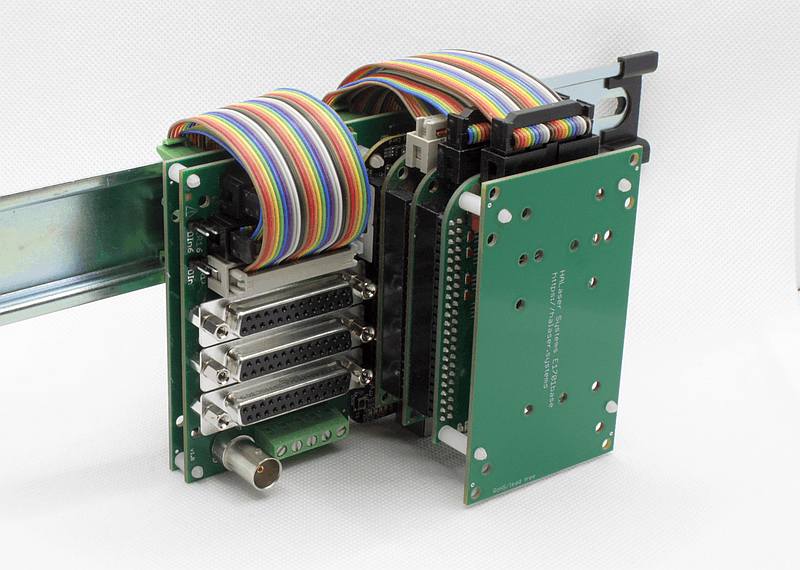

E1701D mounting example:

• E170Xbase to clamp the E1701dock breakout-board onto a DIN-rail
• E1701D with LP8 and Digi I/O extension mounted on an other E170Xbase clamped on DIN-rail
• E170Xbase as personnel protection insulation on top of the E1701D stack
• Wiring between controller and E1701dock via three 1:1 flat-belt cables
