1 Copyright

This document is © by HALaser Systems GmbH.

E1803D boards, their hardware and design are copyright / trademark / legal trademark of HALaser Systems
GmbH.

IPG and others are copyright / trademark / legal trademark of IPG Laser GmbH / IPG Photonics Corporation.

Scanlab, RTC4, RTC5, RTC6, SL2-100 and others are copyright / trademark / legal trademark of Scanlab AG.

SCAPS, USC1, USC2, USC3 and others are copyright / trademark / legal trademark of SCAPS GmbH.

Raylase, SP-ICE, RL3-100 and others are copyright / trademark / legal trademark of Raylase AG.

Rofin, Rofin-Sinar, Visual Laser Marker and others are copyright / trademark / legal trademark of Raylase AG.

Sunny, CSC-USB and others are copyright / trademark / legal trademark of Beijing Century Sunny Technology
CO., LTD

CTI, Cambridge Technology, Novanta and others are copyright / trademark / legal trademark of Novanta Inc.

Han’s, Han’s Laser and others are copyright / trademark / legal trademark of Han’s Laser Technology Industry
Group Co., Ltd.

Newson, SDP, Serial Data Protocol and others are copyright / trademark / legal trademark of Newson NV

All other names / trademarks are copyright / trademark / legal trademark of their respective owners.

Portions of the E1803D firmware are based on lwIP 1.4.0 (or newer):

Copyright (c) 2001, 2002 Swedish Institute of Computer Science.
All rights reserved.
Redistribution and use in source and binary forms, with or without modification, are permitted provided that
the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

the following disclaimer in the documentation and/or other materials provided with the distribution.

3. The name of the author may not be used to endorse or promote products derived from this software

without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHOR ``AS IS'' AND ANY EXPRESS OR IMPLIED WARRANTIES,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS
FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE AUTHOR BE LIABLE FOR ANY
DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING,
BUT NOT LIMITED TO, PROCUREMENT
OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF

THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY
OF SUCH DAMAGE.

Portions of the E1803D firmware are based on FatFS R0.10a (or newer):

FatFs module is an open source software to implement FAT file system to small embedded systems. This is a
free software and is opened for education, research and commercial developments under license policy of
following terms.

•

The FatFs module is a free software and there is NO WARRANTY.

•

No restriction on use. You can use, modify and redistribute it for personal, non-profit or commercial
product UNDER YOUR RESPONSIBILITY.

•

Redistributions of source code must retain the above copyright notice.

Portions of the E1803D firmware are based on StarterWare 2.0 (or newer):

Redistribution and use in source and binary forms, with or without
modification, are permitted provided that the following conditions are met:

•

Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.

•

Redistributions in binary form must reproduce the above copyright notice, this list of conditions and
the following disclaimer in the documentation and/or other materials provided with the distribution.

•

Neither the name of Texas Instruments Incorporated nor the names of its contributors may be used to
endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY
EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL
THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,
PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS
INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT,
STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF
THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Software License Agreement

Texas Instruments (TI) is supplying this software for use solely and exclusively on TI's microcontroller products.
The software is owned by TI and/or its suppliers, and is protected under applicable copyright laws. You may not
combine this software with "viral" open-source software in order to form a larger program.

THIS SOFTWARE IS PROVIDED "AS IS" AND WITH ALL FAULTS. NO WARRANTIES, WHETHER EXPRESS,
IMPLIED OR STATUTORY, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE APPLY TO THIS SOFTWARE. TI SHALL
NOT, UNDER ANY CIRCUMSTANCES, BE LIABLE FOR SPECIAL, INCIDENTAL, OR CONSEQUENTIAL
DAMAGES, FOR ANY REASON WHATSOEVER.

This is part of AM1808 Sitaraware USB Library and reused from revision 6288 of the Stellaris USB Library.

Portions of the E1803D firmware are based on libzint-backend 2.0 (or newer):

Redistribution and use in source and binary forms, with or without modification, are permitted provided that
the following conditions are met:

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the

following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and

the following disclaimer in the documentation and/or other materials provided with the distribution.

3. Neither the name of the project nor the names of its contributors may be used to endorse or promote

products derived from this software without specific prior written permission.

The Motion Extension firmware bases on motion5 version 1.1 or newer*:

Copyright (c) 2018 Oxygenic, (c) 2012-2016 Sungeun K. Jeon for Gnea Research LLC, Copyright (c) 2009-2011
Simen Svale Skogsrud

motion5 is free software: you can redistribute it and/or modify it under the terms of the GNU General Public
License as published by the Free Software Foundation, either version 3 of the License, or (at your option) any
later version.
motion5 is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the
implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General
Public License for more details.

*) GPL notice: the motion extension firmware is running separately and completely independent from the main
controller firmware, they are neither linked nor compiled together with each other. The related motion5
sources, as used on motion extension, can be found at https://sourceforge.net/p/axis5/code/ci/master/tree/

2 History

Date

Changes in document

12/2025

Description of cxcnc-mode control format added

09/2025

Wiring/configuration description for GZTECH DPSS UV laser added

06/2025

Wiring description for Raycus RFL-C Series 24V controlled CW lasers added

06/2025

Configuration parameter

cxcnc

added

06/2025

Command

cxcnc

added

06/2025

Added support for G2/G3 G-codes

05/2025

Description of configuration parameters errout and motout added

11/2024

Added PID control loop API function description

10/2024

Specification of SDP Extension Board added

08/2024

Description of pilot laser pin added

07/2024

Description of E1803dock NCC added

06/2024

Description of limitations of dynamic texts clarified

06/2024

Description of parameter “

iothres

” clarified

03/2024

Added parameter and command

cswaf

03/2024

Description of function

E180X_uart_write()

updated

02/2024

Description of A/E-LED updated

10/2023

Configuration parameter

u0stop

added

10/2023

Voltage levels of RS232 interface specified more exact

10/2023

Windows 11 Ethernet configuration description added

07/2023

Reference to header files and programming examples added

03/2023

Behaviour of A/E LED clarified

03/2023

Numbering of pins of extension boards clarified

12/2022

Description of

E180X_stop_execution()

and

cvers

extended

12/2022

Missing description of flags

E180X_PIXELMODE_

added

11/2022

Added new function

E180X_get_pos()

11/2022

Default values of G-Code parameters described

10/2022

Added new stand-alone commands

cspof

cfror

and

cpuor

10/2022

Electrical behaviour of digital IOs clarified

10/2022

New confoguration parameter

busid

added

10/2022

Code for d-command “Set Position Offset” corrected

06/2022

New function

E180X_motion_move_abs_async()

06/2022

New commands

cslp8

cslgt

and

cslmo

added

05/2022

Description of E1803dock MOPA version 1.2 added

02/2022

Tune-flag added to invert input logic of ExtStart input

02/2022

Tune-flag now also can read hex-values with 0x prefix

02/2022

Added tune-flags to invert LP8 and MO outputs

12/2021

New configuration parameter

lasergate

11/2021

Configuration parameter

u0bypass

added

11/2021

Tune-flag 524288 added

10/2021

Description of

E180X_set_xy_correction()

corrected

10/2021

E1803dock pinout description clarified

08/2021

New parameters

tunereadyout

and

tunemarkout

added

07/2021

Inappropriate language and naming removed (“master”, “slave”, ...)

07/2021

Description of HALdrive mounting possibilities added

07/2021

Added description of

ctlxy

command

07/2021

Wiring of JPT/MOPA laser with pulse width serial interface clarified

07/2021

Description of CSV-support in stand-alone mode added

06/2021

Added wiring scheme when no dual power supply is used

04/2021

New “d”-commands 0x18 / delay and 0x19 / Latch added

04/2021

Description of new configuration parameter “eth=2” for Ethernet interface polling added

04/2021

Description of Ethernet configuration updated for Windows 10

03/2021

Added function

E180X_get_serial_number()

01/2021

Added description of new function

E180X_motion_set_pulsewidth()

12/2020

Added commands “

cgmtx

” and “

csmtx

”

12/2020

Added new stand-alone function and configuration parameters “

iolatch

” and “

iothres

”

11/2020

Description of jumper configuration of digital interface extended

10/2020

Pinout of IPG YLM and SPI G4 corrected

08/2020

Description of parameter „tunexy3“ added

06/2020

XY3-100 description and pinout added

04/2020

Added description of

E180X_set_scanner_mode()

and introduced 200 kHz output modes

01/2020

Added description of commands „

csbuf

“ and „

cgbuf

“

01/2020

Added new stand-alone mode „

idxselect

“

01/2020

Added “

adcfreq

” configuration parameter

11/2019

Usage of digital inputs of Intelli-IO extension clarified

10/2019

Added wiring scheme for MaxPhotonics fiber lasers

10/2019

Example in description of

pethd

-parameter corrected

07/2019

Extended description of card state flags

07/2019

Added description about how to write stand-alone data via API

05/2019

Numbering of DIn and DOut of second digital port (Intelli-IO extension) corrected

02/2019

Added “

pethd

” configuration parameter

01/2019

Added PID control loop API function description

12/2018

Added “

haltedloopbuffer

” configuration parameter

11/2018

Stepper motor pinout added for Intelli-IO extension

10/2018

Added commands „

cscor

“ and „

cgcor

“

10/2018

Added “

haltedlooptimeout

” configuration parameter

09/2018

New tune-flag added

09/2018

Added description of Intelli-IO Extension Board and related API functions

05/2018

Added description of Motion Extension Board and motion API functions

04/2018

Description of new parameters “

digiinit

” and “

digimask

” added

04/2018

Description of new tune-flags added

04/2018

Added description of command

E180X_digi_pulse()

03/2018

Added description of Multi-IO Extension Board

02/2018

New “d”-command 0x45 to update firmware

02/2018

Added description of flag

E180X_COMMAND_FLAG_ASYNC

01/2018

Added description for

u0bits

and

u0parity

configuration parameters

12/2017

Added description for matrix-”d”-commands 0x40 and 0x41

10/2017

Added wiring description for IPG YLM lasers

08/2017

Added description for config parameters

wetout

and

mipout

08/2017

Description for

E180X_set_sync()

E180X_get_sync()

added

07/2017

Description of USB license retrieval clarified

07/2017

TrueType support in stand-alone mode

04/2017

Added description of command

cscnc

04/2017

Added wiring scheme for IPG YLR lasers

03/2017

Added description of supported G-Code commands

02/2017

Images updated

01/2017

Added wiring scheme for IPG type E lasers with APD index mode

01/2017

Added “

iohaltedloop

” stand-alone mode

12/2016

Description of

corrtable0

parameter corrected

12/2016

Initial version

3 Safety

The hardware described within this document is designed to control a laser scanner system. Laser radiation
may effect a person's health or may otherwise cause damage. Prior to installation and operation compliance
with all relevant safety regulations including additional hardware-controlled safety measures has to be
secured. The client shall solely be responsible to strictly comply with all applicable and relevant safety
regulations regarding installation and operation of the system at any time.

Beside of that some laser equipment can be damaged in case it is controlled with wrong signals or signals
outside a given specification. Thus it is highly recommended to check the output generated by this hardware
using e.g. an oscilloscope to avoid problems caused by wrong configurations. This should be done prior to
putting a system into operation for the first time, whenever some parameters have been changed or whenever
any kind of software update was installed.

The hardware described here is shipped without any cover and without prefabricated equipment for electric
installation. It is intended to be integrated in machines or other equipment. It is not a device for use "as is", but a
component which is intended to be used as part of a larger device, e.g. for integration in a machine with own
housing or within an electrical cabinet. Prior to operation compliance with all relevant electric /
electromagnetic safety regulations including additional hardware-controlled safety measures has to be
secured. The client shall solely be responsible to strictly comply with all applicable and relevant regulations
regarding installation and operation of the system at any time.

The hardware described here is an electrostatic sensitive device. This means it can be damaged by common
static charges which build up on people, tools and other non-conductors or semiconductors. To avoid such a
damage, it has to be handled with care and including all relevant procedures (like proper grounding of people
handling the hardware, shielding/covering to not to let a person touch the hardware unwanted, proper
packaging in ESD-bags, ...). For more information please refer to related regulations and standards regarding
handling of ESD devices. The EMC Directive (2014/30/EU) does not apply to this hardware as it is not intended
for an end user (a person without knowledge of EMC) and as it is not otherwise made available on the market.

The Low Voltage Directive (2014/35/EU) does not apply to this hardware as the voltage supply is below the
50V AC / 75V DC limit.

This document describes the E1803D-hardware but may contain errors and/or may be changed without further
notice.

4 Overview

This document describes the E1803D compact scanner controller board, its electrical characteristics and
usage.

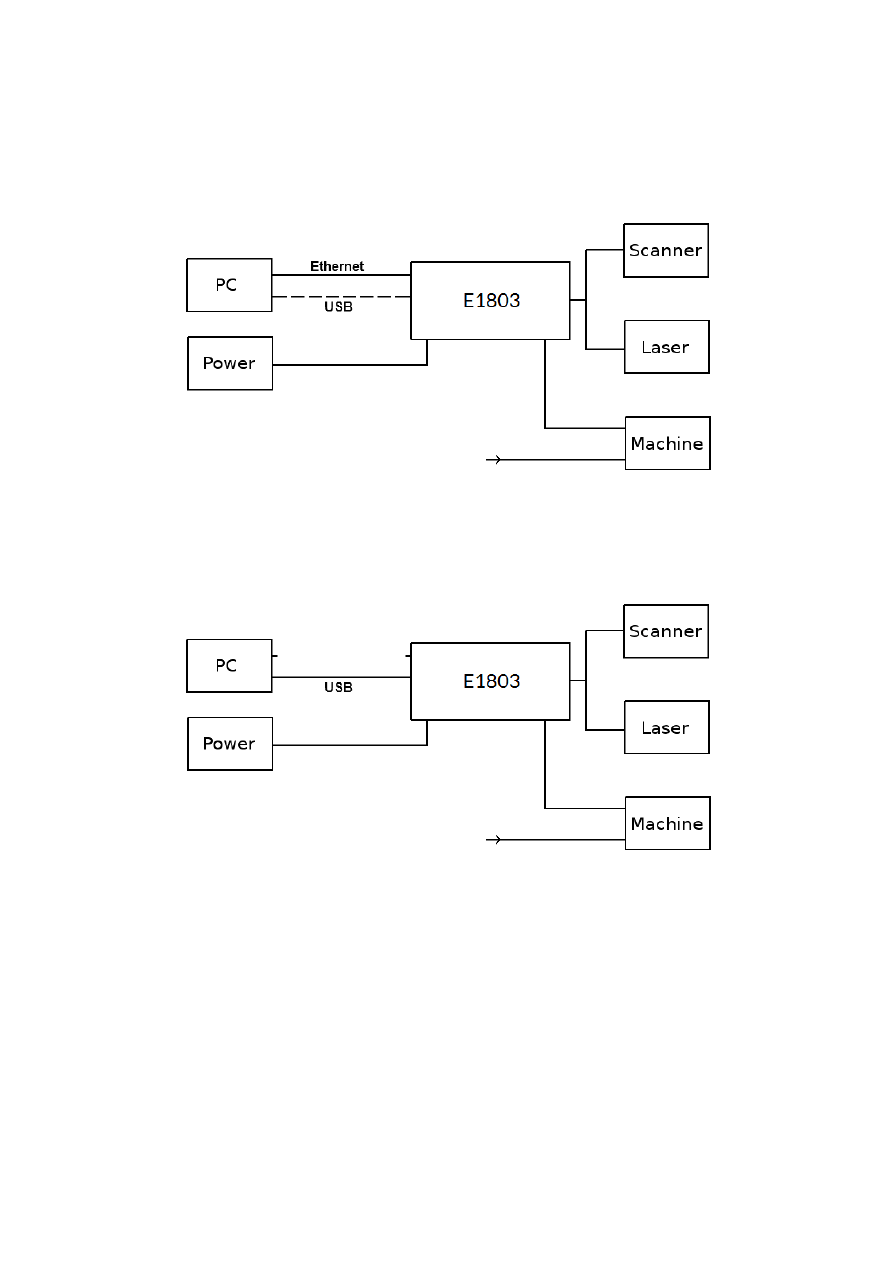

The E1803D scanner controller board is designed for controlling galvanometric scanner systems with two or
three axes. It also supplies extensive signals for laser and external control. The communication between the
host system and the controller boards is done via Ethernet or USB.

This is an all-in-one controller which provides all interfaces that are required to control common lasers and
additional hardware. For a modular controller which can be configured according to some special requirements
please refer to

https://halaser.systems/E1803.php

4.1 Features

The E1803D controller can be used to control 2D or 3D scanheads that come with a XY2-100 interface. It
offers the following features:



XY2-100 and XY2-100-E interface to scanhead with X, Y and optional Z channel



100 Mbit Ethernet connection



USB 2.0 connection



online XYZ grid correction with support for several correction table file formats (like SCAPS™ .ucf,
Scanlab™ .ctb and .ct5, Raylase™ .gcd, Rofin™ .fcr, Han’s™ .crt, CTI™ .xml, Sunny™ .txt)



high-definition online XYZ grid correction with BeamConstruct HD correction files (.bco)



switching between up to 16 preloaded grid correction tables



10 microseconds vector cycle time and resolution (microstep period)



command execution time down to 0,5 microseconds



realtime processing of laser and scanner signals



26 bit internal resolution (for better accuracy also with 16 bit or 18 bit hardware output)



512 MByte DDR3 RAM



1 GHz CPU clock



support for microSD and microSDHC cards



optional matrix laser dot marking mode with up to 13 dots, up to two independent lines of text and up
to 2 MHz dot frequency



internal command and vector data list with more than 20 million entries



continuous list concept, no need to swap between buffers



BeamConstruct PRO license included



open source compatibility library that emulates existing programming interface for fast and easy usage
with existing software (contains e.g. Scanlab™ RTC4™, SCAPS™ USC™/SCI and other compatible
interfaces)



LP8 8 bit CMOS level parallel digital output e.g. for controlling laser power or laser waveform type



LP8 latch CMOS level digital output for usage with IPG™ and compatible laser types



Main Oscillator CMOS level digital output for usage with IPG™ and compatible laser types



12 bit 0..10V analogue output e.g. for controlling laser power



two laser CMOS level digital outputs for usage with YAG, CO

, IPG™, SPI™ and compatible laser types

(outputs can provide PWM frequency, Q-Switch, FPK-pulse, CW/continuously running frequency,
stand-by frequency) running with frequencies of up to 20 MHz



8 freely usable digital outputs providing either CMOS level or electrically insulated outputs via
external power supply



8 freely usable digital inputs expecting either CMOS level or electrically insulated inputs via external
power supply



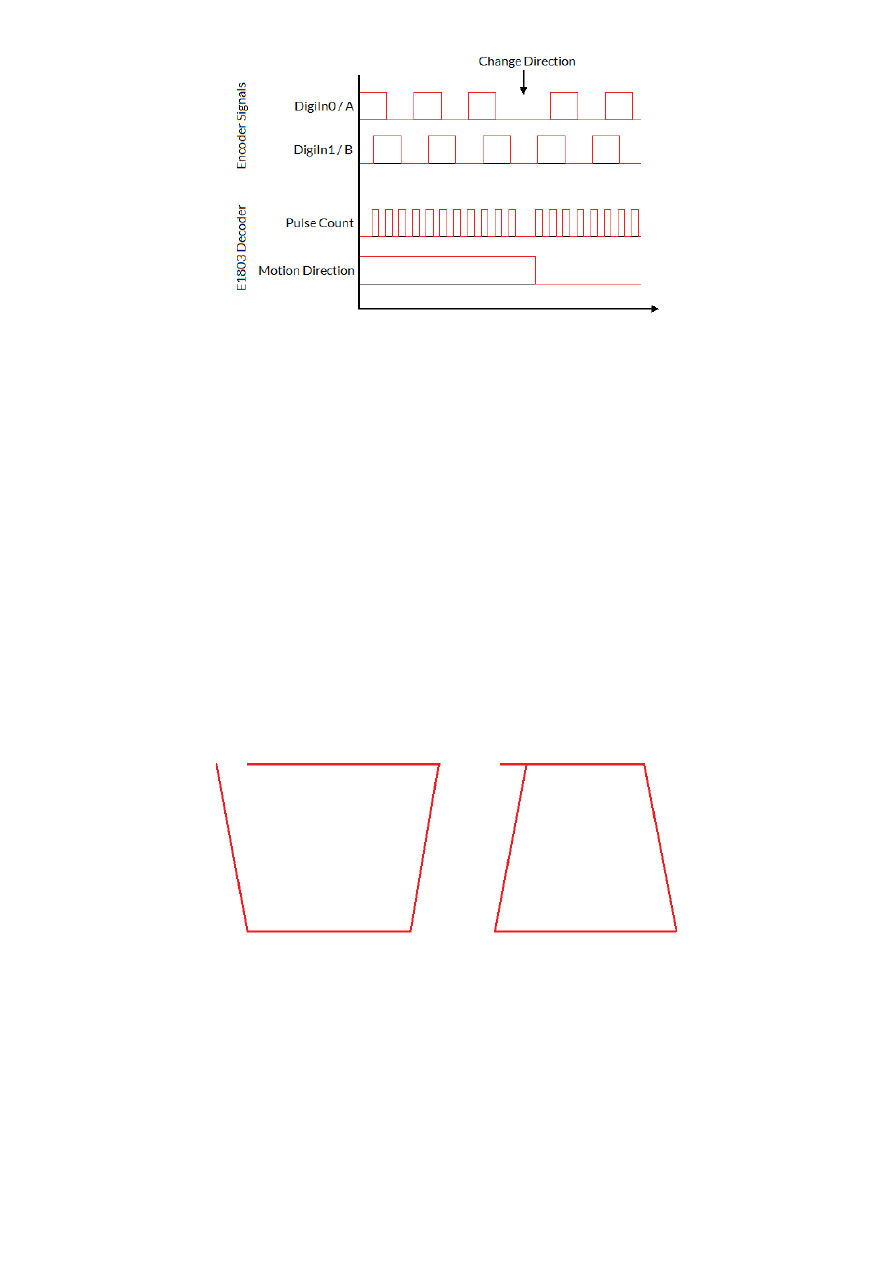

4 digital inputs usable for quadrature encoder signals for 1D and 2D marking on-the-fly applications



RS232/RS485 serial interface for communication with external devices



scanhead power supply via controller card to save additional wiring

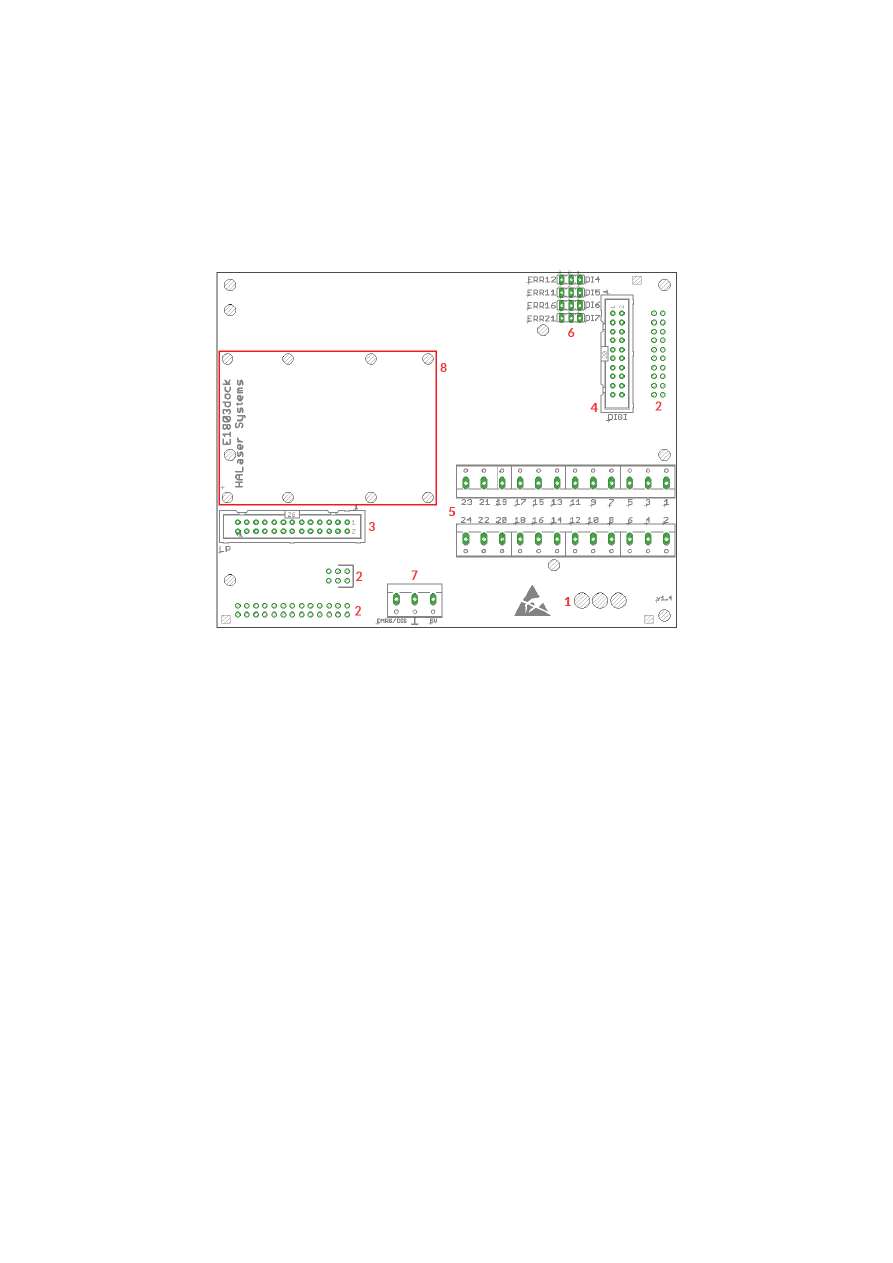

6 Board And Connectors

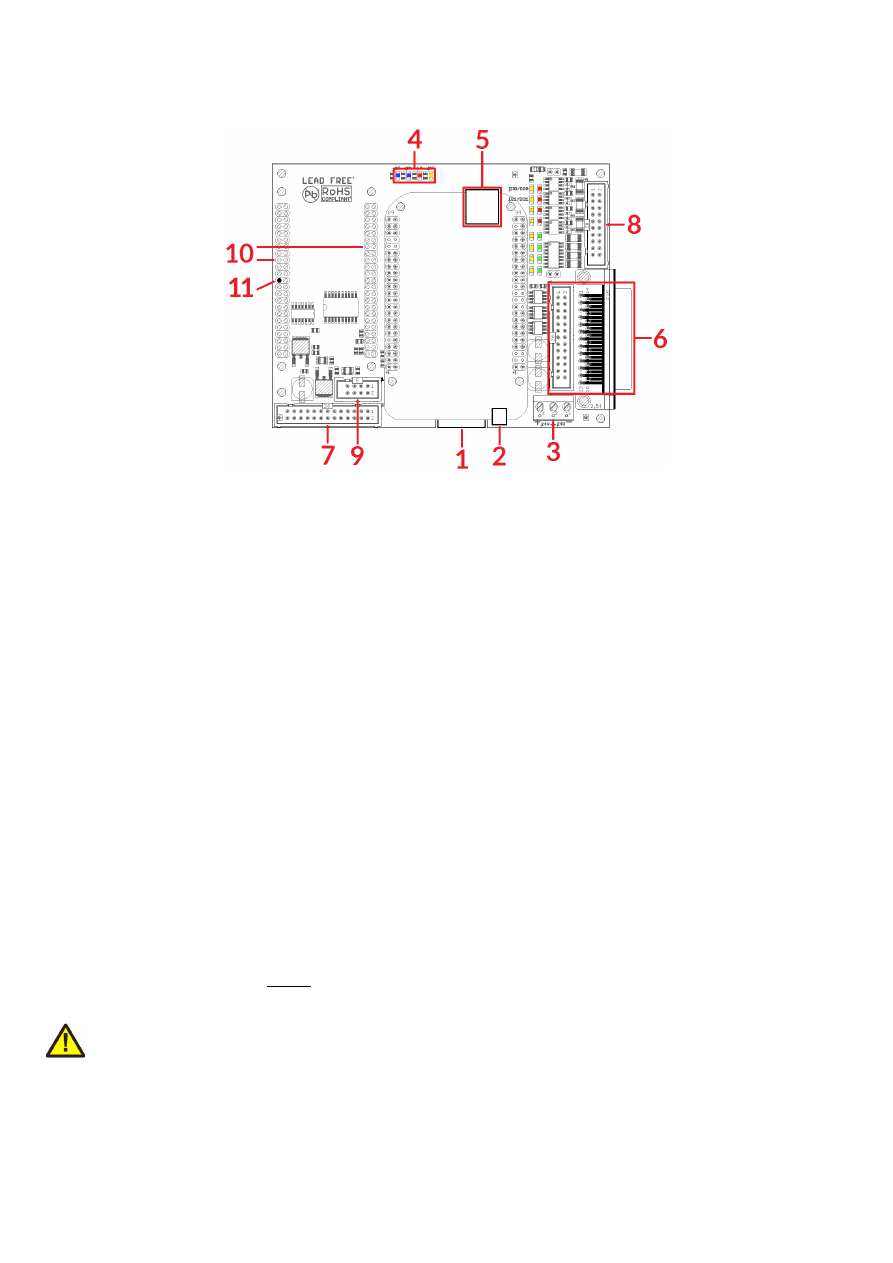

The E1803D Digital Laser Scanner Controller Card provides following connectors and interfaces:

1. Ethernet – for communication with the host system, marking information are submitted via this path
2. USB – via microUSB connector for providing BeamConstruct PRO license to host system and

optionally for submitting marking data from host to E1803D card (in case Ethernet is not used)

3. Power – connect with power supply
4. User LEDs – show operational and error states of card

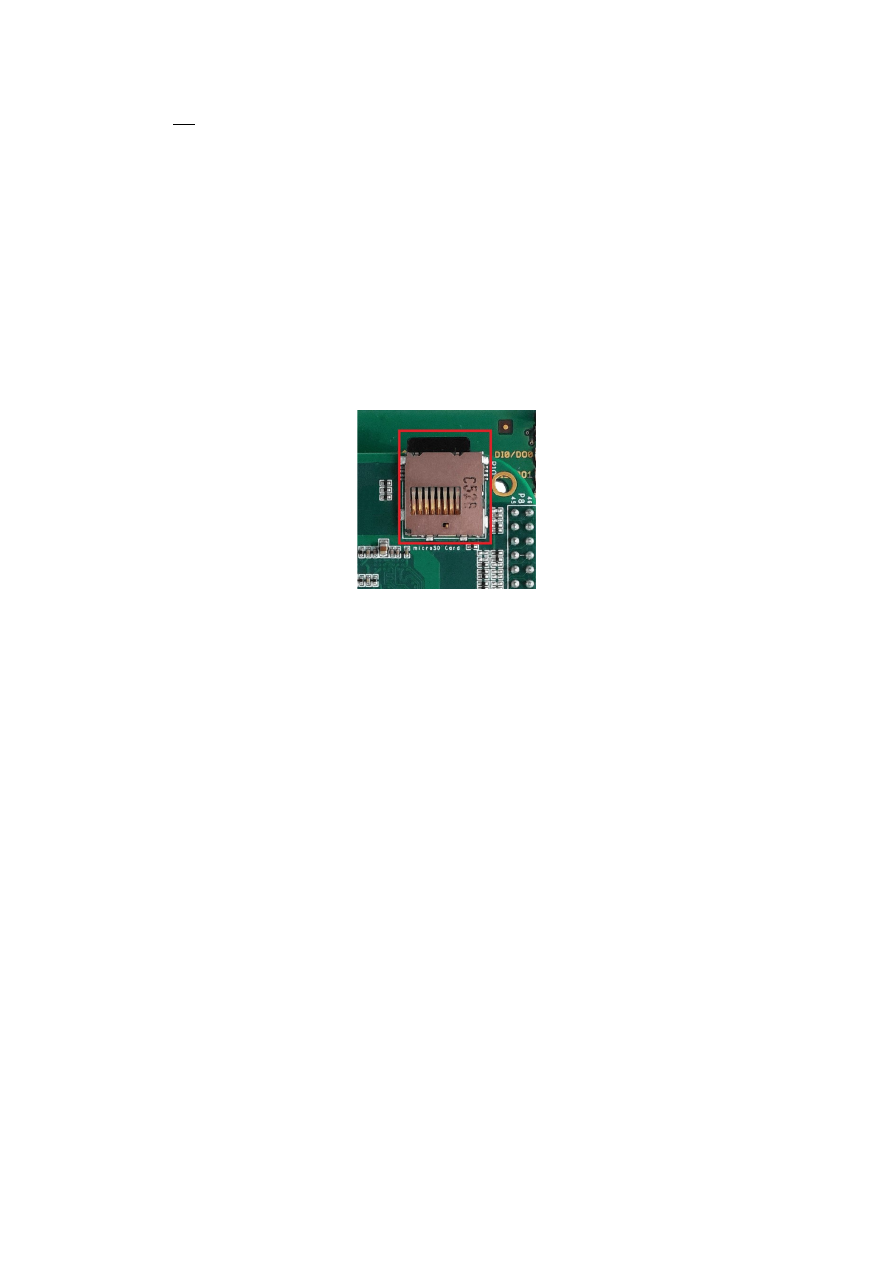

5. microSD-card – storage place for firmware and extended configuration file, can be used to upgrade

firmware, to change the card's IP and other things more

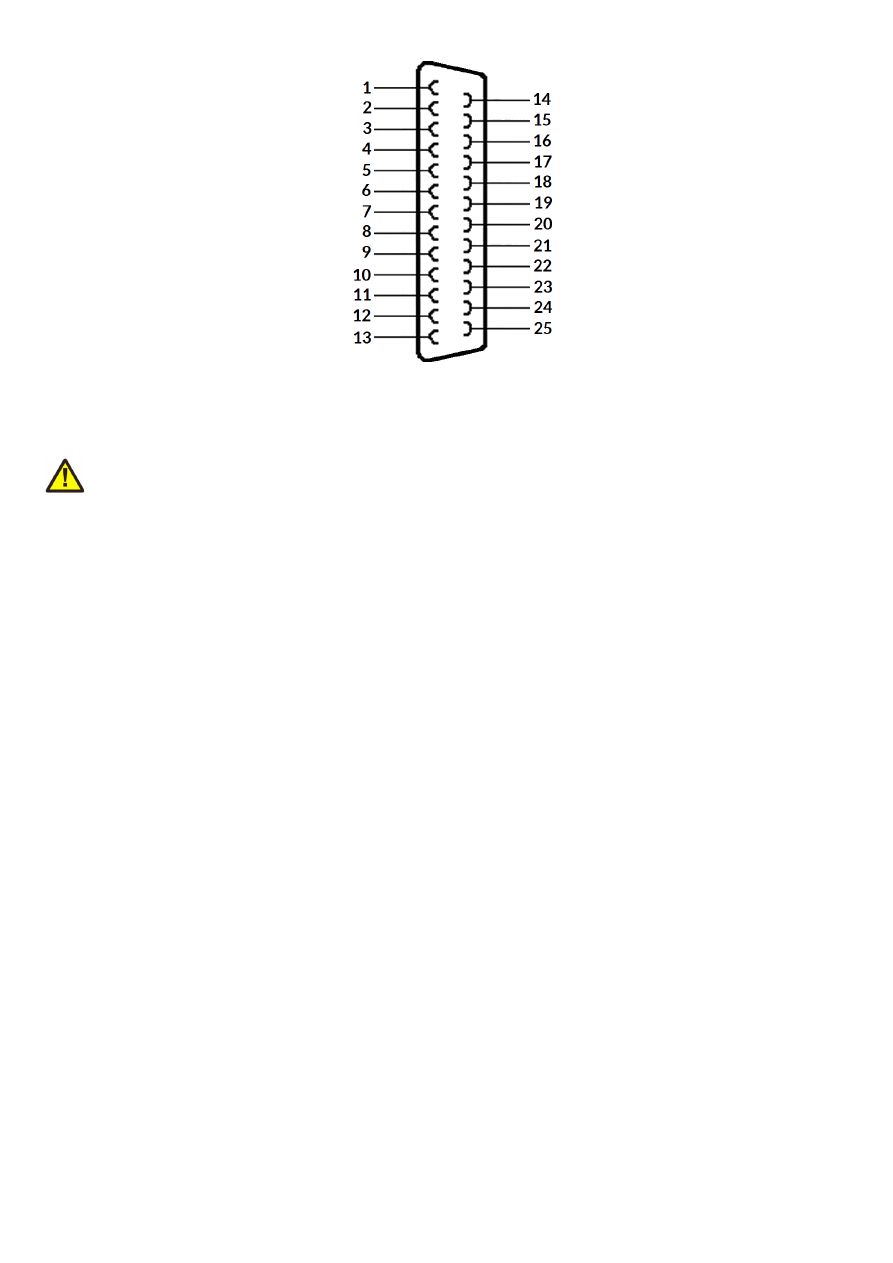

6. Scanner signals – 26 pin and D-SUB25 scanner output connectors which provides XY2-100 scanner

signals and power to scanhead

7. Laser signals – connector with different signal for controlling a laser and for starting/stopping mark

operation

8. Digital interface – in- and output connector for control of external devices and for connecting marking

on-the-fly encoder(s)

9. Serial interface connector for connections to RS232 or RS485 devices
10. Extension connectors
11. Code-pin for correct placement of extension boards

6.1 Ethernet

This is a standard RJ45 Ethernet plug for connection of the board with the host system. When the controller

board is accessed via this connection, all scanner and laser data are sent via Ethernet. Thus it is recommended
for security reasons to have a separate machine network that contains the control-PC, the scanner controller
card(s) and other Ethernet-devices for the machine, but has no physical connection to the “outer world”, means
no access to the internet.
Ethernet connection is initialised during start-up only, thus Ethernet cable connecting E1803D board and host
system needs to be plugged before the board is powered up.
By default the E1803D board is using IP 192.168.2.254, thus the Ethernet network the card is connected with
needs to belong to subnet 192.168.2.0/24.
PLEASE NOTE: For security reasons it is highly recommended to not to mix a standard communication network
with an E1803D network or to connect the scanner controller card with a standard network. Here it may be
possible someone else in that network (accidentally) connects to that scanner controller and causes laser
emission.
The IP of the scanner controller can be changed. This is necessary e.g. in case an other subnet has to be used or
in case the E1803D board has to be operated in multi-head environments where more than one card will be

accessed at the same time. The IP can be configured using e1803.cfg configuration file that is placed on
microSD-card. To change the IP, please perform the following steps:

1. disconnect E1803D board from power and USB
2. remove microSD-card
3. put microSD-card into a desktop computer, this may require a microSD- to SD-card-adapter
4. open the drive that is assigned to the card
5. open file e1803.cfg using a text editor like Notepad or kwrite
6. add a line or edit an existing line "

ip0=

", here the desired IP has to be appended (as example: when you

want to configure IP 192.168.2.13 the line has to be "

ip0=192.168.2.13

" – without any quotation

signs

7. save the file
8. eject the drive the card is assigned to
9. place the microSD-card in E1803D board (place without the use of force, notice correct orientation

with connectors of SD-card to top!)

10. power up card

When User LEDs do not light up as described below, please check if microSD-card is placed in board correctly.

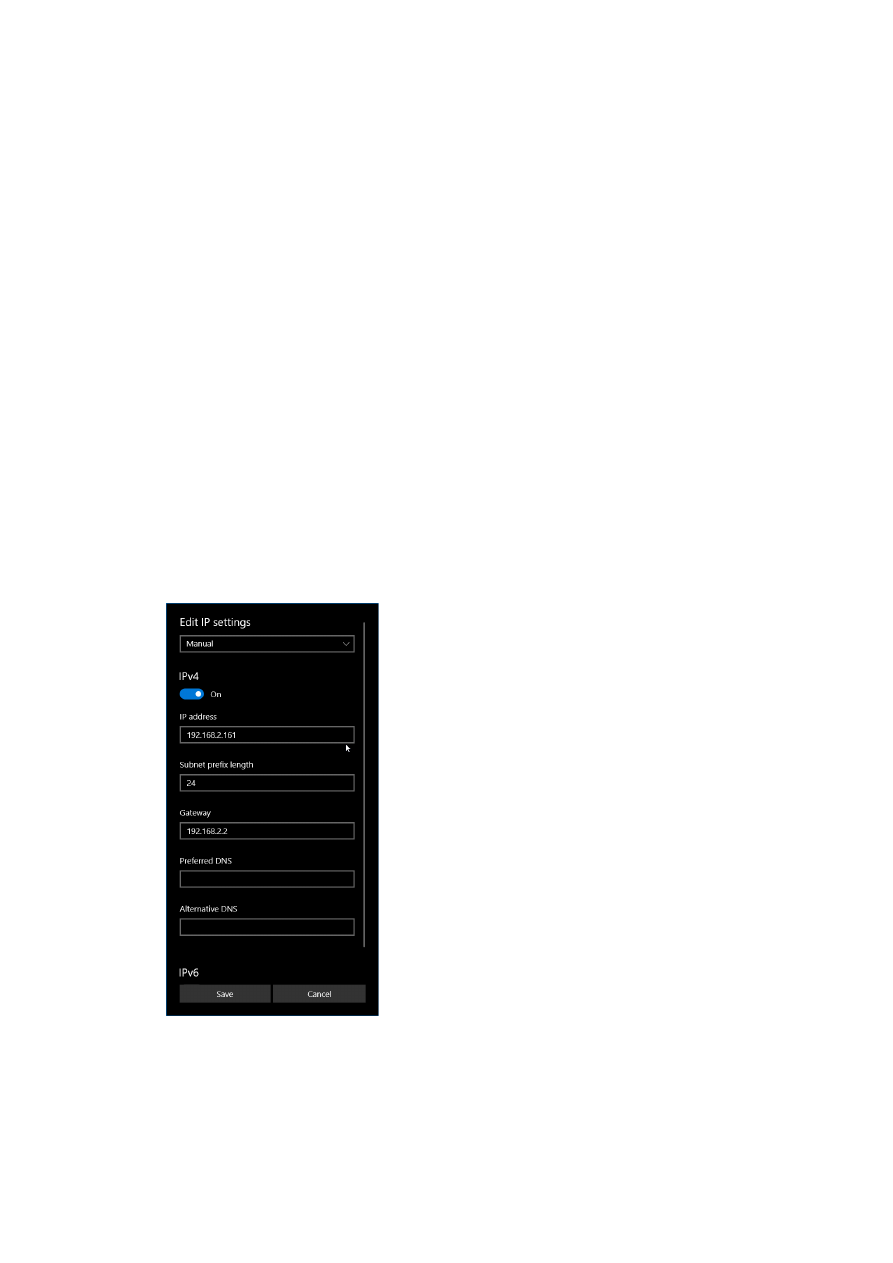

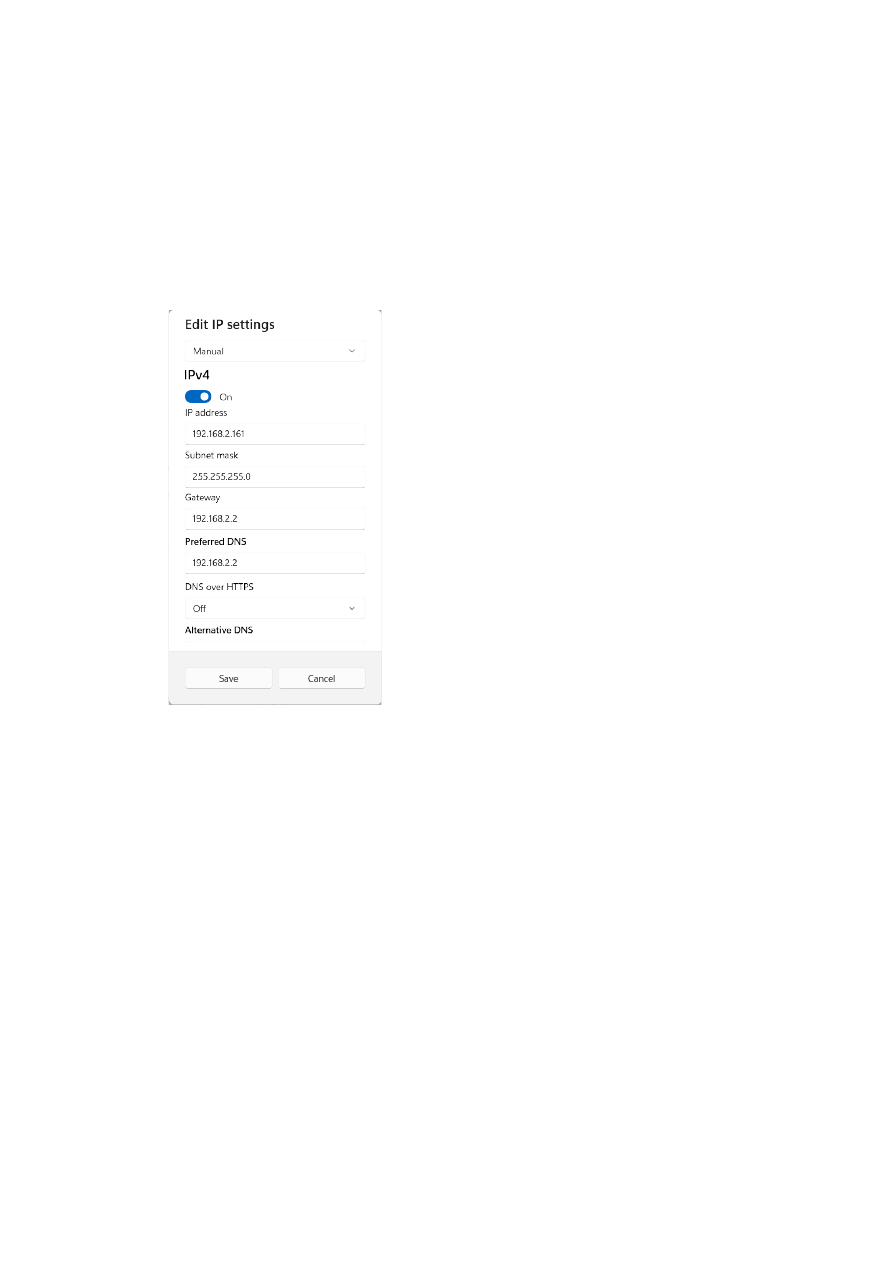

6.1.1 Ethernet Configuration With Windows 10

When E1803D scanner controller is accessed via Ethernet, it is recommended to use a separate network for
security reasons. Since the controller is working with a static IP (default is 192.168.2.254) the Ethernet port on
host PC has to be configured with an IP of same subnet in order to allow access to it. For Windows 10 (and
similar) this configuration has to be done using following steps:

1. right-click the network-symbol in your taskbar
2. Select “Open network and internet settings”
3. Select “Ethernet” on the left
4. find the network interface E1803D has to be connected with and select it
5. Click the “Edit” button in section “IP settings”
6. now a window opens where “IPv4” has to be turned on and that has to be configured as follows:

There you can specify an IP for your host PC. It has to belong to network 192.168.2.xxx and can be any
number except than 192.168.2.254 (this is already the IP of the scanner card), 192.168.2.0 or
192.168.2.255.

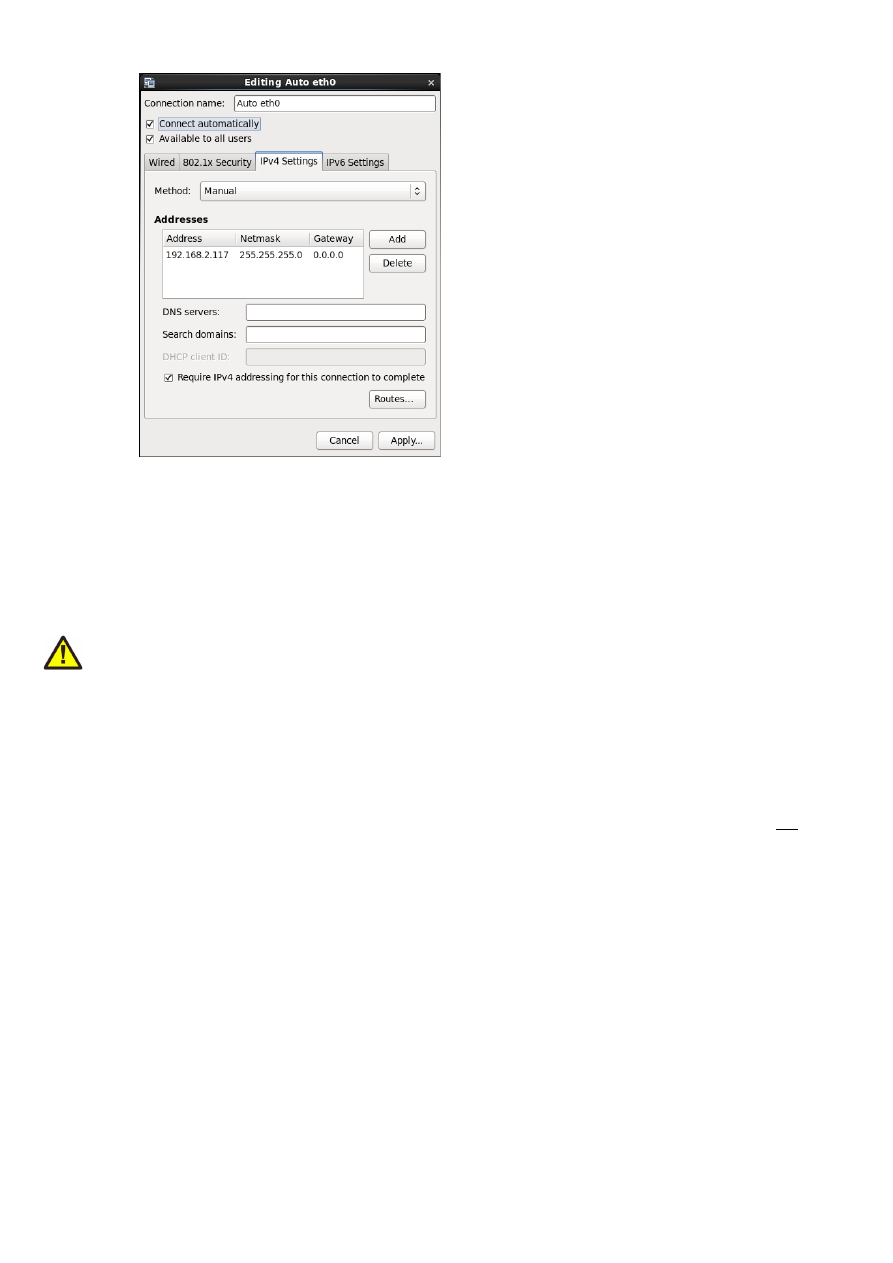

4. go to tab-pane "IPv4 Settings" and configure it as shown below:

6.2 USB

This is a standard microUSB-connector for connection of the board with the host system. It is used to retrieve
BeamConstruct PRO license and optionally to send marking data to the card. When USB is used for sending all
scanner and laser data, Ethernet cable does not need to be connected.
PLEASE NOTE: USB 2.0 is much slower than a standard 100 Mbit Ethernet connection, so expect slower
execution in case of complex marking data!
The required device driver is installed automatically during the installation of the HALsetup software package
(Windows) or comes with operating system by default (Linux). E1803D card appears as COM-interface on
Windows using any free number for the port. With Linux it appears as /dev/ttyACMx where "x" is any number.
These numbers are provided by the operating system automatically.
When no external power supply is connected, USB provides 5V power supply too. So whenever the card has to
be stopped, both USB and power have to be disconnected in order to shut it down completely. It is not
recommended to use USB as power supply, additional, external power should be connected in order to operate
E1803D controller correctly. When E1803D is powered via USB only, not all functions are available. Here
things like power supply of connected scanhead and 0..10V analogue output signals AOut0 and AOut1 will not
work.
Depending on the capabilities of the used USB host, there also may be other failures and limitations caused by

power-brownouts and drop-outs.

When the controller is connected via USB, a BeamConstruct PRO license is provided via this interface
automatically. This is done without the need to configure anything, and as long as following conditions are true:

•

physical USB connection from controller to host PC exists

•

the COM-port (Windows) has a number smaller than COM20

•

the controller is working and the Alive-LED in blinking

It is also possible to have the USB-connection for license retrieval only and to use the Ethernet-connection to
transfer marking data to the controller, both can exist beside each other.

6.3 Power

Power supply for E1803D scanner controller board is done via 3 pin screw connector. Here a power in range
+12..+24V or +-12..+-24V can be connected. This connector powers the board and optionally can be used to

power the scanhead too as this power is routed to the DB25-connector directly and from there can supply the
scanhead directly (for details please refer to description of XY2-100 / XY3-100 connector below).

+V GND

-V

Following possibilities to connect power exist:

GND

-V

Supported Features / Remarks

12..24 V connected unused

Power E1803D and analogue outputs AOut0 and AOut1

12..24V connected 12..24V

Power E1803D, analogue outputs AOut0 and AOut1 and scanhead via XY2-
100 / XY3-100 connector, input voltage has to be the same voltage that is
required to operate the scanhead

12V

connected unused

Mandatory power supply in case the

SDP Extension Board

is used (as

described in section “12 SDP Extension Board” below)

12..24V unused

12..24V

Not allowed!

unused connected 12..24V

Not allowed!

unused unused

unused

Power supply needs to be done via USB, then only E1803D is powered;
scanhead needs a separate power supply connection and the wires 9..13 and
22..25 of the D-SUB25 connector

need to be interrupted between scanhead

and controller!

other

Not allowed!

When all three inputs are connected to a bipolar power supply providing +-12..+-24V to power both, the
controller and a connected scanhead, the input voltage is feed to the scanhead directly via XY2-100 connector.
Here the voltage has to be equal to the voltage required by the scanhead (typically +-15V or +-24V). Power
supply needs to provide 1A plus current required for connected scanhead. For more details please refer to
section about XY2-100 connector below.

When no power supply with symmetric/bipolar outputs is available, it is possible to combine two standard
power supplies, here GND of the first power supply has to be connected with +V of the second power supply
and with the GND-screw-connector of E1803D:

ATTENTION: When connecting wires to the screw terminals of the power connector, do not transmit any force
to the PCB where the green connector is soldered at! While screwing tight the wires, hold the connector by
hand to catch the force but

do not hold the PCB only!

ATTENTION: due to the undefined behaviour of some power supplies with high peaks in some specific
situations, the power to the controller never should be toggled just by pulling and reconnecting a cable which is

on power (hot-swap). Always turn off the power the regular way via the power supplies input/a regular switch.
Otherwise this can cause serious damage to the controller card or power supply.

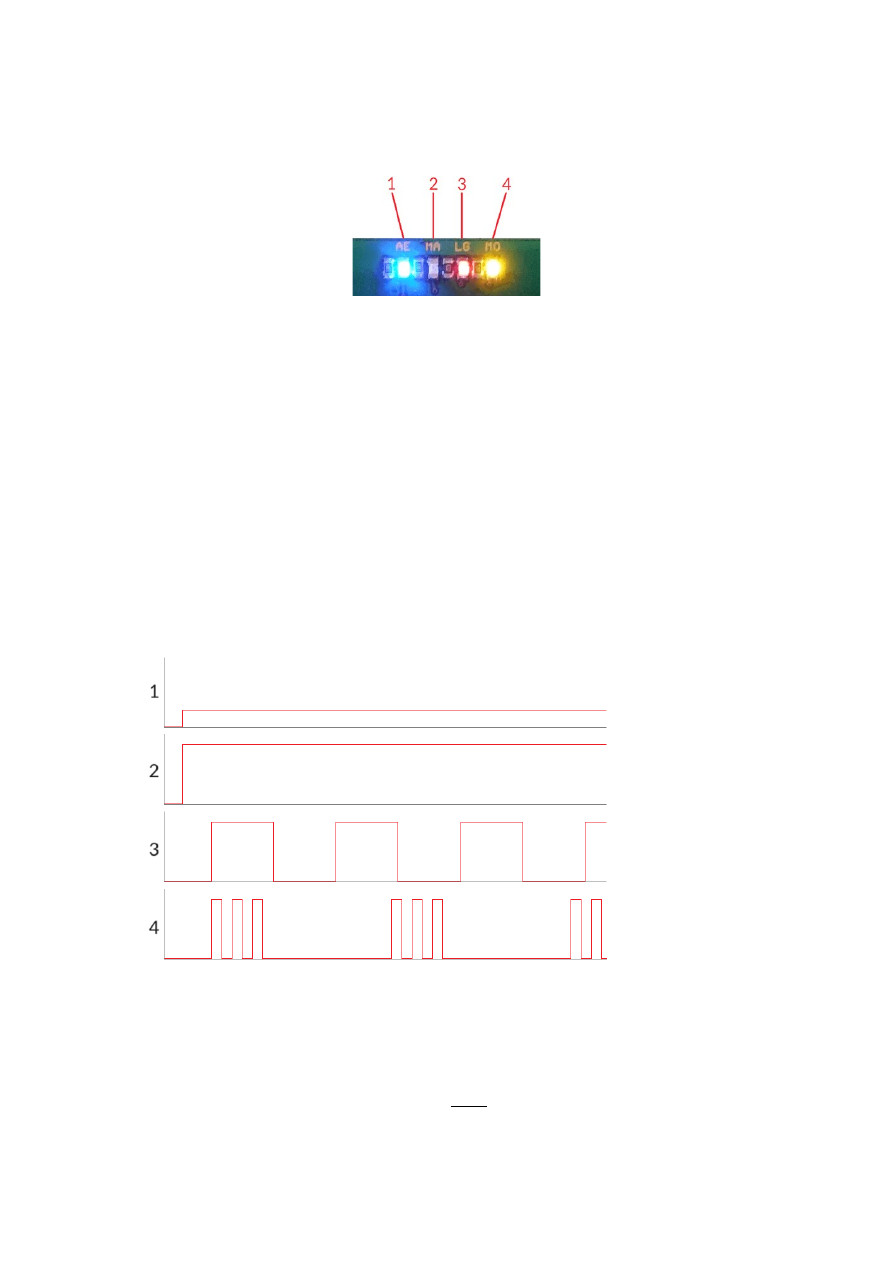

6.4 User LEDs

The real operational state of the card is shown by four additional LEDs described here:

1. A/E (Alive/Error) – blue – this LED is turned on permanently (with full brightness) as soon as the card

was powered up and the firmware boots properly. When it is not turned on with full brightness after
some seconds, please check if the microSD-card is placed properly and if it contains a working firmware
file (for details please refer below).
After boot process has completed successfully, it starts blinking slowly and with same on and off times.
This is an alive-notification, as long as it blinks, the board is working and ready for operation. During
operations the blink frequency may vary.
When this LED starts blinking with a changed on-time (LED is off for a long time and flashes two or
three times for a short time only), a fatal error has occurred that normally should never happen. When
this happens, in some cases the board can't continue with operation until the reason for error is
removed and the board is restarted.
In case this LED flashes signalling an error-state, please:
- check if you are using valid E1803D extension boards only (and no other 3rd party hardware)
- check if you are using latest firmware and host software
- check all connections and cables
- undo your latest changes in hardware and configuration
If these steps do not help, please contact us for further assistance.

So this LED can signalise four operational states:

1 – Powered on but firmware not yet loaded – turned on permanently but with low brightness
2 – Not ready / booting – turned on permanently with full brightness
3 – Operational – blinking, on and off times are the same

4 – Error – flashing three times, LED is off most of the time and is turned on for a very short time only
(with some previous firmware version the error is signalled by flashing two times)

Please note: during start-up and when the configuration parameter “eth=2” is set in e1803.cfg, the
blinking frequency of operational state 2 can be much lower. This is the case as long as the controller
tries to detect an Ethernet connection. It ends and switches to faster blink frequency as soon as this

detection is timed-out or as soon as a connection via Ethernet or USB is established.

2. MA (Marking Active) – blue – this LED is turned on as long as a marking operation is running. This LED

does not correspond to the laser gate signal, comparing to it it’s also enabled during jumps when laser is
turned off but marking operation itself is active.

3. LG (LaserGate) – red – this LED shows modulation state of the laser and signal the state of the laser

gate output. It is turned on as long as the laser is turned on and the laser gate is high. This LED does
NOT signal the same like the marking active LED described above since it will be turned off during
jumps.

4. MO (Main Oscillator) – yellow – this LED is specific to the Main Oscillator output signal described

below. As long as the signal is on (HIGH-signal at output pin), the LED is turned on.

6.5 microSD-Card

The microSD-card is storage place for firmware and configuration files. Here SD and SDHC cards with a
capacity of up to 32 GB are supported. It is plugged with the contacts of the SD-card oriented to upper side.

To remove the microSD-card, first disconnect all power from the E1803D board completely (including USB).
Next press microSD-card gently into the board until you can hear a click-noise. Then you can pull it out of the
board. To place a microSD card, the same has to be done in reverse order: place it into the E1803D board’s card
slot and press it gently until a noise signals locking of the card. Now the board can be powered.
E1803D board is shipped with a card containing firmware and configuration files:

•

e1803.fwi – firmware file that is used to operate the board, to be replaced when a firmware update is
provided;

•

e1803.cfg – configuration text file, can be edited using a text editor in order to modify cards
configuration

•

e1803.dat – additional data file that is used to operate the board, to be replaced when a firmware
update is provided

•

fonts/ – subdirectory containing fonts for dot marker mode

To use an other microSD card than the one shipped with the board, following conditions have to be met:

•

maximum total size of 32 GB (SD or SDHC card)

•

FAT32 formatted

•

using only one partition

•

BOOT-flag is set

•

e1803.fwi and e1803.dat file available on card (e1803.cfg is optional)

An additional file e1803.cfg can be placed on the card too. It contains plain ASCII text, acts as configuration file
and can contain several parameters and its values which are separated by an equal-sign. Every of the possible
parameter/value pairs has to be located in an own line. Following configuration parameters are possible within
this file:

Parameter

Description

Example

adcfreq

Specifies the ADC (analogue digital converter) sampling
frequency. With this value the update rate of the analogue
input (requires an extension board) can be modified. The
higher this value is, the more fast changes of the analogue
input value can be detected. On too big values the analogue
sampling may affect the timing accuracy of the output, thus
this value should be kept as low as possible. The default value
is 5000, the possible range is from 1000 to 3000000.
This parameter requires a firmware version 8 or newer.

adcfreq=10000

set a sampling frequency of

10000 Hz

corrtable0

Specifies a correction table file in .bco, .ctb, .ct5, .ucf, .gcd, .xml
.crt or .txt format to be loaded on start-up. When this
parameter is set, the specified correction table is used
exclusively and all correction data possibly sent from the host
are ignored. The correction file itself has to be located on
microSD-card too. When the Error-LED is turned on after a
correction table file was configured, E1803D board was not
able to load it for some reason.

corrtable0=0:/

D2_200.ctb

use file D2_200.ctb as
correction file and ignore all
correction tables possibly
sent from host application

corrtable<i
dx>

Specifies one of up to 16 correction table file in .bco, .ctb, .ct5,
.ucf, .gcd, .xml .crt or .txt format to be loaded on start-up.
When this parameter is set, the specified correction table is
used exclusively and all correction data possibly sent from the
host are ignored. The correction file itself has to be located on
microSD-card too.
This method has also to be used when running the controller
in stand-alone mode with .EPR files that require such a
correction.
When the Error-LED is turned on after a correction table file
was configured, E1803 baseboard was not able to load it for
some reason.

<idx>

can be any value in range 0..15 and specifies the

storage location index of the correction file to be loaded.
Later the related correction file can be used via command

cscor

When

<idx>

has to be set to values greater than 0, a

firmware version 6 or newer is needed.

corrtable7=0:/200_200

.bco

use file 200_200.bco as
correction file at index
position 7 and ignore all
correction tables possibly
sent from host application

ip0

Configures IP of Ethernet port. Here only IPs in
xxx.xxx.xxx.xxx notation are allowed but no host or domain
names.

ip0=192.168.2.100

specifies IP 192.168.2.100 to
be used for Ethernet interface
on next startup

passwd

Specifies an access password that is checked when card is
controlled via Ethernet connection. This password
corresponds to password specified with function

E180X_set_password()

, please refer below for a detailed

description.
When a client computer connects to the card without sending
the correct password, Ethernet connection to this host is
closed immediately.
PLEASE NOTE: this password does not replace any network
security mechanisms and does not give the possibility to
operate E1803D controller via insecure networks or
Internet! It is transferred unencrypted and therefore can be
"hacked" easily. Intention of this password is to avoid
collisions between several E1803D cards that operate in
same network and are accessed by several software
instances.
Maximum allowed length of the password is 48 characters. It
is recommended to not to use any language-specific
characters.

passwd=myCardPwd

set a password "myCardPwd"

Parameter

Description

Example

standalone

This command can be used to disable or enable a specific
stand-alone operation mode. For a detailed description of
possible parameters, operation modes and usage please refer
related section below.

iolatch

When using one of the digital-input-controlled stand-alone
modes, this option can be used to latch the digital states in via
DIn7. For details please refer to section “7 Stand-Alone
Operation” below

iolatch=1

enable the latch-function via

DIn7

iothres

In stand-alone mode there are two conditions that cause a

loaded EPR file to be ready: it is fully loaded into the
secondary, marking buffer or a minimum amount of data is
available in secondary buffer.
Something similar is true for host-controlled operating mode:
here marking starts when

E180X_execute()

is called or

when a minimum amount of data has been transmitted to the
controller.
That minimum amount of marking data can be modified with
the parameter “iothres”. The smaller this value is, the faster
marking will start, but in this case it also may happen there
are not enough data available so that interruptions occur
during marking. So a balance between speed and a secure,
non-interrupted marking process need to be found when this
value is modified.

By default “iothres” is 80000 which should fit to most
applications, the maximum allowed value is 280000 and it
should not become smaller than 10000

Iothres=120000

Set the threshold for

availability of the stand-alone

marking data to 120000

haltedloopt
imeout

This parameter is used in stand-alone modes “haltedloop” and
“iohaltedloop” (please refer to section “7 Stand-Alone
Operation” for detailed information). It defines a timeout for
the laser in unit seconds. If the current operation is active for
a longer time, the laser is turned off. It then can be turned on
only by toggling the enable-input (ExtStart) again.
This parameter requires firmware version 6 or newer.

haltedlooptimeout=5

sets the laser timeout to 5

seconds

haltedloop
buffer

This parameter is used in stand-alone modes “haltedloop” and
“iohaltedloop” (please refer to section “7 Stand-Alone
Operation” for detailed information). It defines a maximum
buffer size for the marking data. The buffer size should have a
size of 20000000 at max. The minimum size depends on the
specific application, in fact, when it is set to some too small
values, drop-outs in marking operation may occur.
Data which are already buffered in this marking mode can't
be modified any longer. So any change on marking speed,
laser power or similar (done e.g. by commands “

cjsor

”,

“

cmsor

” or “

cpwor

”) will apply only to data which are not yet

buffered. And as bigger as this buffer is, as longer it takes
until the first new data after change of any of these
parameters can be emitted.
This parameter requires firmware version 5 or newer.

haltedloopbuffer=1000

set the buffer to a maximum

size of 100000 commands
which is similar to data for

about 1 second marking time

Parameter

Description

Example

autofile

Loads a special .EPR stand-alone file or .CNC G-Code file from
SD-card in some specific stand-alone modes. For a detailed
description of possible parameters, operation modes and
usage please refer related section below. For a description of
supported G-Code commands, please check out related
section “17 Supported CNC G-Code Commands“

autofile=0:/
markdata.epr

loads a file markdata.epr from

disk; here 0:/ specifies the SD-

card to be used. The .EPR-file

itself can be generated within

BeamConstruct out of a

normal .BEAMP project file

autofile=0:/
markdata.cnc

same as above but a G-Code

file is provided which contains

marking information

iobuff

Pre-loads one or more .EPR files to the RAM of the controller
to allow faster switching in “ioselect” or “idxselect” stand-
alone mode. This command can not be used to load file
“0.EPR”

iobuff=1
iobuff=3

pre-load files 1.EPR and

3.EPR on board start-up

mipout

Configure a Digi I/O output pin to be used as “mark in
progress”-signal by default; here an output bit number in
range 0..7 has to be configured which will be set to HIGH as
long as a marking operation is in progress, the value given
here can be overwritten by API-function

E180X_digi_set_mip_output()

;

this parameter requires firmware version 3 or newer

mipout=1

use DOut1 for mark-in-

progress signal

wetout

Configure a Digi I/O output pin to be used as “wait for
external trigger”-signal by default; here an output bit number
in range 0..7 has to be configured which will be set to HIGH as
long as a marking operation is in progress and the controller
is waiting for an external trigger signal to arrive at ExtStart
input, the value given here can be overwritten by API-
function

E180X_digi_set_wet_output()

;

this parameter requires firmware version 3 or newer

wetout=0

use DOut0 for mark-in-

progress signal

errout

Configure a Digi I/O output pin to be used as “error”-signal by
default; here an output bit number in range 0..7 has to be
configured which will be set to HIGH as soon as a fatal error
occurs that can’t be recovered by the scanner card and that
sets the A/E-LED into a state where it blinks three times fast;
once this output is set, it can be reset only by rebooting the
controller card;
this parameter requires firmware version 20 or newer

errout=2

use DOut2 for the error

output signal

motout

Configure a Digi I/O output pin to be used as “motion in
progress”-signal by default; here an output bit number in
range 0..7 has to be configured which will be set to HIGH as
long as a motion axis of the optional Intelli-IO extension (see
“10 Intelli-IO Extension Board”) board is moving;
this parameter requires firmware version 20 or newer

motout=3

use DOut3 for the motion

active output signal

digiinit

Initialises the digital outputs on firmware start-up with the
given defaults. This overrides the hardware defaults. The
default digital values set here are NOT available on power up
but a few seconds later after firmware has been loaded and
started.
This function requires firmware version 5 or newer.

digiinit=2

set DOut1 to HIGH initially

and all other outputs to LOW

Parameter

Description

Example

digimask

Masks the digital inputs and specifies which inputs can be
read. All input bits which are ignored by this command by
setting the related value to 0, are no longer read. This may be
useful for applications where encoder inputs are used
together with a “ioselect” stand-alone operation and where
the random state of the encoder has to be masked out.
This function requires firmware version 5 or newer.

digimask=253

use only DIn2..DIn7 as input

and ignore DIn0 and DIn1

digidebc

Sets a debouncing time / filter time for the digital inputs of
the digital interface in order to not to let the inputs react on

noise or bouncing of mechanical inputs. The debouncing
value is given in time-units where every time-unit is equal to
31 usec. By default 7 time-units are set.

digidebc=10

set the debounce-time to 310

usec

lasergate

By default, the laser on/off information is provided via the
LaserGate output and with CMOS logic voltage level. With
this parameter, a digital output of the digital interface can be
specified to provide the laser gate signal in parallel.
Please refer to “6.8 Digital Interface” for further details about
the digital interface.
This configuration parameter requires firmware version 14 or
newer

lasergate=3

Use DOut3 to provide the

laser gate signal

u0brate

Set the bitrate of UART0 RS485/RS232 serial interface on
E1803D. By default this port is initialised with a speed of
115200 bps, this value can be changed with this parameter.
Setting an u0brate of 0 disables the serial port completely

u0brate=9600

set a new bitrate of 9600 bps

for UART0 E1803D on-board

serial port

u0bits

Set the number of data bits of UART0 RS485/RS232 serial
interface on E1803D. By default this port is initialised with 8
data bits, this value can be changed to a word length of 5, 6, or
7 bits with this parameter.
This parameter requires firmware version 4 or newer.

u0bits=7

set a new word length of 7

bits for UART0 E1803D on-

board serial port

u0parity

Set the parity of UART0 RS485/RS232 serial interface on
E1803D. By default this port is initialised no parity (=0). For
odd parity a value of 1 has to be set, for even parity a value of
2 has to be used.
This parameter requires firmware version 4 or newer.

u0parity=2

enable even parity for UART0

E1803D on-board serial port

u0stop

Configures the number of stop-bits used within a single
UART0 serial frame:

•

when this parameter is not set or when it is set to 1,
each frame ends with one stop bit

•

when this parameter is set to 2 and when u0bits
configures 5 data bits, each frame ends with 1.5 stop
bits

•

when this parameter is set to 2 and when u0bits
configures, 6, 7 or 8 data bits, each frame ends with 2
stop bits

This parameter requires a firmware version 17 or newer.

u0stop=1

each frame ends with 1 stop

bit

u0bypass

Bypasses the on-board serial port to a specific function, here
following values are possible:
0 – no bypassing, the serial port can be used out of the contro
ldata stream as usual
1 – use as control interface, when set to this value, the on-
board serial port 0 accepts the same commands and data as
the Telnet Ethernet interface and the USB serial port
This parameter requires firmware version 14 or newer.

u0bypass=1

allow control communication

with E1803D via serial port

Parameter

Description

Example

u1brate

Set the bitrate of UART1 RS485/RS232 serial interface on
E1803D Multi-IO Extension Board (deprecated). By default
this port is disabled and has to be activated by setting a
bitrate.
This parameter exists in firmware versions 4 to 13 and
requires a Multi-IO Extension Board.

u1brate=115200

set a new bitrate of 115200

bps for UART1 serial port

u1bits

Set the number of data bits of UART1 RS485/RS232 serial
interface on E1803D Multi-IO Extension Board (deprecated).
By default this port is initialised with 8 data bits, this value

can be changed to a word length of 5, 6, or 7 bits with this
parameter.
This parameter exists in firmware versions 4 to 13 and
requires a Multi-IO Extension Board.

u1bits=7

set a new word length of 7

bits for UART1 serial port

u1parity

Set the parity of UART1 RS485/RS232 serial interface on
E1803D Multi-IO Extension Board (deprecated). By default
this port is initialised no parity (=0). For odd parity a value of
1 has to be set, for even parity a value of 2 has to be used.
This parameter exists in firmware versions 4 to 13 and
requires a Multi-IO Extension Board.

u1parity=1

enable odd parity for E1803D

on-board serial port

busid

This command requires the parameter u0bypass set to 1:
with the busid it is possible to connect several E1803D
controller cards via RS285 serial interface in bus topology.
The identifier in range 0..99 given with this command then
can be used as identifier prior to every c- or d-command in
order to let the correct controller card react on a command.
With the busid set, echoing (command “

cecho

”) is turned off

automatically for the serial interface.
This parameter requires firmware version 16 or higher.

busid=9

Specifies the ID 9 for the

controller card. With this ID

set, all d- and c-commands

have to be preceded by a

string “b09” to let the

controller react on them

tunereadyo
ut

In stand-alone modes, the ready-state of a loaded stand-
alone project is signalled via DOut0 by default (please refer
to section “7.3 Stand-Alone Control” for further details).
Using this parameter, the used output can be changed. Here
following values can be given:

•

0 – DOut0 (default)

•

1 – LaserA (has to be configured as GPO via the
related tune-flag)

•

2 – LaserB (has to be configured as GPO via the
related tune-flag)

This parameter requires firmware version 13 or newer.

tunereadyout=1

use LaserA to signal state

“ready” in stand-alone mode

tunemarko
ut

In stand-alone modes, the ready-state of a loaded stand-
alone project is signalled via DOut1 by default (please refer
to section “7.3 Stand-Alone Control” for further details).
Using this parameter, the used output can be changed. Here
following values can be given:

•

0 – DOut1 (default)

•

1 – LaserA (has to be configured as GPO via the
related tune-flag)

•

2 – LaserB (has to be configured as GPO via the
related tune-flag)

This parameter requires firmware version 13 or newer.

tunemarkout=2

use LaserB to signal state

“ready” in stand-alone mode

tune

Enables special functions and features that are not activated
by default. As parameter a number can be handed over that
specifies the functions to be enabled. Starting with firmware
version 14 the number can also be specified as hexadecimal
value when it is prefixed with “0x”. Several of these functions
can be combined by adding their related numbers:

1 (0x01) – use DIn7 of digital interface connector as external

tune=1

disables ExtStart input and

switches over external trigger

function to DIn7 input

tune=0x1000

operate the scanner output in

XY2-100E mode

Parameter

Description

Example

trigger, this disables ExtStart input on laser signal connector

2 (0x02) – use additional marking encoder inputs on DIn2 and
DIn3 for 2D marking on-the-fly operations

4 (0x04) – enable storage of serial number count values to
microSD card; this option is useful in case of stand-alone
operation mode when dynamic data with serial number
counting is used. When it is set, the current count value of all

used serial numbers is stored and reloaded on next power up.
Thus their values are not get lost when power was turned off.
The values are stored in a file with the same name like the
"autofile" or the currently loaded .epr file but with extension
".ser".
ATTENTION: The file is saved on the FatFS formatted
microSD card. FatFS is NOT fault-proof, means it can be
corrupted when power is turned off during writing. So when
this option is enabled, user has to ensure power is NOT
turned of while the card writes to disk. Writing of serial
number states is always done in case they have changed, then
it is started when Alive/Error LED of E1803D board is
switched off. Write operation is finished when this LED is
turned back on the next time. So to ensure data are written
successfully, it is recommended to let this LED blink two
times after last mark operation has been finished or to wait
for about 4 seconds.
ATTENTION: due to this limitation it is not recommended to
work with this option but to save the state of the serial
numbers by sending ASCII command "

cssta

" instead (please

refer below for details)!

8 (0x08) – invert LaserGate output to work as active HIGH
signal; when this option is set, logic of LaserGate-LED
changes too, it is on as long as laser is turned off and it is off as
long as laser is on

16 (0x10) – invert LaserA output to work as active HIGH
signal

32 (0x20) – invert LaserB output to work as active HIGH
signal

64 (0x40) – use LaserA output as GPO (general purpose
output pin); when this flag is set, LaserA output is no longer
able to emit a frequency but can be used as digital output pin;
when this value is set, a tune-value of 16 (invert LaserA) is
ignored. This flag has to be set e.g. when LaserA has to be
used together with

tunereadyout

tunemarkout

parameter.

128 (0x80) – use LaserB output as GPO (general purpose
output pin); when this flag is set, LaserB output is no longer
able to emit a FPK pulse but can be used as digital output pin;
when this value is set, a tune-value of 32 (invert LaserB) is
ignored.. This flag has to be set e.g. when LaserB has to be
used together with

tunereadyout

tunemarkout

parameter.

4096 (0x1000) – operate in enhanced XY2-100 18 bit mode;

Parameter

Description

Example

tunexy3

Enables special functions and features related to the XY3-
100 scanner interface. The parameters set with this function
are set only when the XY3-100 data protocol is used. They
are submitted after enabling the XY3-100 mode and prior to
first transmission of position data to the connected scanhead.
When the connected scanhead does not support the related
functions, they will not have any effect
This parameter requires a firmware version 38 or newer.

As parameter a number can be handed over that specifies the
functions to be used. Several of these functions can be
combined by OR-concatenating their related numbers:

1 – turn auto-calibration function on (can’t be combined with
flag value 2)

2 – turn auto-calibration function off (can’t be combined with
flag value 1)

4 – turn dynamic temperature compensation on (can’t be
combined with flag value 8)

8 – turn dynamic temperature compensation off (can’t be
combined with flag value 4)

tunexy3=5

Turns on the auto calibration

and dynamic temperature

compensation of a scanhead

sntp0

Allows to specify the IP of an SNTP time server. This option
can be used in case of Ethernet usage to synchronise
controller with an external time source. E1803D tries to
connect to this server after initialisation of Ethernet interface
and – if not successful – a few more times. These additional
connection attempts are done whenever the Alive/Error-LED
is switched on.
ATTENTION: when this function has to be used, the network
or host-computer the controller is connected with needs to
be able to route this request. This is a potentially dangerous
operation because a connection between encapsulated
machine network and open and dangerous Internet has to be
established. Since this is NOT RECOMMENDED in general,
this option should be used ONLY when it is 100% sure there is
no possibility for people from outside to intrude the machine
network! Instead of that is is recommended to set system
time manually using host-computer and ASCII command
"cstime" (please refer below). Alternatively it is also possible
to contact an own, network-internal NTP-server.
When this option is used, the gateway and netmask have to
be configured for the controllers Ethernet interface

sntp0=83.170.1.42

– IP

of time server at

3.de.pool.ntp.org is used for

SNTP time retrieval (not
recommended since this
requires a connection to

potentially dangerous

Internet!)

sntp0offset This value corresponds to sntp0 parameter above, it is used

when system time is retrieved from an external time server to
set an offset to the time returned from this server. The offset
has to be specified in unit seconds.

sntp0offset=-3600

–

specifies an offset of minus

one hour to the time returned

from time-server. So when

the time server would return

a current time of 11:42:17,

the system time of the

controller would be set to

10:42:17 with this value

gw0

Specifies a gateway-address for the scanner controllers
Ethernet interface. This option belongs to parameter "ip0"
and has to be set in case "sntp0" is used.

gw0=192.168.2.1

– use

192.168.2.1 as gateway

Parameter

Description

Example

nm0

Specifies the netmask for the scanner controllers Ethernet
interface. This option belongs to parameter "ip0" and has to
be set in case "sntp0" is used.

nm0=255.255.255.0

– use

upper 24 bits of current IP for

netmask

node0

Specifies the IP of an external HALnode Compact Ethernet IO
module to be used for additional 8 digital in- and outputs
(lower 8 bits of an additional 16-bit IO port). Once
configured, the HALnode’s digital ports are used as they were
a part of the controller. This functionality requires firmware
version 4 or newer.

node0=192.168.1.253

–

use the digital IOs of the

HALnode at the IP

192.168.2.253

node1

Specifies the IP of an external HALnode Compact Ethernet IO
module to be used for additional 8 digital in- and outputs
(upper 8 bits of an additional 16-bit IO port). Once
configured, the HALnode’s digital ports are used as they were
a part of the controller. This functionality requires firmware
version 4 or newer.

node1=192.168.1.252

–

use the digital IOs of the

HALnode at the IP

192.168.2.252

usb

When this parameter is set to 0, USB interface is disabled
completely. This means it is no longer possible to connect to
E1803D USB serial interface via terminal software or via
BeamConstruct and it is also no longer possible to retrieve
BeamConstruct PRO license via USB. This option can be used
to suppress illegal access to USB and saves some power.

usb=0

– turn off USB

interface

eth

This parameter specifies the behaviour of the Ethernet
interface. Here following values can be set:

•

0 – Ethernet network interface is disabled
completely. This means it is no longer possible to
connect to E1803D via Telnet or via BeamConstruct.
All SNTP-functionalities are disabled too. This option
can be used to suppress illegal access to Ethernet, to
save several seconds of startup-time and some
power.

•

1 – this mode enables the Ethernet interface and
checks once at the beginning if some Ethernet
hardware is connected to the controller card; when
the “eth”-parameter is not specified at all, the
resulting behaviour is the same

•

2 – this enables Ethernet polling mode; instead of
checking for an Ethernet device only once during
boot, in this mode the interface is polled regularly
until an electrical connection is detected. As long as
the controller is polling, the A/E-LED blinks very slow
and toggles once in about 20 seconds, when an
Ethernet device was detected, the blink frequency
changes to normal speed;
PLEASE NOTE: when this mode is used, access via
USB is limited, so “eth” should be set to “2” only when
no communication via USB is intended.
The “eth”-value of 2 requires a firmware version 12 or
newer

eth=0

– turn off Ethernet

interface completely

pethd

When Ethernet connection is used, it has to be established on
power-up of the controller card as this connection is set-up
and configured by the controller only once during boot. There
may be situations where the other side of the Ethernet
connection can not boot up as fast as E1803. In such cases
this parameter can be used. It delays initialisation of Ethernet
by the time given as parameter. The time is specified in unit
“delayticks” where one “delaytick” is equal to about 0,5
seconds.
This feature requires a firmware version 7 or newer.

pethd=20

– halt initialisation

of the controller for about 10

seconds prior to initialisation

of Ethernet interface

Parameter

Description

Example

cswaf

Sets a factor in unit bits per mm that is used with all
commands that specify some distance or position (such as
cspof). When this factor is set to a proper value, the given
positions/distances can be specified in unit um instead of bits.
This parameter requires a firmware version 18 or newer.

cswaf=671089

– set the

conversion factor from bits to

mm for a 100x100 mm

working area

cxcnc

Configure the controller to accept G-Code data at the
Ethernet-interface (via Telnet communication) or at the USB-
serial interface instead of regular commands. When this
option is set, the controller can be operated with a stream of

G-Code data. Different to the command “

cxcnc

” (as

described in section “16.2 Stand-Alone Control Commands”
below) this one is permanent, means the G-Code operation
mode stays active also when the current CNC-program is
marked to being complete by the code M2.
This parameter requires a firmware version 20 or newer.

cxcnc=1

enable the G-Code reception

mode for the controller card

dotfont0
dotfont1
dotfont1y
dotdist
dottime

These commands are deprecated and related to matrix laser
dot marking mode. For details please refer related section “8
Matrix Laser Dot Marking Mode” below.

6.5.1 Firmware Update

As described above, the firmware is located on microSD-Card and therefore can be updated easily:

1. remove the microSD-Card as described above
2. download a new firmware from

https://halaser.systems/download/Firmware/E1803/

(the higher the

number in the file name, the newer the firmware is)

3. copy the contents of this ZIP-file to microSD-Card (please take care about e1803.cfg in case it contains

a changed configuration)

4. reinsert microSD-Card as described in previous section

6.6 Scanner Signals

The 26 pin connector provides signals to be used to control up to three galvos of a scanhead and to power it up.

The connector provides following signals when operated in XY2-100, XY2-100E, XY2-200 or XY2-200E mode:

Upper

Row

Pins

Signal

Voltage

Remarks

Lower

Row

Pins

Signal

Voltage

Remarks

CLK-

XY2-100-
compatible signals

CLK+

XY2-100-
compatible signals

SYNC-

SYNC+

X-

X+

Y-

Y+

Z-

Z+

STATUS-

STATUS+

+12..24V

Power supply to
scanhead (output)

+12..24
V

Power supply to
scanhead (output)

+12..24V

GND

-V

-12..24V

-V

-12..24V

-V

-12..24V

The D-SUB25 connector provides the same signal as described above on a default XY2-100 connector:

CLK-

SYNC-

X-

Y-

Z-

STATUS-

+V
+V

GND

-V
-V

CLK+
SYNC+
X+
Y+
Z+
STATUS+

+V
GND
GND
-V

The connections -V, GND and +V can be used to power the scanhead with 12..24V and

max. 3A

. This requires a

bipolar external power supply connected to the controllers three-pin power connector described above. Power
from this power connector is routed to the -V, GND and +V pins directly, so the provided voltage should be
stabilised according to the requirements of the scanhead.

PLEASE NOTE:

•

do not connect scanheads that consume more than 3A (peak and continuously), this may damage the
controller and voids warranty!

•

do not feed more than 24V into the three-pin power connector of E1803!

•

feed a stabilised voltage into E1803D controller according to requirements of connected scanhead!

•

when E1803 card is powered via three-pin power connector but scanhead has not to be powered out of
the card, the 9 lines for -V, GND, +V (9..13 and 22..25) need to be disconnected, means the used D-
SUB25 cable needs to leave these pins open!

•

Violating one of these rules may damage the E1803D card or scanhead irreversibly!

E1803D can be configured to work in XY3-100 mode too. This configuration requires a firmware version 10 or
newer for 2D XY3-100 signals and a firmware version 11 or newer for 3D XY3-100 signals. The scanner signal
connector provides following signals when operated in XY3-100 mode:

Upper

Row

Pins

Signal

Voltage

Remarks

Lower

Row

Pins

Signal

Voltage

Remarks

A-

XY3-100-
compatible signals

A+

XY3-100-
compatible signals

B-

B+

C-

C+

D-

D+

E-

+12..24V

Power supply to
scanhead (output)

+12..24
V

Power supply to
scanhead (output)

+12..24V

GND

-V

-12..24V

-V

-12..24V

-V

-12..24V

The D-SUB25 connector provides the same signal as described above:

A-
B-

C-

D-

E-

+V
+V

GND

-V
-V

A+
B+
C+
D+
E+

+V
GND
GND
-V

The connections -V, GND and +V can be used to power the scanhead with 12..24V and

max. 3A

. This requires a

PLEASE NOTE:

•

do not connect scanheads that consume more than 3A (peak and continuously), this may damage the
controller and voids warranty!

•

do not feed more than 24V into the three-pin power connector of E1803!

•

feed a stabilised voltage into E1803D controller according to requirements of connected scanhead!

•

Violating one of these rules may damage the E1803D card or scanhead irreversibly!

6.7 Laser Signals

The 26 pin connector provides several signals to be used to control a laser source. It can be used e.g. together
with YAG, CO

, IPG™, SPI™, fiber and compatible lasers since it provides additional signals and frequencies

these laser types may require for proper operation.

The connector provides following signals:

Upper

Row

Pins

Signal

Voltage

Remarks

Lower

Row

Pins

Signal

Voltage

Remarks

LP8_0

CMOS, 0/5V,
max 8 mA

GND

LP8_1

CMOS, 0/5V,
max 8 mA

Pilot

CMOS, 0/5V,
max 8 mA

Pilot laser
control

LP8_2

CMOS, 0/5V,
max 8 mA

Output

LP8_3

CMOS, 0/5V,
max 8 mA

Main Oscillator

LP8_4

CMOS, 0/5V,
max 8 mA

LP8_5

CMOS, 0/5V,
max 8 mA

AOut0

0..10V, max
15 mA

Analogue
output

LP8_6

CMOS, 0/5V,
max 8 mA

AOut1

0..10V, max
15 mA

Analogue
output

LP8_7

CMOS, 0/5V,
max 8 mA

ExtStart CMOS, 0/5V

Input control
signal

LP8
Latch

CMOS, 0/5V,
max 8 mA

LaserB CMOS, 0/5V,

max 14 mA

FPK

Connected to
pin 21

Connected to pin
20

LaserA

CMOS, 0/5V,
max 14 mA

PWM,
frequency or Q-
Switch

GND

ExtStop

CMOS, 0/5V

Input control
signal

Output

Laser
Gate

CMOS, 0/5V,
max 14 mA

requires hardware revision 1.8 or newer and firmware version 19 or newer

LP8_0...LP8_7 provide a parallel 8 bit output signal (e.g. for power control with IPG™/fiber lasers, waveform
selection for SPI™ lasers and other).

LP8 Latch pin signals valid output at LP8_0..LP8_7 by submitting a latch pulse of software-controlled length.

MO can be used to enable main oscillator (e.g. for IPG™/fiber lasers or compatible), this signal is also visualised
by the MO LED described above.

LaserA usage depends on software configuration and control, it is able to output a pulse-width modulated
frequency (e.g. for controlling CO2 lasers), CW/continuously running frequency (e.g. for fiber lasers) or Q-
Switch signal (e.g. for YAG lasers) in range 25 Hz..20 MHz.

LaserB can be used for emitting a FPK pulse (e.g. for YAG lasers).

AOut0 and AOut1 provide unipolar analogue output for controlling e.g. laser power or additional equipment or
can be used for controlling power and simmer for SPI™ lasers.
PLEASE NOTE: output of 10V at AOut0 and AOut1 depends on the used power supply. So in case board is
powered via USB, these outputs do not work, they require an external power supply via three-pin power
connector described above.

ExtStart expects a CMOS-level input signal in respect to GND and can be used as external trigger signal to start
operations when a HIGH-signal is detected at input pin.

ExtStop expects a CMOS-level input signal in respect to GND and can be used as external stop-signal in order
to stop a running marking operation by using a HIGH-signal at input pin.

6.8 Digital Interface

This interface consist of different parts which belong together:

1. a 20 pin connector for connecting digital in- and output signals
2. two red jumpers to select opto-insulated or internal powered mode for the digital in- and outputs
3. 4 green and 4 red LEDs which signal the state of the digital outputs
4. 8 yellow LEDs which signal the state of the digital inputs (with hardware revisions prior to v1.7 these

LEDs have been green)

The 20 pin connector provides 8 lines for input and 8 lines for output of digital signals that can work on CMOS
level (non-insulated mode) or via opto-couplers (electrically insulated mode with external power supply)
optionally. The operation mode depends on jumper settings described below. The connector is used as follows:

Upper

Row

Pins

Signal

Voltage

Remarks

Lower

Row

Pins

Signal

Voltage

Remarks

ext

5..24V

Input voltage to
be used in opto-
insulated mode
only

GND

ext

GND

External ground

DOut0

CMOS, 0/5V
or 0/V

ext

Default level:
LOW

DIn0

CMOS, 0/5V
or 0/V

ext

Encoder-input A1
for marking on-
the-fly

DOut1

CMOS, 0/5V
or 0/V

ext

Default level:
LOW

DIn1

CMOS, 0/5V
or 0/V

ext

Encoder-input B1
for marking on-
the-fly

DOut2

CMOS, 0/5V
or 0/V

ext

Default level:
LOW

DIn2

CMOS, 0/5V
or 0/V

ext

Encoder-input A2
for marking on-
the-fly

DOut3

CMOS, 0/5V
or 0/V

ext

Default level:
LOW

DIn3

CMOS, 0/5V
or 0/V

ext

Encoder-input B2
for marking on-
the-fly

DOut4

CMOS, 0/5V
or 0/V

ext

Default level:
HIGH

DIn4

CMOS, 0/5V
or 0/V

ext

DOut5

CMOS, 0/5V
or 0/V

ext

Default level:
HIGH

DIn5

CMOS, 0/5V
or 0/V

ext

DOut6

CMOS, 0/5V
or 0/V

ext

Default level:
HIGH

DIn6

CMOS, 0/5V
or 0/V

ext

DOut7

CMOS, 0/5V
or 0/V

ext

Default level:
HIGH

DIn7

CMOS, 0/5V
or 0/V

ext

Board output
voltage, to be
used only when
not operating in
insulated mode

GND

Board-internal
ground

Please note the wiring scheme and the resulting, inverted logic below: a level of LOW means, the output is

pulled to GND and a load that is connected from V to this pin is turned on. An level of HIGH means, the output is
pulled to V and a properly wired load if turned off.

ext

and GND

ext

depend on opto-configuration as described below. In opto-insulated mode (opto-configuration

jumpers not set) external power supply has to be connected to these inputs. Then DIn0..DIn7 and
DOut0..DOut7 work in respect to this external power.
WARNING: When no opto-insulated mode is selected (opto-configuration jumpers are set), do NOT FEED ANY

POWER into V

ext

, this would cause damage to the E1803D board! In this case V

ext

is equal to V (5V) of the board

and GND

ext

is connected to boards ground GND.

Maximum current for every output is 15 mA when internally powered (non-insulated mode), here it is
recommended to use an external power supply.
Maximum current for outputs DOut0..DOut3 is 50 mA when externally powered (V

ext

in insulated mode).

Signal output lines DOut0..DOut7 operate in open collector mode and have to be wired as follows:

Here “DOutx” symbolises one of the digital outputs DOut..DOut7. V+ is either V (5V internal, non-insulated
mode) or V

ext

(up to 24V external, insulated mode). GND is either GND (non-insulated mode) or GND

ext

(insulated mode). The internal resistor of the connected device is not allowed to have less than 490 Ohms in
order to not exceed the given current limits.
DOut0..DOut3 provide LOW signal level by default, DOut4..DOut7 provide HIGH level by default. These levels
are valid immediately on power-up of the card.

The DOut-lines make use of following logic:

Signal

LED

LED turned on

on output level

Default output

level on power-up

DOut0

red

HIGH

LOW

DOut1

red

HIGH

LOW

DOut2

red

HIGH

LOW

DOut3

red

HIGH

LOW

DOut4

green

LOW

HIGH

DOut5

green

LOW

HIGH

DOut6

green

LOW

HIGH

DOut7

green

LOW

HIGH

6.8.1 Marking On-The-Fly Signals

Digital inputs 0 and 1 (and optionally 2 and 3) can be used as position encoder signal inputs for marking on-the-
fly applications. Here 90 degree phase-shifted input pulses are expected signalling motion direction and
position change:

When these pulses are generated from a motion stage that moves the working piece, the resulting position
information is used in marking on-the-fly mode to correct the marking positions accordingly. Resulting from
that, marking will follow motion as far as available scanhead range and working area allows it.
The pulses generated out of the encoder signals have to be multiplied with a factor reflecting the resolution of
the used encoder. To set up and adjust a marking on-the-fly-system properly, following steps have to be
performed:

1. Connect encoder signals A and B to DigIn0 and DigiIn1 and configure E1803D controller for encoder

usage (either from within BeamConstruct or via programming interface as described below)

2. Mark a square without any encoder signals feed into the controller
3. When the square does not have exact size and/or is distorted, modify correction table and/or gain

settings

4. When the square has correct size, mark it again but now with a slow motion (using encoder pulses)
5. When the square is damaged (means open on one side or compressed) the on-the-fly-factor has to be

changed (set to a smaller or higher value)

6. Mark the same square again with a fast motion (using encoder pulses)
7. When the square is damaged (means open on one side or compressed) the on-the-fly-factor has to be

changed (set to a smaller or higher value)

The on-the-fly-factor controls the strength of compensation and is the relation between speed of external
device/encoder pulses and card-internal compensation calculation. When this factor is wrong, the marking
results are distorted. For a square (as recommended to be used in calibration steps above) following results are
imaginable:

The left drawing shows an over-compensated system, here the internal compensation is too strong, the factor is
too big. The right drawing shows an under-compensated set-up, here the factor is too small causing a too weak
compensation. Only when marking result is really a square, the on-the-fly-factor is correct.

When tune-flag 2 is set, a second encoder can be used for 2D marking on-the-fly applications. In this mode
digital inputs 0 and 1 (encoder inputs A1 and B1) correspond to X axis and on-the-fly factor for X direction.
Additionally digital inputs 2 and 3 (encoder inputs A2 and B2) correspond to Y axis and on-the-fly factor for Y
direction. Operation principle is the same as for 1D on-the-fly described above: the incremental values received
from the encoders for X and Y are added to the current X and Y coordinates to be marked. Procedure for

adjusting the encoder factor is also the same, here it is recommended to perform this operation for X and Y
movements separately and finally try both motion directions together.

6.8.2 Opto-Configuration Jumpers

Using these jumpers the operation mode for digital I/Os 0..7 can be chosen:

Opto-mode 2, both jumpers set: not galvanically insulated, internally
powered, using common ground (external ground GND

ext

is connected with

internal ground)

DO NOT CONNECT EXTERNAL POWER V

ext

Digital outputs: 5V (internal)

Digital inputs: 5..24V in respect to GND and GND

ext

Opto-mode 1, lower jumper set: not galvanically insulated, using common
ground, external ground GND

ext

is connected to internal ground, external

power V

ext

in range 5..24V has to be applied

Digital outputs: 5..24V (V

ext

)

Digital inputs: 5..24V in respect to GND and GND

ext

Opto-mode 0, no jumpers set: galvanically insulated (fully opto-coupled
mode), external ground GND

ext

is separated from internal ground, external

power V

ext

in range 5..24V has to be applied

Digital outputs: 5..24V (V

ext)

)

Digital inputs: 5..24V in respect to GND

ext

6.8.3 Output State LEDs

The green and red LEDs close to the connector signal the output state of the digital outputs. As shown in table
above, four outputs have default state LOW (non inverted) and four have default state HIGH (inverted). The
same is signalled by these green/red LEDs, they are on/off for output state HIGH/LOW. So please note: one of
the output LEDs turned on does NOT necessarily mean the output is at HIGH level, this depends on the output
and its corresponding default output level/output logic!

6.8.4 Input State LEDs

These 8 yellow LEDs show the state of corresponding 8 digital inputs. As long as a HIGH signal is detected on an
input, the related LED is turned on.

6.9 Serial Interface

This is an 8 pin connector which provides access to UART0 RS232 and RS485 connection lines.
PLEASE NOTE: both, the RS232 and the RS485 interface are connected to the same serial interface internally!
This means although there are two interface types available, only one logical serial line exists! Connecting two
signal lines to RS232 and RS485 at the same time may damage the board irreversibly!

Upper

Row Of

Pins

Signal

Voltage

Remarks

Lower

Row Of

Pins

Signal

Voltage

Remarks

RX0

max +-28V UART0 RS232

TX0

+-7V

UART0 RS232

GND

Do not connect!

RX0+

+5V

UART0 RS485

RX0-

-5V

UART0 RS485

TX0+

+5V

TX0-

-5V

6.10 Extension Connectors

These connectors can be used to plug additional boards which provide new functions and additional interfaces.
For a detailed description of available boards please refer below.

The two extension connectors on left hand side of the board can be used to place extension boards with
additional peripheral interfaces. The extension connectors are designed to place/remove boards from time to
time but they are not intended for constant hardware changes.

So changing extension boards repeatedly and often

e.g. as permanent part of a production process is not recommended.

PLEASE NOTE: when placing a new extension board
1.check correct orientation and position of the code pin which is closed in connector
2.place the pins of the extension boards onto the extension connectors exactly
3.move down the extension board by pressing on its extension connectors gently; DO NOT PRESS THE BOARD
ITSELF BUT ONLY THE CONNECTORS!

PLEASE NOTE: When removing an extension board DO NOT pull on the extension connectors but hold both
boards on their long side directly at the PCBs edges!

Due to of the large number of pins, it is easy to plug in an extension but more difficult to pull it out. So when
removing an extension board, it is recommended to be very slow and to carefully pull each side up just a little bit
to avoid bending of the pins as they exit.

7 Stand-Alone Operation

E1803D scanner controller cards can be operated in stand-alone mode. In this mode all marking data are stored
on microSD-card and the board can operate without direct control of a host-PC that sends the data to be
marked. Such stand-alone marking data can be created e.g. in BeamConstruct marking software.

The names of these stand-alone files have to be in format 8.3, means the filename has to consist of eight
characters at max, followed by a file extension which consists of 3 characters. The base-stand-alone file comes
with a file-extension .EPR. In case the stand-alone file contains dynamic data, a second file with the same
filename but the extension .DAT is created (for details about dynamic stand-alone data please refer to section
“7.1 Create Stand-Alone Data with BeamConstruct”). When a stand-alone-mode of type “ioselect” is used, the
filename has to follow some specific rules too, here it typically has to be a number which corresponds to the
selection done at the digital inputs (for details about the different stand-alone modes and their behaviour
please refer to section “7.2 Stand-Alone Configuration Parameters”).

7.1 Create Stand-Alone Data with BeamConstruct

To use BeamConstruct for generation of stand-alone data for E1803D scanner controllers, the card has to be
fully configured (including all scanner, laser and pen-parameters). Next the marking data to be stored on
microSD-card have to be created. To generate stand-alone data, menu "Processing", submenu "Write Marking
Data to File" or "Send Named Marking Data" has to be selected.

First one gives the possibility to write the data to microSD card when E1803D is switched off and the microSD
card is plugged into host PC. Here it is recommended to use file extension ".EPR" for the file generated by
BeamConstruct. Next it is also recommended to always let BeamConstruct write to microSD card directly
because sometimes more than only one file is created. Direct write operation to BeamConstruct ensures all
files are available on microSD and no data can be forgotten to be copied.

The second variant allows to download the stand-alone data to the controller while it is connected and running.
Precondition for sending data to a running controller are:

•

no mark operation is in progress (controller is idle)

•

no stand-alone project is loaded (please refer to description of stand-alone modes and control
commands below).

•

a valid name is given in style 0:/filename.epr

This operation creates the .EPR-file and all additional files on microSD card of the running controller
automatically.

PLEASE NOTE: such an .EPR-standalone file can NOT be converted back to vector data that could be edited in
BeamConstruct! Creating these files is a one-way-conversion of your projects. Thus it is recommended to save
these projects twice – once as normal .BEAMP-File which can be loaded and modified later and once as .EPR-
file which has to be used on SD-card. This also means such .EPR-files are protected so that it is possible to give
away own designs to some end-users which shall not be able to modify them.

E1803D controller supports all static data in stand-alone mode (like all kinds of static geometries, output
signals, waiting for input commands, waiting for trigger, all laser- and scanner parameters as well as elements
which set outputs directly). But it does not store the vector data using a possibly configured correction table!
To get a valid correction for stand-alone operations, the related correction file has to be saved on microSD card
and needs to be activated using parameter "corrtable0" in e1803.cfg configuration file (please refer to
description above).

Next E1803D scanner card supports dynamic content when following conditions are met:

•

a text element uses one of the laser vector font families "Roman", "Script" or "Times" and it makes use

of an input element or

•

a text element makes use of a TrueType font and it makes use of an input element; here any available
TrueType font can be used and several hatch-patterns can be applied

for both types of text some limitations apply (only left t

→

o right orientation, no

scaling/rotation/slant/mirroring is applied to the font and only the characters

' ', !, ", #, $,

%, &, \, (, ), *, +, ,, -, ., /, 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, :, ;, <, =,
>, ?, @, A, B, C, D, E, F, G, H, I, J, K, L, M, N, O, P, Q, R, S, T, U, V,
W, X, Y, Z, [, \, ], ^, _, `, a, b, c, d, e, f, g, h, i, j, k, l, m, n, o,
p, q, r, s, t, u, v, w, x, y, z, {, |, }

and

can be used, firmware version 3 or newer

is required, BeamConstruct version 4.8 or newer is required); or

•

a barcode element uses type "DataMatrix" or “QR” with option "Merge cells" disabled and it makes use
of an input element

•

any kind of hatch and combined hatches can be applied to a barcode element, not to a text element

•

marking output is neither XY-flipped nor mirrored nor rotated or slanted

•

when an input element of type “Serial Number” is used, serial number counting is done according to the
settings of the related element

•

when an input element of type “CSV File Data” is used, elements out of a CSV-table can be read and
used for the dynamic element:
the CSV-file itself needs to be placed on the SD-card and has to use the same name like the EPR file but
with extension CSV (so when the stand-alone file is named “data.epr”, the CSV-file needs to be named
“data.csv”), resulting from that one EPR file can handle exactly one CSV file;
supported parameters of the CSV input element are the column separator, the data column to read the
data from and the “Endless loop” option (for details please refer to the manual of BeamConstruct);
this feature requires a firmware version 13 or newer

•

when any input element is used, the contents of the text/barcode can be changed via command
“

cstxt

”, in this case the automatic updating of the input element has no effect

When these conditions are met, a text or barcode can be modified during stand-alone operation either via
stand-alone control commands as described below or via a Serial Number input element that is applied to it in
BeamConstruct. Here all serial number, time, date and formatting functions of this input element are
supported. To get a valid time in stand-alone mode, it needs to be set after boot-up via stand-alone control
commands (as described below) or a SNTP time server has to be configured to retrieve current time from an
external source (please refer to description e1803.cfg parameters above).

7.2 Stand-Alone Configuration Parameters

Within e1803.cfg configuration file of E1803D scanner controller one of the following stand-alone operation
modes can be selected via the configuration parameter "

standalone

standalone=off

Stand-alone mode is fully disabled, the card acts as normal host-PC-controlled device and all .epr-files on the
SD-card are ignored. Digital outputs are not toggled since no stand-alone operational states have to be
signalised here (please refer next section).

standalone=dotmark

This is a special stand-alone marking mode where E1803D controller card acts as dot matrix marker. It is
available in firmware versions 5 or earlier only. For details please refer section “8 Matrix Laser Dot Marking
Mode“ below.

standalone=auto

Stand-alone mode is enabled, a file specified by and additional parameter "autofile" is loaded and prepared for
marking. Marking of this file is started only when an external trigger signal is detected. The file itself has to be
specified via additional configuration parameter that gives the filename of the stand-alone file to be loaded. As
an example a parameter: "

autofile=0:/myfile.epr

" would try to load the file "myfile.epr" from SD-card

and prepare it for marking. In this mode the digital outputs are toggled as described in next section.

standalone=loop

This is the same like mode "auto" described above but using "loop" E1803D controller does NOT wait for an
external trigger signal! So when no trigger points are set in stand-alone datafile itself, in this mode marking
would be done in an infinite loop, repeating the given "

autofile

" again and again.

standalone=haltedloop

This is the same like mode "loop" described above, but marking does not start immediately. By default the
controller is in state “halt” until the ExtStart input is set to HIGH level. Marking continues only as long this input
stays at HIGH. When it goes back to LOW, marking is continued until the laser is turned off the next time and it
is halted again. Next time ExtStart goes to HIGH, marking continues at the position where it was halted before.
In this mode the timeout-parameter “

haltedlooptimeout

” can be used.

standalone=iohaltedloop

This mode is a combination out of "haltedloop" described above and “ioselect” described below (please refer
there for usage details). In this mode a project can be selected via digital inputs but it is started immediately and
marked in an endless loop as long as ExtStart input is HIGH (so the level at ExtStart is checked, not the rising
edge of an applied signal). When a different project is selected by applying a different input pattern at DIn
digital inputs, the current project is cancelled and the new one is started in a loop again.
This mode requires firmware version 2 or newer.
In this mode the timeout-parameter “

haltedlooptimeout

” can be used.

standalone=ioselect

This mode makes use of the digital interface (please refer above). Here it is possible to select one of 256 stand-
alone marking jobs via a signal the digital inputs. The number that results out of the input pattern of the digital
input lines specifies the filename of the marking job that has to be loaded from SD card:

Selected input(s)

Stand-alone file loaded from SD-card

All inputs set to LOW (not recommended to be used)

0.epr

DIn0 set to HIGH

1.epr

DIn1 set to HIGH

2.epr

DIn0 and DIn1 set to HIGH

3.epr

DIn2 set to HIGH

4.epr

DIn0 and DIn2 set to HIGH

5.epr

DIn1 and DIn2 set to HIGH

6.epr

DIn0, DIn1 and DIn2 set to HIGH

7.epr

DIn3 set to HIGH

8.epr

…

DIn4 set to HIGH

16.epr

…

DIn5 set to HIGH

32.epr

…

DIn6 set to HIGH

64.epr

…

DIn7 set to HIGH

128.epr

…

All inputs set to high

255.epr

PLEASE NOTE: 0.epr (no inputs set to HIGH) can be used but it is not recommended to do that. This value
should be reserved for "no job active" to set the card into an inactive mode also in stand-alone operational
mode. This may be necessary e.g. when new project data are downloaded to the controller without removing
the SD-card.

Marking of a IO-selected job is started by external trigger signal (ExtStart input). When the input pattern at
DIn0..DIn7 changes during marking, the currently running operation is continued and the other stand-alone job
is loaded after marking operation has finished. In this mode the digital outputs are toggled as described in next
section.

In stand-alone mode “ioselect” or “idxselect” .EPR-files are loaded from microSD card as soon as a new input
pattern is detected at digital inputs or as soon as a new index is selected with command “clepr”. Depending on
the size of the .EPR file and the speed of the microSD card, this may take a time that is too long for high-speed
applications. Thus it is possible to operate such projects from controller's RAM completely: in e1803.cfg the
numbers of the files to be loaded have to be specified with parameter “iobuff”, it can be used up to 20 times and
expects the number of the file (so a line “iobuff=3” would be responsible for pre-loading file “0:/3.epr”). File
“0.epr” can not be preloaded by this command.

Now these files are loaded into RAM and switching from one to an other is done much faster since toggling
between them is done controller-internal and no more disk-operations are necessary for that.
PLEASE NOTE: when too much too large .EPR files are selected for preloading, this may exceed the available
memory on card. This is signalled by the Error LED turned on and an appropriate message is stored in log buffer.

standalone=idxselect

This mode works exactly like the mode “ioselect” (described above), but it does not occupy any digital inputs.
Instead of that, loading of a file can be done via an index number and the command

clepr

. There the number of

the file to be loaded has to be given. For a full description of all functions and features of mode “idxselect”,
please refer the “ioselect” description above.

This stand-alone mode requires a firmware version 8 or newer.

iolatch=1

This option can be enabled for one of the digital-input-controlled stand-alone modes “ioselect”, “idxselect” and
“iohaltedloop”. When this option is set to 0 or when it does not exist in e1803.cfg, the digital input bitpattern at
DIn0..DIn7 is used as new input value as soon as it is detected. When it is enabled, DIn7 is used as latch-bit.
Then the digital input bitpattern at DIn0..DIn6 is used only when DIn7 is set to HIGH. So a proper method of
selecting a digital input bitpattern with latch enabled would be:

•

ensure DIn7 is at LOW

•

apply the desired bitpattern at DIn0..DIn6

•

wait for the maximum time the input bits may need to settle (depends on the external hardware and its
capabilities)

•

set DIn7 to HIGH

•

wait until DOut0 goes to LOW

•

wait until DOut1 goes back to HIGH (when a valid bitpattern was applied that corresponds to an
existing EPR file) or until loading timeout has elapsed (when a bitpattern has been applied where no
EPR file exists for

•

set DIn7 to LOW

So as long as DIn7 is at low, state-changes at DIn0..DIn6 are ignored and the last detected bitpattern is used. In
this mode only 127 different input bitpatterns are possible as DIn7 is used as latch bit.
This function is available in firmware versions 11 or newer.

7.3 Stand-Alone Control

The current stand-alone operational state is signalised via digital outputs:

DOut0

– ready for marking – this output goes to HIGH as soon as a stand-alone job could be found on disk, was

loaded successfully and is ready for marking. So external start signal should not be given until this output is
HIGH. When a new stand-alone file is selected (e.g. via digital inputs in "

ioselect

"-mode) this output goes to

LOW. It is switched back to HIGH only when the new file could be loaded successfully too.
This signal can be mapped to a different hardware output using configuration parameter

tunereadyout

and

the related tune-flag.

8 Matrix Laser Dot Marking Mode

Please note all functions described in this chapter are deprecated. They are available only for firmware version
5 or older. Before using these functions in new products, please contact HALaser Systems!

The E1803D controller card can be operated in a special mode where it does not make use of XY2-100
interface but acts as dot marker for matrix marking applications. Here a matrix laser, a dot peen or an other
matrix printing device can be used. The dots are controlled via digital outputs turning the related dot on and off:

The controller works in stand-alone mode with no laser marking software connected to it. The objects to be
marked have to be moved (2, from right to left in image above) and the movement information is feed into the
controllers encoder inputs A1 and B1 of digital interface connector (for description please refer to section
6.8.1). Depending on the current position, the related dot-outputs are turned on and off marking one column on
every distance step (3 symbolises the dot marking device in image above, red dots are lasers which are firing for
the current column). This way the motion of the working piece forms up to two separate lines of text to be

marked (1 in image).

8.1 Dot Mode Configuration Parameters

Within e1803.cfg configuration file of E1803D controller card the dot marking mode has to be configured by
using different parameters:

Parameter

Description

Example

standalone

When set to “

dotmark

” this parameter enables the dot

matrix marking mode. This is mandatory to use the
following parameters, elsewhere they do not have any
effect on the operation of the card.

standalone=dotmark

Enables the dot matrix

marker mode of E1803D

dotfont0

Specifies which font has to be used. The font size specifies
how much of the max. 13 dots are used. All the available
fonts are stored on microSD-card in sub-folder “fonts”. Own
fonts can be added to this, please contact HALaser Systems
for details.
This parameter is mandatory, for a single line of text it
specifies the font for this line, when two lines of text have
to be marked, it specifies the font for the upper line.

dotfont0=0:/fonts/

mono7.dfn

load the 7 pixels high, mono-

spaced font “mono7.dfn” out

of the “fonts”-folder of

microSD-card

dotfont1

Specifies which font has to be used for the (optional)
second line.
This parameter is optional and has to be set only when two
lines of text have to be marked below of each other. It
specifies the font for the lower line.
When the second line is used, parameter “dotfont1y” has to
be set too.

dotfont1=0:/fonts/

straig6.dfn

load the 6 pixels high, mono-

spaced font “mono6.dfn” out

of the “fonts”-folder of

microSD-card

dotfont1y

When two lines of text are marked this parameter specifies
the y-offset of the second line (in unit dots). Using it vertical
the position of the lower text line has to be set.

dotfont1y=7

sets an Y-position of 7, means

the upper border of the

second (optional) text line will

start at Dot7 output

dotdist

This parameter specifies the horizontal distance between
two columns of dots. The value given here is in unit
“increments” of connected encoder.
When the value is positive, the encoder has to be

dotdist=7500

starts a new column of dots

whenever 7500 encoder

increments have elapsed

connected in a way where it counts to positive direction. In
this case the text is marked from left to right, motion has to
be done from right to left.
When the value is negative, the encoder has to be
connected in a way where it counts to negative direction. In
this case the text is marked in reverse direction from right
to left (mirrored in horizontal direction) and the motion of
the working pieces need to have a suitable movement
direction in order to have the expected results and no
mirrored texts.
The encoder counting direction has to fit to the
configuration. When it works in wrong direction, only the
first column of a text is marked, then nothing happens for a
very long time. In this case it is necessary to exchange the
two encoder lines connected to A1 and B1 in order to
correct the counting direction.

dottime

Specifies how long the dots have to be turned on at
maximum. The value has to be given in unit nanoseconds
and has a resolution of 500 nsec. When no dot-time is
specified, turned on dots stay on until the motion has made
enough progress to switch on the next row of dots. So in
this case when the motion stops, the already turned on dots
stay on endless.

dottime=20000

turn off the dots latest after

20 usec

8.2 Dot Mode Hardware Interface

In dot matrix marking mode the laser connector is used to control the single dots. As soon as stand-alone mode
“dotmark” is enabled, pinout of this connector is different:

Upper

Row

Pins

Signal

Voltage

Remarks

Lower

Row

Pins

Signal

Voltage

Remarks

Dot0

CMOS, 0/5V,
max 8 mA

GND

Dot1

CMOS, 0/5V,
max 8 mA

Dot2

CMOS, 0/5V,
max 8 mA

Output

Dot3

CMOS, 0/5V,
max 8 mA

Dot10

CMOS, 0/5V,
max 8 mA

Dot4

CMOS, 0/5V,
max 8 mA

Dot5

CMOS, 0/5V,
max 8 mA

Do not connect!

Dot6

CMOS, 0/5V,
max 8 mA

Do not connect!

Dot7

CMOS, 0/5V,
max 8 mA

ExtStart CMOS, 0/5V

Input control
signal

Dot8

CMOS, 0/5V,
max 8 mA

Dot9

CMOS, 0/5V,
max 14 mA

Connected to
pin 21

Connected to pin
20

Dot11

CMOS, 0/5V,
max 14 mA

GND

ExtStop

CMOS, 0/5V

Input control
signal

Output

Dot12

CMOS, 0/5V,
max 14 mA

Dot0 is always the uppermost dot. Usage of all other dots depends on the height of the used font. So when a
font with a size of 8 is chosen, the dots Dot0..Dot7 are used.
The dot-outputs are switched to HIGH signal whenever a dot has to be marked. This behaviour can be changed
by setting the “

tune

”-parameter to value 8 (for details please refer section 6.5 above), then they are inverted

and are set to HIGH when they are off.
The ExtStart input is used to start marking of one line of predefined text.
Dots can be toggled with a maximum frequency of 2 MHz.

8.3 Dot Mode Control

The dot matrix marking mode is a stand-alone operation mode which can be controlled from outside easily.
After proper configuration of the related parameters in e1803.cfg, data to be marked can be sent to the card via
commands “

cdtl0

” and optional “

cdtl1

” (for a more detailed description of this command interface please

refer to section 16.2 below). This command can be used to enqueue several texts in advance. On every rising
edge on ExtStart input output of the next text in queue is started according to the current encoder position.

During operation the current dot mode stand-alone operational state is signalised via digital outputs:

DOut0

– ready for marking – this output goes to HIGH as soon as some text was received which can be marked

in dot mode. So external start signal to should not be given until this output is HIGH. When no more data are
available to be marked or when marking is currently in progress, this output goes to LOW.
When dot mark mode is configured to use one line of text only (parameter

dotfont1

not set), the controller

becomes ready for marking as soon as at least one text is available (to be set with command “

cdtl0

”).

When dot mark mode works using two lines of text (parameter

dotfont1

set), the controller always requires

pairs of data, means it becomes ready for marking only when text for two lines is available (to be set with both
commands “

cdtl0

” and “

cdtl1

”).

DOut1

– marking active – as long as this output is HIGH, a marking operation is in progress. During this time it

is still possible to feed new marking data via commands “

cdtl0

” and “

cdtl1

”, this does not influence the

current operation.

9 Multi-IO Extension Board

This board is deprecated and should not be used any more.

The controller card can be extended by the Multi-IO board which utilitises the extension connector as
described in section “6 Board And Connectors”.
To operate the controller with the Multi-IO Extension Board, firmware version 4 or newer is needed.

9.1 Board Connectors

The E1803D Multi-IO Extension Board provides following connectors and interfaces:

1. Multi-IO-connector offering different signals and interfaces including a secondary XY2-100(E)/XY2-

200(E)/XY3-100 interface, analogue inputs, RS232/RS485 serial output

2. Code pin for proper placement of extension board on E1803D controller card

9.2 Multi-IO Interface

The 26 pin connector provides signals and inputs to be used for different purposes:

Upper

Row

Pins

Signal

Voltage

Remarks

Lower

Row

Pins

Signal

Voltage

Remarks

CLK-

Secondary head,
XY2-100-
compatible output
signals

CLK+

Secondary head,
XY2-100-
compatible output
signals

SYNC-

SYNC+

X-

X+

Y-

Y+

Do not connect!

GND

AIn

GND

12 bit analogue
inputs

AIn0

0..5V

12 bit analogue
inputs

AIn1

0..5V

AIn2

0..5V

Do not connect!

RX1

12V

UART1 RS232

TX1

12V

UART1 RS232

GND

RX1+

UART1 RS485

RX1-

UART1 RS485

TX1+

TX1-

10 Intelli-IO Extension Board

The controller card can be extended by the Intelli-IO Extension board which utilises the extension connector as
described in section “6 Board And Connectors”.
To operate the controller with the Intelli-IO Extension Board, firmware version 5 or newer is needed.
Comparing to the Multi-IO Extension Board this one offers different types of IO and also provides the
possibility for software customisation according to customers special needs. Due to flexibility it can be
operated in different modes and therefore used for different purposes.

10.1 Board Connectors

The E1803D Intelli-IO Extension Board provides following connectors and interfaces:

1. IO-connector offering different signals and interfaces as described below including digital inputs,

digital outputs and analogue inputs

2. Code pin for proper placement of extension board on E1803D controller card

10.2 Intelli-IO Interface in IO mode

When operated in IO-mode, the 20 pin connector provides following signals and inputs:

Lower

Row

Pins

Signal

Voltage

Remarks

Upper

Row

Pins

Signal

Voltage

Remarks

DOut0

Digital outputs,
second 8 bit port

DOut1

Digital outputs,
second 8 bit port

DOut2

DOut3

DOut4

DOut5

DOut6

DOut7

DIn0

Digital inputs,
second 8 bit port (6
bits used)

DIn1

Digital inputs,
second 8 bit port
(6 bits used)

DIn2

DIn3

DIn4

DIn5

GND

AIn

GND

12 bit analogue
inputs

AIn0

0..5V

12 bit analogue
inputs

AIn1

0..5V

AIn2

0..5V

Output

GND

The pins 1 to 8 provide 8 general purpose digital outputs. Maximum current to be pulled out of each output is
20 mA. It is recommended to supply power to E1803D controller via 3pin screw connector but not via USB
when this extension board is used.
The pins 9 to 14 are digital general purpose input pins. They are low-active, means to signal a logical “1”, they
have to be pulled to ground (GND).

The pins 15 to 18 offer three analogue measurement inputs AIn0 .. AIn2 which can be operated in respect to
GND

AIn

and work with a voltage range of 0..5V. This range is converted to a 12 bit digital value in range 1..4095

and can be read out of a connected application or can be used to perform different automated tasks.
PLEASE NOTE: under no circumstances apply a voltage higher than 5V to any of these inputs, this may damage
the complete scanner controller card irreversibly!

This extension board makes use of an own MCU (

rocontroller

nit) which handles all digital IOs and also

has access to analogue inputs AIn0 and AIn1. This MCU can work fully parallel to the main scanner controller
card and therefore is suitable for special, customised control applications. To get more information about such
applications and to discuss your requirements, please contact HALaser Systems.

10.3 Intelli-IO Interface in motion mode

The hardware described within this section is designed to control motors. Motions caused by these motors may
effect a person's health or may otherwise cause damage. Prior to installation and operation compliance with all
relevant safety regulations including additional hardware-controlled safety measures has to be secured. The
client shall solely be responsible to strictly comply with all applicable and relevant safety
regulations regarding installation and operation of the system at any time.

When operated in motion-mode, the extension can be used to drive up to four stepper motor axes via
step/direction signals. Here the 20 pin connector provides following signals and inputs:

Lower

Row

Pins

Signal

Voltage

Remarks

Upper

Row

Pins

Signal

Voltage

Remarks

Step0

Stepper pulse
output signals

Dir0

Stepper motor
direction output
signals

Step1

Dir1

Step2

Dir2

Step3

Dir3

Ref0

Reference inputs

Ref1

Reference inputs

Ref2

Ref3

Do not connect!

GND

AIn

GND

12 bit analogue
inputs

AIn0

0..5V

12 bit analogue
inputs

AIn1

0..5V

AIn2

0..5V

GND

The pins 1 to 8 provide the stepper motor control signals for axes 0..3 (step/direction signals to be used with a
separate, external power driver). Maximum current to be pulled out of each output is 20 mA. It is recommended
to supply power to E1803D controller via 3pin screw connector but not via USB when the Intelli-IO extension
board is used.
The pins 9 to 12 are input pins for axes 0..3 to be used with the reference/homing position. They are low-active,
means to signal a “switch was hit”, they have to be pulled to ground (GND).

The pins 15 to 18 offer three analogue measurement inputs AIn0 .. AIn2 which can be operated in respect to
GND

AIn

and work with a voltage range of 0..5V. This range is converted to a 12 bit digital value in range 1..4095

11 NX-02 Extension Board

While the controller already generates scanner signals for all types of parallel scanner protocols (such as XY2-
100 or XY3-100), using the NX-02 Extension Board it is possible to drive scanheads that make use of serial
scanner protocols (such as NX-02 and compatible). The controller card can be extended by the NX-02 board
which utilitises the extension connector as described in section “6 Board And Connectors”.
To operate the controller with the NX-02 Extension Board, firmware version 17 or newer is needed.

11.1 Board Connectors

The E1803D NX-02 Extension Board provides following connectors and interfaces:

1. serial NX-02 protocol connector towards the scanhead
2. Analogue input signal connector

11.2 NX-02 Interface

The 10 pin connector provides the serial scanhead control signals:

Lower

Row

Pins

Signal

Remarks

Upper

Row

Pins

Signal

Remarks

DATA-

Connect with input of scanhead

DATA+ Connect with input of scanhead

Do not connect!

GND

RET+

Connect with backchannel of
scanhead

RET-

Connect with backchannel of
scanhead

Do not connect!

Depending on the exact wiring of the used scanhead, it may be possible, an adaptor cable is needed. But for
most NX-02 and compatible scanheads, a simple 1:1 connection from this 10-pin IDC connector to a D-SUB9-
connector should be suitable (via direct flatbelt-cable connection). For details please refer to the description
and pinout of the used scanhead.

11.3 Analogue Input Interface

This connector provides the following inputs:

Lower

Row

Pins

Signal

Voltage

Remarks

Upper

Row

Pins

Signal

Voltage

Remarks

AIn0

0..5V

12 bit analogue
inputs

GND

AIn

GND

AIn1

0..5V

GND

AIn

GND

AIn2

0..5V

GND

AIn

GND

The pins 1,3 and offer three analogue measurement inputs AIn0 .. AIn2 which can be operated in respect to
GND

AIn

and work with a voltage range of 0..5V. This range is converted to a 12 bit digital value in range 1..4095

13 E1803dock Extension Board

The E1803 dock is a full-size expansion board which resides on the very top of the controller card and acts as
some kind of breakout-board. It does not occupy the extension connector but makes use of laser and digital
interface – which itself are passed through and are available on top of that E1803dock. This board is available in
different variants which are specialised for specific laser types each. When using a suitable E1803dock,
connection between E1803D and laser is made simple and easy as only some simple 1:1 connections with
standard cables are required. Thus E1803dock allows easy connection of the E1803D controller to lasers
without the need to manufacture special cables. Following all available E1803Dock variants are described
together with the E1803D signal names and where they can be found at the laser-specific connectors.

PLEASE NOTE: prior to using the E1803dock, please ensure the pinout of the connectors (as described below)
really fit to your specific variant of your used laser. Elsewhere irreversible damage are possible at laser and/or
scanner controller card.

PLEASE NOTE: when using the pass-through laser and/or digital interfaces in parallel to the laser-specific
connectors, you need to ensure they are not used twice, out of both connectors. This may result in an undefined
and unwanted behaviour otherwise, as they work parallel and can’t be switched separately. When a parallel
usage is intended, please double-check the current consumption of connected devices as the total current that
can be provided by these lines does not double but is the same total value for two connections then. Exceeding
the total maximum allowed current of a E1803D-signal may cause an irreversible damage to the controller
otherwise.

13.1 E1803dock MOPA

This variant of the E1803dock can be used with most MOPA/fiber lasers that come with a LP8 digital interface
for setting the power, such as

•

IPG YLP with interface variant type G (without SPI serial interface and pin 12 alarm signal)

•

IPG YLP with interface variant type E (without APD indexing)

•

IPG YLP with interface variant type D, D1, B, B1

•

MaxPhotonics MFP

•

JPT YDFLP

•

Raycus RFL-PMX

•

Raycus RFL-PQB

•

GZTech YFPN series
… and compatible laser types.

Starting with hardware version 1.2, the E1803dock MOPA also supports laser types that expect an analogue
signal for power control, such as

•

IPG YLM

•

Raycus RFL-QCW
...and compatible types.

Connection between E1803dock and laser is done mainly via a 1:1 D-SUB25 connection:

Pin Description

1 LP8_0 laser power signal, CMOS, max 8mA

14 GND

2 LP8_1 laser power signal, CMOS, max 8mA

15 Not connected

3 LP8_2 laser power signal, CMOS, max 8mA

16 DIn6 laser alarm pin 16, available at DIn5 only

when jumper is set to „ERR16“ (refer to
description below)

4 LP8_3 laser power signal, CMOS, max 8mA

17 Not connected

5 LP8_4 laser power signal, CMOS, max 8mA

18 MO main oscillator signal, CMOS, max 8mA

6 LP8_5 laser power signal, CMOS, max 8mA

19 LaserGate power amplifier signal, CMOS, max

14mA

7 LP8_6 laser power signal, CMOS, max 8mA

20 LaserA 5V pulse repetitive signal, CMOS, max

14mA

8 LP8_7 laser power signal, CMOS, max 8mA

21 DIn7 laser alarm pin 21, available at DIn7 only

when jumper is set to „ERR21“ (refer to
description below)

9 LP8 Latch laser power latch, CMOS, max 8mA 22 LaserB used to switch the pilot laser, CMOS,

max 14mA

10 GND

23 Emergency input, connected to screw

connector (7) and has to be pulled to HIGH for
different laser types to enable operation

11 DIn5 laser alarm pin 11, available at DIn5 only

when jumper is set to „ERR11“ (refer to
description below)

24 Not connected

12 Not connected

25 Not connected

13 Not connected

6. Jumper to configure laser alarm lines 12 (hardware version 1.2 and newer), 11, 16 and 21. When they

are set to “ERRxx” position (jumper set to left), the related error signal is connected with DInx input as
described above.
When at least one of the jumpers is set to “ERRxx”-position, the digital interface needs to be configured
to opto-mode 1 or opto-mode 2 (please refer to description in section “6.8.2 Opto-Configuration
Jumpers” above). In this case the related digital input is no longer available.
For jumpers that are set to position “DInx” (jumper set to right), the related digital input is available but
the laser error can no longer be read.

7. Emergency input screw connector:

EMRG GND 5V

“EMRG” is connected to pin 23 of the MOPA D-SUB connector (5) and can be used to provide a HIGH-
signal to the laser in order to enable it. Using this an emergency enable/off function can be
implemented.
“5V” is an output which provides 5V from the controller card. It can be used e.g. to apply a HIGH-signal
to the EMRG-input, possibly via a relay contact. Please note: The “5V” pin of this screw connector is not
allowed to be used for supplying power to any other peripherals.

8. D-SUB25 connector for direct connection to laser (available only in hardware variant 1.2 or newer). A

connection can be established using a standard 1:1 D-SUB-cable. This connector provides the following
pinout:

Pin Description

1 Not connected

14 Shield

2 Not connected

15 Not connected

3 Not connected

16 DIn6 laser alarm pin 16, available at DIn5 only

when jumper is set to „ERR16“ (refer to
description below)

4 Not connected

17 LaserGate power amplifier signal, CMOS, max

14mA

5 Not connected

18 Not connected

6 Not connected

19 DIn7 laser ready pin, available at DIn7 only

when jumper is set to „RDY“ (refer to
description below)

7 MO main oscillator signal, CMOS, max 8mA

20 Not connected

8 AOut0 0..4V analogue power control, max 15

mA; Please note: it has to be ensured on
software side to not to apply more than 4V
here. This is done in BeamConstruct
automatically when laser type „IPG (MO,
AOut0)“ is configured. Out of own applications
when calling

E180X_ana_write()

maximum value

of 26213 is allowed.

21 LaserB used to switch the pilot laser, CMOS,

max 14mA

9 GND

22 Not connected

10 Not connected

23 Not connected

11 Not connected

24 Not connected

12 Not connected

25 Not connected

13 Not connected

9. RS232 interface (available only in hardware variant 1.2 or newer), this is a pass-through of the RS232-

signal of the on-board serial interface as described at “6.9 Serial Interface” which can be used for
communication with the laser. The D-SUB9 connector provides the following pinout:

Pin Description

1 Not connected

Not connected

2 RX (to be connected with TX on laser side)

Not connected

3 TX (to be connected with RX on laser side)

Not connected

4 Not connected

Not connected

5 GND

10. mounting holes for HALdrive XY3-100 to analogue converter, can be used for placing a HALdrive

converter board

11. Pilot laser selection – starting with the hardware revision 1.8 of the E1803D scanner controller card

and firmware version 19, the controller card provides an own, native output for controlling the pilot
laser. So with these (or newer hard/software) versions, it is no longer necessary to use LaserB output
for switching the pilot laser. The solder jumper (11) can be used to re-enable LaserB for use as pilot
laser control pin.
Following logic applies:
- when the solder jumper is closed, LaserB or the pilot laser pin can be used for switching the pilot laser,
but LaserB can’t be used for anything else
- when the solder jumper is open, LaserB can’t be used for switching the pilot laser but it can be used
for any other operations (FPK, PWM, ...)

13.2 E1803dock YLM

This variant of the E1803dock can be used with analogue controlled MOPA/fiber lasers such as IPG YLM,
Raycus RFL-QCW and compatible types. Starting with hardware version 1.2, the functionalities of the

Pin Description

1 Not connected

14 Shield

2 Not connected

15 Not connected

3 Not connected

16 DIn6 laser alarm pin 16, available at DIn5 only

when jumper is set to „ERR16“ (refer to
description below)

4 Not connected

17 LaserGate power amplifier signal, CMOS, max

14mA

5 Not connected

18 Not connected

6 Not connected

19 DIn7 laser ready pin, available at DIn7 only

when jumper is set to „RDY“ (refer to
description below)

7 MO main oscillator signal, CMOS, max 8mA

20 Not connected

8 AOut0 0..4V analogue power control, max 15

E180X_ana_write()

maximum value

of 26213 is allowed.

21 LaserB used to switch the pilot laser, CMOS,

max 14mA

9 GND

22 Not connected

10 Not connected

23 Not connected

11 Not connected

24 Not connected

12 Not connected

25 Not connected

13 Not connected

6. Jumper to configure laser alarm and ready lines.

The upper jumper is not used and always has to be set to “DI5”.
When the middle jumper is set to “ERR16” position (jumper set to left), the laser error signal from pin
16 is connected with DIn6 input as described above.
When the lower jumper is set to “RDY” position (jumper set to left), the laser ready signal from pin 19 is
connected with DIn6 input as described above.
When at least one of the jumpers is NOT set to “DIx” (right position), the digital interface needs to be
configured to opto-mode 1 or opto-mode 2 (please refer to description in section “6.8.2 Opto-
Configuration Jumpers” above). In this case the related digital input is no longer available.
For jumpers that are set to position “DIx” (jumper set to right), the related digital input is available but
the laser error/ready can no longer be read.

7. RS232 interface, this is a pass-through of the RS232-signal of the on-board serial interface as

described at “6.9 Serial Interface” which is used for communication with the laser. The D-SUB9
connector provides the following pinout:

Pin Description

1 GND

Not connected

2 Not connected

Not connected

3 RX (to be connected with TX on laser side)

Not connected

4 TX (to be connected with RX on laser side)

Not connected

5 Not connected

8. mounting holes for HALdrive XY3-100 to analogue converter, can be used for placing a HALdrive

converter board

13.3 E1803dock SPI

This variant of the E1803dock can be used with SPI G4 fiber laser / TRUMPF™ TruPulse nano™ and compatible
types that also make use of a compatible connector.
Starting with hardware revision 1.4, the pinout and functionality of this dock is available in E1803dock NCC (as
described below).

Thus the separate variant “SPI” is discontinued and no longer available.

Connection between E1803dock and laser is done mainly via a 1:1 68-pin SCSI-type connection:

1. Screwdriver holes for access to the screw-terminal of the underlying E1803D

2. dock-connectors to underlying E1803D which connect with digital, laser and serial interface

3. Laser interface pass-through, for pinout please refer to section “6.7 Laser Signals”

4. Digital interface pass-through, for pinout please refer to section “6.8 Digital Interface” and to jumper

description below

5. 68pin Mini D Ribbon SCSI connector for direct connection to laser. A connection can be established

using a standard 1:1 cable. This connector provides the following pinout:

Pin Description

1 Not connected

35 Not connected

2 Not connected

36 GND

3 Not connected

37 GND

4 Not connected

38 Not connected

5 LaserGate power amplifier signal, CMOS, max

14mA

39 GND

6 LaserB used to switch the pilot laser, CMOS,

max 14mA

40 GND

7 MO laser global enable signal, CMOS, max

8mA

41 GND

8 DIn6 laser temperature alarm pin 16, available

at DIn5 only when jumper is set to „ERR16“ (6,
refer to description below)

42 GND

9 DIn7 laser general alarm pin, available at DIn7

only when jumper is set to „ERR21“ (6, refer to
description below)

43 GND

10 DIn5 laser system fault pin 11, available at

DIn5 only when jumper is set to „ERR11“ (6,
refer to description below)

44 GND

11 Not connected

45 GND

12 Not connected

46 GND

13 LaserA PWM signal

47 GND

14 Not connected

48 GND

15 Disable input, connected to screw connector

(7) and has to be pulled to LOW to enable
operation

49 GND

16 Not connected

50 GND

17 LP8_0 laser power signal, CMOS, max 8mA

51 LP8_4 laser power signal, CMOS, max 8mA

18 LP8_1 laser power signal, CMOS, max 8mA

52 LP8_5 laser power signal, CMOS, max 8mA

19 LP8_2 laser power signal, CMOS, max 8mA

53 LP8_6 laser power signal, CMOS, max 8mA

20 LP8_3 laser power signal, CMOS, max 8mA

54 LP8_7 laser power signal, CMOS, max 8mA

21 Pulse/CW operation mode, can be set to LOW

or HIGH signal via jumpers (8, refer to
description below)

55 GND

22 Not connected

56 GND

23 LP8 Latch laser power latch, CMOS, max 8mA 57 connected
24 Not connected

58 GND

25 RS232 RX

59 GND

26 RS232 TX

60 GND

27 Not connected

61 Not connected

28 GND

62 Not connected

29 GND

63 Not connected

30 GND

64 AOut1 0..10V analogue simmer control, max

15 mA

31 GND

65 AOut0 0..10V analogue power control, max 15

32 GND

66 Not connected

33 Not connected

67 Not connected

34 Not connected

68 Not connected

For details about the connector type used, here, please refer to the next section below

6. Jumper to configure laser alarms. When they are set to “ERRxx” position (jumper set to left), the

related alarm/failure signal is connected with DInx input as described above.
When at least one of the jumpers is set to “ERRxx”-position, the digital interface needs to be configured
to opto-mode 1 or opto-mode 2 (please refer to description in section “6.8.2 Opto-Configuration
Jumpers” above). In this case the related digital input is no longer available.
For jumpers that are set to position “DInx” (jumper set to right), the related digital input is available but
the laser error can no longer be read.

7. Disable input screw connector:

DIS GND 5V

Here “DIS” is connected to pin 15 of the 68-pin connector and can be used to provide a HIGH-signal to

3. Laser interface pass-through, for pinout please refer to section “6.7 Laser Signals”

4. Digital interface pass-through, for pinout please refer to section “6.8 Digital Interface” and to jumper

description below

5. D-SUB25 connector for direct connection to laser. A connection can be established using a standard

1:1 D-SUB-cable. This connector provides the following pinout:

Pin Description

1 Not connected

14 Not connected

2 Not connected

15 Not connected

3 GND

16 Not connected

4 Emergency input, connected to screw

connector (7) and has to be pulled to HIGH for
different laser types to enable operation

17 GND

5 GND

18 GND

6 GND

19 GND

7 Not connected

20 LaserB first pulse killer signal (FPK/QKILL for

YAG) or pilot laser (for CO

), CMOS, max

14mA

8 GND

21 AOut1 power control, analogue signal in range

0..10V, max 15mA

9 AOut0 frequency control, analogue signal in

range 0..5V, max 15mA; this signal is
hardware-divided by 2 comparing to the
original AOut0

22 LaserA 5V output, CMOS, max 14mA

10 GND

23 MO used to switch the pilot laser, CMOS, max

8mA

11 GND

24 LaserGate non-inverted/high-active laser-on

signal, CMOS, max 14mA

12 LaserGate inverted/low-active laser-on signal,

CMOS, max 40mA

25 LaserA negative output of differential PWM

signal (PWM-, also connected to shield of
BNC-connector), +-5V, max 40mA

13 LaserA positive output of differential PWM

signal (PWM+, also connected to core of BNC-
connector), +-5V, max 40mA

6. Jumpers are reserved for future use and all have to be set to “DIx” (right position)

7. Emergency input screw connector:

EMRG GND 5V

Here “EMRG” is connected to pin 23 of the D-SUB connector and can be used to provide a HIGH-signal
to the laser in order to enable it. When emergency switch functionality is implemented an other way, it
is also possible to directly connect the “5V” pin to “EMRG”.
“5V” is an output which provides 5V from the controller card. It can be used e.g. to apply a HIGH-signal
to the EMRG-input, possibly via a relay contact. Please note. The “5V” pin of this screw connector is not
allowed to be used for supplying power to any other peripherals.

8. BNC-connector for PWM/tickle-signal. It provides a differential +-5V LaserA signal which is also

available as PWM+/PWM- at the D-SUB25 connector (pins 13 and 25)

Pin Description

1 LaserGate, CMOS, max 14 mA

3 PilotLaser, used to switch the pilot laser,

CMOS, max 14 mA

AOut0 0..10 V analogue outout signal, max 8
mA

5 LaserB, FPK/second frequency, CMOS, max

14 mA

AOut1 0..10 V analogue outout signal, max 8
mA

7 MO, laser global enable signal, CMOS, max 14

GND

9 DIn6, alarm pin 16, available only when

jumper is set to “ERR16” (connector 6, refer to
description below)

10 RS232 TX

11 DIn7, alarm pin 21, available only when

jumper is set to “ERR21” (connector 6, refer to
description below)

12 RS232 RX

13 DIn5, alarm pin 11, available only when

jumper is set to “ERR11” (connector 6, refer to
description below)

14 LP8 Latch laser power latch bit, CMOS, max

14 mA

15 LaserA PWM signal, CMOS, max 14 mA

16 LP8_7 laser power bit, CMOS, max 14 mA

17 EMRG emergency/enable input, connected to

screw connector (7)

18 LP8_6 laser power bit, CMOS, max 14 mA

19 LP8_0 laser power bit, CMOS, max 14 mA

20 LP8_5 laser power bit, CMOS, max 14 mA

21 LP8_1 laser power bit, CMOS, max 14 mA

22 LP8_4 laser power bit, CMOS, max 14 mA

23 LP8_2 laser power bit, CMOS, max 14 mA

24 LP8_3 laser power bit, CMOS, max 14 mA

6. Jumper to configure laser alarms. When they are set to “ERRxx” position (jumper set to left), the

related alarm/failure signal is routed to the screw-terminal and connected with DInx input as described
above.
When at least one of these jumpers is set to “ERRxx”-position, the digital interface needs to be
configured to opto-mode 1 or opto-mode 2 (please refer to description in section “6.8.2 Opto-
Configuration Jumpers” above). In this case the related digital input is no longer available.
For jumpers that are set to position “DInx” (jumper set to right), the related digital input is available but
the laser error can no longer be read.
Jumper ERR12 is reserved for future use and has to be set to “DI4” (right position), setting it to the left
position disables the related digital input.

7. Emergency input screw connector:

EMRG GND 5V

Here “EMRG” is connected to pin 17 of the screw-terminal (4) and can be used to provide a HIGH-
signal to the laser in order to enable it. When the emergency switch functionality is implemented an
other way, it is also possible to directly connect the “5V” pin to “EMRG”.
“5V” is an output which provides 5V from the controller card. It can be used e.g. to apply a HIGH-signal
to the EMRG-input, possibly via a relay contact. Please note. The “5V” pin of this screw connector is not
allowed to be used for supplying power to any other peripherals.

8. mounting holes for HALdrive XY3-100 to analogue converter, can be used for placing a HALdrive

converter board

14 E1803base Mounting Kit

The E1803base extension is a mounting help for easy installation on DIN rails/C45 rails and other possibilities
of mechanical integration into machines:

RED

– mounting positions for DIN/C45 rail locks/DIN/C45 rail adapters (bottom side). Here pairs of locks can

be mounted in one of 6 possible positions and one of two possible orientations (horizontal or vertical). Here
locks of type Phoenix Contact 1201578 or similar can be used. With these locks the board then can be clamped
on a DIN rail.

BLUE

– mounting holes for the E1803D scanner controller card on top of the E1803base. Here

hex-stands/distance bolts can be screwed in where the controller card is mounted on top.

GREEN

– mounting holes for HALdrive XY3-100 to analogue converter, for placing a HALdrive converter board

when E1803base is used as top-cover for E1803D

Mounting procedure for E1803base:

1. Identify suitable positions (

RED

) for two DIN/C45 rail locks and mount them on bottom side (two or

three screws from top side into the lock on bottom)

2. Mount hex-stands or distance bolts in at least four of the given mounting holes (

BLUE

3. Mount E1803D on top of these hex-stands/distance bolts

4. Clamp the board on your DIN/C45 rail

Optionally and without the DIN/C45 rail clamps mounted, E1803base also can be used as top-cover for the
E1803D controller. There the same (

BLUE

) holes can be used to mount the E1803base on top using hex-

stands/distance bolts.

15 Quick Start into E1803D

Following a few steps are described that give users the possibility to quick start into usage of E1803D scanner
controller. It makes use of BeamConstruct and USB connection. For this quick start manual it is assumed
correct wiring of the controller is already done according to the description above. For more detailed
information about BeamConstruct usage please also refer to quick start manual from

https://.systems/download/manual_quickstart.pdf

and to full user manual which is available at

https://halaser.systems/download/manual.pdf

To start with E1803D controller:

SECURITY CHECK:

The following steps describe how to set up E1803D scanner controller card and

how to control laser equipment with them. Thus all laser safety rules and regulations need to be
respected, all required technical security mechanisms need to be available and active prior to starting
with it.

2. Install latest software version from

https://halaser.systems/download.php

– for Windows this package

contains all required drivers, for Linux no separate drivers are needed.

3. Connect E1803D controller via USB and apply +-12V .. +-24V power (depending on scanhead, as

described above).

4. Now the Alive/Error-LED should light up and then start blinking after some time. When this does not

happen, please turn power off, check if the microSD-card is placed correctly and then try again.

5. Evaluate the serial interface the controller is connected with – for Windows the Device Manager (can

be found in Control Panel) will list a new COM-port (e.g. “COM3”); for Linux type “dmesg” in console to
find out to which interface it was connected with (typically “/dev/ttyACM0”).

6. Start BeamConstruct laser marking software.
7. Go to menu “Project” “Project Settings...”, then tab-pane “Scanner”.

→

8. Now you can select “E1803D” as scanner controller card. If is is not preselected, please choose the

appropriate scanner controller in the related combo box.

9. Press the “Configure”-button to get into the settings dialogue for E1803D plug-in.
10. Enter the serial interface name in field “IP/Interface” (e.g. “COM3” or “/dev/ttyACM0”).
11. Leave everything with “OK”.
12. Draw some geometries as described in “BeamConstruct Quick Start Manual”.
13.

SECURITY CHECK:

Next the scanner controller card will be accessed for the first time. That means it is

opened and initialised and all connected equipment may start working now. Thus it is very important to
ensure all security regulations are met and nobody can be injured and no damage can be caused also in
case laser output or other motion starts spontaneously and unexpectedly!

14. Press “F2” or go to menu “Process” “Mark” to open the mark dialogue.

→

15. Start marking by pressing the yellow laser-button!

16 Command Interface

When E1803D scanner card is connected via USB and the USB-connection is NOT used for transmitting
marking information, it can be used to send control commands to the card. Some of them are independent of
the current operating mode and some of them can be used only in case the controller is operating in stand-
alone mode.
Alternatively control commands can also be sent via Telnet using Ethernet connection. Here a Telnet-client has
to connect to port 23 using the IP of the scanner controller. This Telnet client should work in passive mode.
So when E1803D scanner card is connected this way via Ethernet and the Ethernet-connection is NOT used for
transmitting marking information, it can be used to send control commands to the card. Some of them are
independent of the current operating mode and some of them can be used only in case the controller is
operating in stand-alone mode.
Such a control command always consists of ASCII-text. An appropriate client has to connect to the serial port
(COMx for Windows and /dev/ttyACMx for Linux where “x” is a number identifying the specific serial interface
or TCP/IP port 23). As soon as the connection is established, commands can be sent to the card. All commands
come with following structure:

cxxxx [parameter(s)]

The commands always start with character “c”. Next four characters identify the command itself. Depending on
the command one or more optional or mandatory parameters may follow. The end of the command always has
to be marked with a CR/LF (aka “enter”) and returns with an "OK" or with an error.

When communicating via RS485 serial interface in bus-mode (means when several controllers are connected
via the same RS485-line, when

u0bypass

is set to 1 and when

busid

is set), every c-command has to be

preceded by fixed three-bytes in format “bXX” where “XX” is a value in range 00..99 equal to the bus-identifier
set with configuration parameter

busid

. So in busmode the structure of a d-command is

bXXcxxxx [parameter(s)]

16.1 General Commands

The following commands can be used in all scenarios, they do not depend on a specific operation mode of the
card. Nevertheless it is recommended to not to send a command during card is marking to not to influence
marking operation.

cvers

vers

ion" – return version information of controller card. This command returns a version string

specifying version of hard- and firmware in style

vFF-H

where “

” is the version of the firmware and “

”

specifies the hadware revision of the controller.

cecho <0/1>

echo

" – when typing commands in a serial console communicating with the controller, all the typed

characters are echoed, means they are sent back to the host so that a user can see what is typed. This is an
unwanted behaviour when some kind of control software communicates with this interface. Using this
command the serial echo mode can be turned off (parameter 0, only return values are sent back) or on
(parameter 1, all data are sent back). When called with no parameters, the current echo mode value is returned.
Example:

cecho 0

– turn off echo mode

cginp

inp

ut" – get the current state of the digital inputs. The input state is returned as a decimal number

representing the bitpattern at the inputs. So when e.g. a value "15" is returned, this means the lower four inputs
of the digital interface are set to HIGH while the upper ones are at LOW level

cgbsr

oard

ial number" – returns the serial number of the card. This number is a unique, internal

value that is used e.g. to identify a controller on host PC when more than one scanner card is used.

cjsor <factor>

“

ump

peed

verw

ite” - this command modifies the actual jump speed by using the given factor (in unit

1/100%). All operations make use of the changed jump speed until a factor of 10000 is set or until the controller
is restarted. This is true for both, stand-alone applications where an .EPR-file is loaded from microSD-card and
for host-controlled marking operations (via libe1803 or BeamConstruct).

cmsor <factor>

“

ark

peed

verw

ite” - this command modifies the actual mark speed by using the given factor (in

unit 1/100%). All operations make use of the changed mark speed until a factor of 10000 is set or until the
controller is restarted. This is true for both, stand-alone applications where an .EPR-file is loaded from
microSD-card and for host-controlled marking operations (via libe1803 or BeamConstruct).

cpwor <factor>

“

verw

ite” - this command modifies the actual power by using the given factor (in unit 1/100).

All operations make use of the changed power until a factor of 10000 is set or until the controller is restarted.
This is true for both, stand-alone applications where an .EPR-file is loaded from microSD-card and for host-
controlled marking operations (via libe1803 or BeamConstruct).
This command influences following methods of setting laser power:

•

pulse width, here user has to ensure the resulting pulse width is smaller than the period of the related
frequency, elsewhere the output will be a continuous signal

•

LP8 laser port

•

AOut0 and AOut1 analogue outputs

cfror <factor>

“

equency

verw

ite” - this command modifies the actual frequency by using the given factor (in unit

1/100%). All operations make use of the changed power until a factor of 10000 is set or until the controller is
restarted. This is true for both, stand-alone applications where an .EPR-file is loaded from microSD-card and for
host-controlled marking operations (via libe1803 or BeamConstruct).
This command is not available for lasermodes CO

or YAG

This function requires firmware version 16 or newer.

cpuor <factor>

“

lse-width

verw

ite” - this command modifies the actual pulse-width by using the given factor (in

unit 1/100%). All operations make use of the changed pulse-width until a factor of 10000 is set or until the
controller is restarted. This is true for both, stand-alone applications where an .EPR-file is loaded from
microSD-card and for host-controlled marking operations (via libe1803 or BeamConstruct).
This command is not available for lasermodes CO

or YAG, there the pulse-width is changed via command

cpwor

This function requires firmware version 16 or newer.

cgmtx

“

atri

” - return the four elements of the 2x2 output matrix. The members of the matrix are

returned as four integers with a factor of 1000. So returned values of “1200 0 0 1200” are equal to a matrix

1,2 0,0
0,0 1,2

Which itself defines a scale factor of 1,2 in both, X and Y direction of the output.
This function requires firmware version 11 or newer.

csmtx <m11 m12 m21 m22>

“

” - set a 2x2 matrix which is used for the global output of the scanner card. This means, the

values applied here influence the whole project which is currently be marked. Such a 2x2 matrix can be used to
modify the X- and Y-scale, the rotation and the X- and Y-slant of the output. The matrix members m11, m12,
m21 and m22 have to be given as integers which represent the matrix elements multiplied by 1000.
As soon as a custom matrix is set via this command, all matrix values out of a loaded EPR file are ignored and
only the matrix-values currently set are used. This includes gain and rotation correction settings which may be
set in such an EPR file.
Example:

csmtx 996 -87 87 996

- rotate the output by 5 degrees; these values are generated out of the

unity matrix {1000, 0, 0, 1000} which was multiplied with the rotation matrix {cos(5)*1000, -sin(5)*1000,
sin(5)*1000, cos(5)*1000}
This function requires firmware version 11 or newer.

cswaf <factor>

Sets a factor in unit bits per mm that is used with all commands that specify some distance or position (such as

cspof

). When this factor is set to a proper value, the given positions/distances can be specified in unit um

instead of bits. When a factor of 1000 is specified, the functionality is reset back to the default behaviour where
position values have to be given in unit bits.
This parameter requires a firmware version 18 or newer.

cspof <x y z>

“

osition

fset” – sets a n position offset for the complete output. This function expects three parameters

for the offset to be set in X, Y and Z-direction. The values to be given here are signed 26 bit, means they need to
be in range -33554431..33554432. To reset the offset for one or more directions, a value of 0 has to be set.
Please note: this offset is set prior to the matrix calculations which may be done when a custom output matrix is
set using command

csmtx

. Resulting from that, the matrix calculation also applies to the offset defined here. So

when the matrix e.g. defines a scale factor for the output, the offset values specified here are scaled by the same
factor.
Example:

cspof -16777216 0 0

– shift the output by a quarter of the whole available working area to the

left.
This function requires firmware version 16 or newer.

cgana

ana

logue input values – this command returns the values which have been read at analogue inputs

AIn0..AIn2 recently. Reading of the analogue inputs is done cyclically and automatically with a low frequency.
This command does not read the analogue values but returns the values which have been read at last cycle. So
when this command is repeated too fast, it may return the same values.
This command returns the current values of all inputs AIn0, AIn1 and AIn2 all together.
To use this command, firmware version 4 and the Multi-IO Extension Board are needed.

16.2 Stand-Alone Control Commands

Following commands are useful in case scanner controller is operating in stand-alone mode where marking data
are loaded from microSD-card using special EPR-fileformat.

cstop

stop

" – stop marking as fast as possible. A running marking operation is stopped and LaserGate is

turned off.

chalt <0/1>

halt

" – halts or continues the processing and output of marking data. When given parameter is equal

to 1, marking is stopped next time the laser is off but no vector data are flushed. On continue (parameter equal
0) controller continues processing at the point where halt occurred. When marking is stopped with

cstop

the

halt-condition is cleared too, means on next transmission of new marking data they are processed without the
need to explicitly continue operation.

cstrt

" – start marking operation. This command can be called only when no marking operation is

running and when a valid project (.epr) file was loaded. In this case the currently loaded project is marked once.

ctrig

trig

ger" – send an external trigger signal by software. When scanner card is in state "marking" but

waiting for an external trigger, this command releases this trigger. So behaviour is the same like a rising edge on
the ExtStart input of the controller card.

cstat

stat

e" – return the current state of the card. This command returns one of the following texts

identifying the operational state:

•

marking

– card is processing some marking data currently, means either actively outputting them or

waiting for an external trigger to start marking

•

stand-alone

– controller is in stand-alone mode

•

idle

- card is waiting and not marking

•

waiting

- a project file was loaded, is ready for execution and waits for a trigger signal (either via

ExtStart input or via command "

ctrig

cscnc

“

CNC

data” – switch to a mode where G-Code process data are accepted via Telnet/serial interface.

When this command is set, the G-Code reception mode stays active until a command “M2” (end of G-Code
program) is detected. Only with this G-Code the controller returns to normal operation mode and again accepts
native “c”- and “d”-commands.
This command can be used to download a CNC-program to the controller’s RAM directly. Such a CNC-program
then can be executed like any other, stand-alone program which has been loaded from the SD-card. So using of
command “cscnc” requires stand-alone mode “auto” in order to store the received G-Code data in memory for
further processing and to control execution of the G-Code data. After the G-Code data have been transferred
and transmission has been ended with “M2”, marking of these data can be started by applying an external
trigger at ExtStart or by sending a trigger-event via command (e.g. “

ctrig

”).

To successfully send G-Code data, some preconditions have to be met. For data transmission via Telnet:

•

a G-Code line is limited to 255 characters maximum and always has to end with carriage return and/or
line feed

•

when transferring more than one line at the same time, the maximum packet size is 1460 bytes, at the
end of such a packed a G-Code line has to end too and it is recommended to flush the full output buffer
in order to invoke a data transmission over TCP/IP; this procedure is recommended in order to have an
as fast as possible data transfer independent from the implementation a TCP/IP stack really uses

For data transmission via USB serial interface:

•

a G-Code line is limited to 255 characters maximum and always has to end with carriage return and/or
line feed

The structure and supported G-Code commands are described in section “17 Supported CNC G-Code
Commands“ below.
This function requires firmware version 3 or newer.

cxcnc

“e

ecute

CNC

data” – switch to a mode where G-Code process data are accepted via Telnet/serial

interface and executed more or less immediately. When this command is set, the G-Code reception mode stays
active until a command “M2” (end of G-Code program) is detected. Only with this G-Code the controller returns
to normal operation mode and again accepts native “c”- and “d”-commands.
This command can be used to send CNC-commands to the controller in order to let them be executed
automatically like some direct control commands. Different to “

cscnc

” it is not related to stand-alone

operations, the G-codes are executed like a stream of commands. So “

cxcnc

” provides an other possibility to

send operation data to the controller. When enough data have provided to the controller, it starts marking

automatically. In case of only very few CNC data that aren’t enough to let the controller start marking, this is
done at the end of the CNC stream of data: after all the available G-Code data have been transferred and
transmission has been ended with “M2”, marking of these data is started.
To successfully send G-Code data, some preconditions have to be met. For data transmission via Telnet:

•

a G-Code line is limited to 255 characters maximum and always has to end with carriage return and/or
line feed

•

For data transmission via USB serial interface:

•

a G-Code line is limited to 255 characters maximum and always has to end with carriage return and/or
line feed

The structure and supported G-Code commands are described in section “17 Supported CNC G-Code
Commands“ below.
This function requires firmware version 20 or newer.

cgtin

rigger

puts" – get the state of the external input signals. This command is not related to digital

inputs of digital interface but provides information regarding signal state of external start and stop. It returns a
value that specifies which of these input signals are currently HIGH:
0 – ExtStart and ExtStop are both LOW
2 – ExtStart is HIGH
4 – ExtStop is HIGH
6 – ExtStart and ExtStop are both HIGH

cscor <idx>

“

cor

rection” - specifies a new index for a previously loaded correction file (see description of

configuration parameter

corrtable

in section “6.5 microSD-Card” above). The parameter

idx

can be a value

in range 0..15 and needs to correspond to a previously loaded correction table. The newly set correction table
applies to all vector data which are processed after this call. Thus it is recommended to use it only when
marking operation was stopped – elsewhere it is not predictable how many vector data already have been pre-
calculated with the previous correction table and starting with which vector data the new correction file is
used.
When a

idx

-value is set which corresponds to no correction file data, no more correction is performed on

vector data.
This command requires firmware version 6 or newer.

cgcor

“

cor

rection” - this command is the counterpart of

cscor

and displays the index number of the

currently used correction file
This command requires firmware version 6 or newer.

clepr <path>

oad

epr

" – loads an EPR stand-alone file or CNC G-Code file from microSD card for outputting it on

next marking operation. This command can be executed in stand-alone mode only.

When operating in stand-alone mode “idxselect”, the command expects a number as parameter which specifies
the index file to be loaded.
When operating in stand-alone mode “ioselect” or “iohaltedloop”, the command is not supported.
When operating in any other stand-alone mode, the command expects the path to the file to be loaded as
parameter. Since this is the only parameter, no quotes are allowed for the pathname. The pathname itself has to
be in format

0:/filename.epr

0:/filename.cnc

where

0:/

specifies the microSD-card,

.epr

is the standard extension of E1803D stand alone marking data

files (this name is a short-cut for "

E1803D Pr

ocessing Data") and

.cnc

is the extension which has to be used

when an ASCII-G-code file is provided. EPR-files can be created out of BeamConstruct, CNC-files are text files
containing valid G-Code commands as described in section “17 Supported CNC G-Code Commands”
During loading the ready-for-marking output signal is turned off and it is turned on only in case the file could be
loaded successful (please refer to related section above).
Examples:

clepr 0:/test.epr

– loads a stand-alone file "test.epr" from microSD card

cgepr

“

epr

” – returns the name of the currently loaded stand-alone file or an error “no file specified” when

no file is loaded.

cdepr <path>

elete

epr

" – deletes an EPR stand-alone file and all related, additional files from microSD card. This

command can be executed in stand-alone mode only.

When operating in stand-alone mode “idxselect”, the command expects a number as parameter which specifies
the index file to be loaded.
When operating in stand-alone mode “ioselect” or “iohaltedloop”, the command is not supported.
When operating in any other stand-alone mode, the command expects the path to the file to be delete as
parameter. Since this is the only parameter, no quotes are allowed for the pathname. The pathname itself has to
be in format

0:/filename.epr

where

0:/

specifies the microSD-card and

.epr

is the standard extension of E1701 stand-alone marking data

files (this name is a shortcut for "

1803

ocessing Data"). Deleting is done asynchronously, so the returned

“OK” only verifies the command was accepted. Successful deletion of the file can be assumed after 0,5 seconds.
Examples:

cdepr 0:/test.epr

– deletes a stand-alone file "test.epr" from microSD card. When additional

files

test.dat

(which may contain related dynamic data) and

test.ser

(which may hold serial number

information) exist, they are deleted by this command too.
This command requires a firmware version 16 or newer.

ctlxy <x> <y> <z>

“

urn on

aser at given

Z position” – lets the scanner move to a specific position and turns on the laser as long

as ExtStart is HIGH
This command requires stand-alone mode “auto”. It can be used to turn on the laser as long as the ExtStart input
is at HIGH. So using this function some externally controlled drilling or cutting operations are possible. As
parameter it expects the X, Y and Z coordinate positions to jump to (in unit 26 bits). The sequence of commands
to use this function are as follows:

•

unload the current project file (“e.g. by calling “

clepr 0:/notexist.epr

”)

•

call “

ctlxy

” together with the 26 bit XYZ position the scanner has to jump to the parameters used

→

for jumping are the ones out of the last EPR file executed

•

the state-flag

E180X_CSTATE_SAC_CTLXY

is set

•

the state-flag

E180X_CSTATE_SAC_READY

is set as soon as the scanner has arrived at the specified

XYZ position, this happens together with the output DOut0:

•

wait until DOut0 goes to HIGH this output signals the specified XYZ position was reached and the

→

controller is able to turn on the laser now

•

pull ExtStart to HIGH the laser is turned on within 1 usec at max using the laser parameters out of

→

the last EPR file executed

•

as long as ExtStart is HIGH, the laser is turned on and DOut1 is at HIGH and the state-flag

E180X_CSTATE_SAC_MARKING

is set

•

pull ExtStart to LOW as soon as the laser has to be turned off both DOut0 and DOut1 are pulled to

→

low, the laser is turned off within 1 msec at max and all

E180X_CSTATE_SAC_

-flags are reset

•

now the complete sequence has ended ad the

ctlxy

-command has elapsed. To turn on the laser via

ExtStart again, a new command

ctlxy

has to be issued

Example:

ctlxy 33554432 33554432 33554432

Starts a ctlxy-sequence as described above with the scanner moved to the centre position.

This command requires firmware version 13 or newer.

csbuf <idx> <path>

“

buf

fer” - this command works similar to the configuration parameter “iobuff” and can be called in

stand-alone modes “ioselect” and “idxselect”. It can be used to preload EPR stand-alone data files into memory
so that they can be accessed faster and without additional accesses of the SD card. The first parameter

<idx>

is mandatory and specifies the slot the EPR file has to be loaded to. Different to parameter “iobuff” where the
slot number is given automatically and where the index value can be in range 1..255, here the slot number and
the index number are always the same and are in range 1..20. So only the first 20 index values can be used
together with this dynamic loading function. When only

<idx>

is given, the loaded file is

0:/<idx>.epr

Optionally also a file name

<path>

can be given in format

0:/file.epr

. In this case the given file is loaded to

the slot specified by

<idx>

and can be accessed with the related index number. After every call to

csbuf

the

command

cgbuf

has to be executed repeatedly until it returns -1.

Examples:

csbuf 3

– loads the file

0:/3.epr

from SD-card and stores it in slot number 3 so that it can be accessed

either via “

clepr 3

” (in stand-alone mode “idxselect”) or via a digital input pattern at the digital interface

representing a 3 (in stand-alone mode “ioselect)

csbuf 5 0:/markme.epr

– loads the file

0:/markme.epr

from SD-card and stores it in slot number 5 so

that it can be accessed either via “

clepr 5

” (in stand-alone mode “idxselect”) or via a digital input pattern at

the digital interface representing a 5 (in stand-alone mode “ioselect)

This command requires firmware version 9 or newer.

cgbuf

“

et processed

buf

fer” - returns the index number of the buffer that is currently processed by a

previous call to

cgbuf

. As long as this command returns a value greater than -1, no other calls to

csbuf

are

allowed. The returned number specifies the index/slot number that is currently filled with data. When

cgbuf

returns -1, the loading operation has been finished.

This command requires firmware version 9 or newer.

cstxt <"elementname"> <"text">

" – set a new text value to an element in currently loaded project. The parameters for this

command both have to be given with quotes ("). Setting a text is possible only for dynamic elements like
DataMatrix or QR barcodes or texts. Here "elementname" is the name of the element that has to be modified
(this is the same name like shown in element-tree of BeamConstruct) and the new text to be set. The "text"
itself can be a format string as used within BeamConstruct when a serial number input element is involved
Example:

cstxt "Barcode 1" "Hello :-)"

- sets a new text "Hello :-)" for the element with name

"Barcode 1"

cgtxt <"elementname">

" – gets the currently used text value of an element in loaded project. The parameter for this

command has to be given with quotes ("). Getting a text is possible only for dynamic elements like DataMatrix
or QR barcodes or texts.

Example:

cgtxt "Barcode 1"

– gets the text from the element with name "Barcode 1"

csser <"elementname"> <cnt>

ser

ial number" – sets a new serial count value to an element in currently loaded project. The

element name for this command has to be given with quotes ("). Setting a new count is possible only for dynamic
elements like DataMatrix or QR barcodes or texts that have a serial number input element assigned. Setting the
value has to be handled with care, here every value can be specified independent if it fits to possibly exiting beat
count values.
Example:

csser "Text 2" 42

– set a new serial number count value 42 for element with the name "Text 2"

cgser <"elementname">

ser

ial number" – gets the current serial count value from an element in loaded project. The

element name for this command has to be given with quotes ("). Getting the count is possible only for dynamic
elements like DataMatrix or QR barcodes or texts that have a serial number input element assigned.

ciser <"elementname">

ncrement

ser

ial number" – increments the current serial count value of an element according to its

serial number parameters. The element name for this command has to be given with quotes ("). Incrementing
the count is possible only for dynamic elements like DataMatrix or QR barcodes or texts that have a serial
number input element assigned. This function is more secure than forced setting of a new count value with
"csser" since it can't violate the counting rules.

cdser <"elementname">

ecrement

ser

ial number" – decrements the current serial count value of an element according to its

serial number parameters. The element name for this command has to be given with quotes ("). Decrementing
the count is possible only for dynamic elements like DataMatrix or QR barcodes or texts that have a serial
number input element assigned. This function is more secure than forced setting of a new count value with
"csser" since it can't violate the counting rules.

crser <"elementname">

eset

ser

ial number" – resets the current serial count value of an element to its start-value (according

to its serial number parameters). The element name for this command has to be given with quotes ("). Resetting
the count is possible only for dynamic elements like DataMatrix or QR barcodes or texts that have a serial
number input element assigned. This function is more secure than forced setting of a value with "csser" since it
can't violate the predefined serial number parameters and uses the correct reset value.

cstim <seconds>

tim

e" – this command sets the system time to the value specified with the parameter. Here the

number of seconds have to be specified that have elapsed since 01.01.1970 at 00:00:00. After sending this
command the controller card operates at the given time. The time value is lost after next power cycle and has to
be set again.
Example:

cstim 1420113600

– set the internal time of E1803D controller to 01.01.2015 12:00:00, here

1420113600 represents the number of seconds that have been elapsed between 01.01.1970 00:00:00 and
01.01.2015 12:00:00

crtim

etrieve

tim

e" – this command schedules time retrieval from an SNTP server asynchronously. It always

returns with "OK" since the command is scheduled for execution during next working cycles. To use this
command, controller has to be configured with IP, netmask, gateway and SNTP server IP correctly and needs to
be able to access this SNTP server from its position in network. For details please refer to description of
configuration parameters in section about microSD card above.

cgtim

tim

e" – returns the current time of the board in number of seconds that have elapsed since

01.01.1970 at 00:00:00. After powering up the board and before a valid time has been set, this value is
undefined.

cftim

ormatted

tim

e" – returns the current time of the board as formatted string in style DD.MM.YYYY

hh:mm:ss. After powering up the board and before a valid time has been set, this value is undefined.

cstyr <year>

ime

" – sets the year of the current system time to the value given as parameter. This value

has to be in range 1900..2038

cstmo <month>

ime

nth" – sets the month of the current system time to the value given as parameter. This

value has to be in range 1..12 according to the number of the month.

cstdy <day>

ime

" - sets the day of the current system time to the value given as parameter. This value has

to be in range 1..28, 1..30 or 1..31 according to the length of the current month.

csthr <hour>

ime

our" – sets the hour of the current system time to the value given as parameter. This value

has to be in range 0..23.

cstmi <minute>

"set time minute" – sets the minute of the current system time to the value given as parameter. This

value has to be in range 0..59.

cstsc <second>

ime

ond" – sets the second of the current system time to the value given as parameter. This

value has to be in range 0..59.

cgsta

erial s

te" – this command applies only when working in stand-alone mode with dynamic serial

number data that change on every mark operation. It returns information if the state of serial numbers has
changed and is not yet saved (in this case "pending" is returned) or if they have been saved and therefore do not
get lost when power is turned off now ("saved" is returned in this case).

cssta

ave

erial s

te" - this command applies only when working in stand-alone mode with dynamic serial

number data that change on every mark operation. When it is called, a command to save the current state of
serial numbers is enqueued and will be processed as soon as controller is able to store these data. So when this
command returns with "OK" that doesn't necessarily means the serial number states are saved now. The
current save state still has to be checked by calling "cgsta" after "cssta" has been issued.

cdtl0 <text>

“

ext

ine

” - this command is used in dot mode matrix marking mode only. It can be used to set a

new line of text for the upper line to be marked in dot matrix mode. It can be called several times in advance to
set some more texts. They are marked in the order they have been set on every marking cycle started by an

ExtStart input signal. Stopping a marking operation by calling “cstop” or by applying a signal to ExtStop input
deletes all previously set texts and empties the whole text buffer.

cdtl1 <text>

“

ext

ine

” - this command is used in dot mode matrix marking mode only. It can be used to set a

new line of text for the lower, optional line to be marked in dot matrix mode. It can be called several times in
advance to set some more texts for the second line. When the controller card is configured to work with two
lines of texts, it always expects pairs of texts to be set, means “cdtl0” and “cdtl1” needs to be used always
together. They are marked in the order they have been set on every marking cycle started by an ExtStart input
signal. Stopping a marking operation by calling “cstop” or by applying a signal to ExtStop input deletes all
previously set texts and empties the whole text buffer.

crrrr

eboot" – perform a warm reboot of the hardware and restart the firmware. Reboot is done

immediately, means this command does not return anything but connection to the board will be interrupted as
soon as it has been sent.

16.3 Hardware Commands

These commands can be used to access hardware signals directly. When these hardware outputs are set or
unset while a marking operation is running, they may have no effect as they may be overridden immediately.
Thus it is recommended to execute them only when the controller card is idle and no other operations are in
progress. But also in this case, when a hardware output is set to a specific state, any operation (especially
marking cycle) that is executed afterwards, may override that specific state-changes. Following hardware-
specific commands are supported:

csout <value>

"set output" – set the state of the digital outputs. The output to be set is specified as a decimal number

representing the bitpattern. When no parameter is given, the behaviour is undefined.
Example:

csout 128

- set DOut7 at the digital interface to HIGH while all others stay at LOW

cglog

log

line" – returns a single logging line. This command has to be called repeatedly until an error is

returned to get logging information from the controller. On each call of this function one logging line is
returned. When "

cglog

" isn't used for a longer time it may be possible the internal log-buffer has overrun. In

this case "

cglog

" will not return all log information.

cslgt <value>

“

aser

e” – set the state of the LaserGate output either to HIGH (value is set to 1) or to LOW (value is set

to 0).
This command requires firmware version 15 or newer.

cslmo <value>

“

” – set the state of the main oscillator output either to HIGH (value is set to 1) or to LOW (value is set to

0).
This command requires firmware version 15 or newer.

cslp8 <value>

“

LP8

” – set the state of the LP8 output port to the value given as parameter. Here value is allowed to be in

range 0..255, the related bits of the LP8 output are set according to the bitpattern of the specified number.
This command requires firmware version 15 or newer.

16.4 Mark Control Commands

The following section describes commands that can be used to send marking data (including vector data and
laser/scanner parameters) to the controller. If possible, these commands should not be mixed with the
commands described above but have a different structure:

•

they always start with a character "d"

•

the total length of one frame (means one command) is always 14 bytes

•

they mustn't be terminated with CR/LF, the end of a frame is determined by its size of 14 bytes

•

they contain binary, means not human-readable data and therefore can't be sent manually

•

in bus-mode they are preceded by an additional identifier “bXX”

Different to the programming interface (“18.1 E1803D Easy Interface Functions”) mentioned below, this
possibility to send control and marking data is completely independent from any host operating system and
from any additional software or libraries. It gives the possibility to send marking data to the card right via some
binary data which can be sent via Ethernet connection (Telnet) or USB serial interface.

PLEASE NOTE: when using Network/Telnet connection and when switching from a Mark Control Command
("d"-command) to a general command ("c"-command as described above) it is recommended to flush all output
before sending a command of other type.

These commands always have the following structure:

dCAAAABBBBEEEE
d

– marks starting point of a frame and identifies a mark control command with a fixed length of 14 bytes

(including this character)

– 8 bit value that specifies what command has to be executed

AAAA

– 32 bit little-endian value, it's meaning and usage depends on "C"

BBBB

– 32 bit little-endian value, it's meaning and usage depends on "C"

EEEE

– 32 bit little-endian value, it's meaning and usage depends on "C"

When communicating via RS485 serial interface in bus-mode (means when several controllers are connected
via the same RS485-line, when

u0bypass

is set to 1 and when

busid

is set), every d-command has to be

preceded by fixed three-bytes in format “bXX” where “XX” is a value in range 00..99 equal to the bus-identifier
set with configuration parameter

busid

. So in busmode the structure of a d-command is

bXXdCAAAABBBBEEEE.

It is recommended to collect commands before they are sent to the controller, especially in case Ethernet
connection is used. In case of TCP/IP the used payload length of a TCP-frame is 1460 bytes which should be
filled as much as possible in order to avoid additional data transfers. So when sending larger amounts of data to
the controller, up to 104 command frames should be collected and then sent all together (104 * 14 = 1456 bytes
which is close to 1460).

From time to time the controller sends back an answer to give back some state information. In case of
Ethernet/Telnet connection this answer is not sent periodically but as response to a complete block of data sent
to the card. Since the size of such a block is not specified and depends on the underlying TCP/IP implementation
(in case of Ethernet connections), no predictions can be made after what amount of data a response frame is
sent. Thus it is recommended to try to receive such a response frame every time some data have been

transmitted until at least one frame was received. When host software is idle, it can try to read response frames
permanently. To trigger transmission of a new response frame, "ping" control command

0x0A

can be used (for

details please refer below).
In case of USB/serial connection this response is sent automatically after every 14 byte frame submitted, so it is
necessary to always read them in order to avoid overrun of receive buffers.
Such a response frame gives back information about the current operational state of the card and comes in
following structure:

dRLLLLSSSSIIII
d

– marks starting point of a response frame with a fixed length of 14 bytes (including this character), this

character can be used to re-synchronise

– 8 bit value, currently always 0xFF; this value has to be checked for future compatibility, in case it is not 0xFF

the frame has to be ignored!

LLLL

– 32 bit little-endian value, here the amount of free command buffer space is returned; sending

application has to ensure this buffer never overruns, so it is recommended to always leave a space of at least

200 commands (recommended: 1000), new commands should be sent only when there is more space than this
left in this buffer

SSSS

– 32 bit little-endian value, signalling operational state; this value can consist of following or-

concatenated flags:

•

0x00000001

– card is currently marking

•

0x00000002

– the external start input is currently HIGH

•

0x00000004

– the external stop input is currently HIGH

•

0x00000008

– the external start input was set to HIGH after last response frame, this value is set

only once for every rising edge on this input

•

0x00000010

– the external stop input was set to HIGH after last response frame, this value is set

only once for every rising edge on this input

•

0x00000080

– the controller has received some data which may result in a marking operation;

these data are currently processed but marking has not yet started

•

0x00000400

– card is active but currently waiting for an external trigger to continue operation

IIII

- 32 bit little-endian value, lower 8 bit show the actual state of digital inputs

Currently following mark control commands (identified by the 8 bit hexadecimal value for position "

" in a

frame) can be sent to the controller:

Jump to Position

Move to a given coordinate position using the current jump speed and with laser turned off

C = 0x00
AAAA = x-position to move to in range 0..67108863
BBBB = y-position to move to in range 0..67108863
EEEE = z-position to move to in range 0..67108863

Mark to Position

Move to a given coordinate position using the current mark speed and with laser turned on

C = 0x01
AAAA = x-position to move to in range 0..67108863
BBBB = y-position to move to in range 0..67108863
EEEE = z-position to move to in range 0..67108863

Start output

This command has to be called at the end of every marking sequence to ensure marking output really

starts. This is important in case only a few vectors are sent to ensure marking is started but it is recommended
to always use this command.
C = 0x02
AAAA = unused, set to 0
BBBB = unused, set to 0
EEEE = unused, set to 0

Wait for external trigger

Set a trigger point to current position of stream; emission of output data will stop until an external

trigger signal is detected
C = 0x03
AAAA = unused, set to 0
BBBB = unused, set to 0
EEEE = unused, set to 0

Set speed values

Specify the speeds to be used during jump or mark movements (invoked by commands 0x00 and 0x01)

C = 0x04
AAAA = jumpspeed in unit bits per microsecond

BBBB = markspeed in unit bits per microsecond
EEEE = unused, set to 0

Set laser delays

Specify the delays to be used when laser is turned on or off

C = 0x05
AAAA = laser on delay in unit microseconds and in range -10000000..10000000
BBBB = laser off delay in unit microseconds and in range 0..10000000
EEEE = unused, set to 0

Set scanner delays

Specify the delays to be used before and after mark and within a polygon

C = 0x06
AAAA = jumpdelay in unit microseconds
BBBB = markdelay in unit microseconds
EEEE = in-polygondelay in unit microseconds

Stop marking

Tries to halt, continue or stop current output depending on the chosen option

C = 0x07
AAAA = stop option:

0 - tries to stop operation as fast as possible and rejects all data that still may be enqueued for
execution
1 - marking is stopped next time the laser is off but no vector data are flushed, card is still active
2 - controller continues processing at the point where halt occurred (requires a previously called
command 0x07 with stop option 1)

BBBB = unused, set to 0
EEEE = unused, set to 0

Set wobble parameters

Specify the wobble settings to be used for next marking operations

C = 0x08
AAAA = wobble amplitude in X-direction using unit bits and with maximum range of 0..10000000 bits
BBBB = wobble amplitude in Y-direction using unit bits and with maximum range of 0..10000000 bits
EEEE = wobble frequency in unit Hz*100 and in range 1..2500000

Set LP8 outputs

Set LP0..LP7 output pins on laser signal connector

C = 0x09
AAAA - bitpattern to be set on LP0..LP7 output pins, here only lower 8 bits are used.
BBBB = unused, set to 0
EEEE = unused, set to 0

Ping

This command can be used to let the controller send back a state-information. So it can be used to

check if the card is still operating or not.
ATTENTION: this command should not be sent repeatedly and without any delay! This could cause E1803D
scanner controller to stall because the massive data transfer has to be handled. So it is recommended to have a

delay of at least 150 msec between every ping.
C = 0x0A
AAAA - unused, set to 0
BBBB = unused, set to 0
EEEE = unused, set to 0

Set digital outputs

Set DOut0..DOut7 output pins on digital interface connector

C = 0x0B
AAAA - bitpattern to be set on DOut0..DOut7 output pins, here only lower 8 bits are used.
BBBB = bitmask specifying which of the bits in AAAA have to be set or cleared, all these bits in AAAA are left
unchanged, where the corresponding bit in BBBB is 0
EEEE = unused, set to 0

Set lasermode

Specify the laser mode the card has to operate with

C = 0x0C
AAAA - flags specifying the laser mode, here following values have to be or-concatenated to specify the
behaviour of a laser:

•

0x40000000

- laser frequency on LaserA output is turned on immediately and together with

laser gate signal, this flag can't be used together with

0x20000000

•

0x20000000

- laser frequency on LaserA output is turned on after FPK time, this flag can't be

used together with

0x40000000

•

0x10000000

- laser supports FPK on LaserB output

•

0x08000000

- laser frequency has to be turned off and switched to standby-frequency

•

0x04000000

– a frequency can be emitted at LaserB permanently, the related frequency can

be specified with command 0x15

Using these flags following laser types can be configured:

•

-laser:

0x40000000 + 0x08000000

•

YAG-laser with FPK:

0x40000000 + 0x08000000 + 0x10000000

0x20000000 + 0x08000000 + 0x10000000

•

laser with continuously running frequency:

0x40000000

BBBB = unused, set to 0
EEEE = unused, set to 0

Set marking on-the-fly parameters

Specify the parameters used for marking on-the-fly applications

C = 0x0D
AAAA = marking on-the-fly resolution in X-direction in unit bits per encoder increment
BBBB = marking on-the-fly resolution in Y-direction in unit bits per encoder increment
EEEE = unused, set to 0

Set laser frequency

Specify the frequency the laser has to be operated with during marks, usage of these parameters

depends on the lasermode specified with command 0x0C
C = 0x0E
AAAA = frequency in unit Hz and in range 25..20000000 Hz
BBBB = pulse-width in unit microseconds and in range 1..65530 usec
EEEE = unused, set to 0

Set laser standby frequency

Specify the frequency the laser has to be operated with during jumps, usage of these parameters

depends on the lasermode specified with command 0x0C
C = 0x0F
AAAA = frequency in unit Hz and in range 25..20000000 Hz
BBBB = pulse-width in unit microseconds and in range 1..65530 usec
EEEE = unused, set to 0

Set first pulse killer

Specify the pulse width of the FPK signal when laser is turned on, usage of these parameters depends

on the lasermode specified with command 0x0C
C = 0x11
AAAA = FPK pulse width in unit microseconds*100
BBBB = the time the laser frequency has to be started after beginning of FPK using unit microseconds*2, this
value is used only when lasermode flag 0x20000000 is set
EEEE = unused, set to 0

Switch MO-output

Turns the MO-output of laser interface connector on or off

C = 0x12
AAAA = turn MO output on when equal 1, turn it off when 0
BBBB = unused, set to 0
EEEE = unused, set to 0

Release external trigger

When card is waiting for an external trigger this command can be sent to release this external trigger

by software and to continue execution without the need to receive a real external signal
C = 0x13
AAAA = unused, set to 0
BBBB = unused, set to 0
EEEE = unused, set to 0

Wait for external input signal

Stop execution until a defined input bitpattern is detected at configurable input pins DIn0..DIn7 of

digital interface connector
C = 0x14
AAAA = a bitpattern specifying which signals LOW or HIGH have to be detected at digital input pins
BBBB = a bitpattern specifying which of the digital input pins have to be watched for a signal, these bits that are
set to 0 are ignored while these bits, that are set to 1 have to get the state specified in previous parameter in
order to let operation of card continue
EEEE = unused, set to 0

Set LaserB frequency

Specify the frequency LaserB output has to emit; this function can only be used when operating using a

laser mode with flag

0x04000000

set (see command 0x0C above).

C = 0x15
AAAA = frequency in unit Hz and in range 25..20000000 Hz
BBBB = pulse-width in unit microseconds and in range 1..65530 usec
EEEE = unused, set to 0

Wait until on-the-fly-increments have been elapsed

This command adds some special kind of delay to the application. It can be used only when marking on-

the-fly is enabled (by setting the on-the-fly factors), and halts laser marking not for a given time but for a given
distance. Marking is continued only when the given number of increments has elapsed. When no or not enough
increments are counted by the controller, operation only can be stopped.
This command requires firmware version 27 or newer.
C = 0x16
AAAA = positive or negative number of increments to wait for until operation continues; here it depends on the
used counting direction of the encoder if the given distance-value has to be positive or negative, when sign of
the number and counting direction of the encoder do not fit to each other, the controller will halt at this
position for a very long time
BBBB = unused, set to 0

EEEE = unused, set to 0

Insert a delay into the stream of data

This command adds a delay and lets the controller wait for the given time of ticks until the next

command is executed. One tick is equal to 0,5 usec.
This command requires firmware version 12 or newer.
C = 0x18
AAAA = number of ticks to wait for
BBBB = unused, set to 0
EEEE = unused, set to 0

Switch LP8-Latch-output

Turns the LP8-Latch-output of laser interface connector on or off

This command requires firmware version 12 or newer.
C = 0x19
AAAA = turn Latch output on when equal 1, turn it off when 0
BBBB = unused, set to 0
EEEE = unused, set to 0

Specify output for MIP-signal

Specify a single output pin of digital interface connector to be used for "Mark in progress"-signal, this

output pin will be HIGH as long as a marking operation is in progress.
C = 0x2A
AAAA = the number (not a bitpattern!) of the digital output pin to be used for MIP-signal (in range 0..7)
BBBB = unused, set to 0
EEEE = unused, set to 0

Halt/continue current marking operation

Stops the current marking operation on very next appearance of a jump or continue a previously halted

operation.
C = 0x2F
AAAA = 1 to halt marking and 0 to continue a halted operation
BBBB = unused, set to 0
EEEE = unused, set to 0

Specify output for WET-signal

Specify a single output pin of digital interface connector to be used for "Wait External Trigger"-signal,

this output pin will be HIGH as controller is waiting for an external trigger.
C = 0x33
AAAA = the number (not a bitpattern!) of the digital output pin to be used for WET-signal (in range 0..7)
BBBB = unused, set to 0
EEEE = unused, set to 0

Set first row of 2x2 output matrix

Specify the elements m11 and m12 of a 2x2 output matrix which is applied to all coordinate values as

soon as the second half is applied with command 0x41. This matrix can be used to scale, slant, rotate and mirror
the input coordinates in respect to the output positions. For details please check out description of command
0x41 below

This command requires firmware version 3 or newer.
C=0x40
AAAA = the m11 part of the 2x2 matrix multiplied with 1000000
BBBB = the m12 part of the 2x2 matrix multiplied with 1000000
EEEE = unused, set to 0

Set second row of 2x2 output matrix

Specify the elements m21 and m22 of a 2x2 output matrix which is applied to all coordinate values

together with the first row of matrix data which has to be set using command 0x40 in a preceding call. This
matrix can be used to scale, slant, rotate and mirror the input coordinates in respect to the output positions.
Assumed a matrix bases on a 4-elements array, it has following structure:

{m11, m12, m21, m22}

then these matrix values can be used and even combined with each other by multiplying them:

•

rotation:

{cos(angle), -sin(angle), sin(angle), cos(angle)}

•

scaling:

{factorX, 0.0, 0.0, factorY}

•

slant X:

{1.0, 1.0/tan(angle), 0.0, 1.0}

•

slant Y:

{1.0, 0.0, 1.0/tan(angle), 1.0}

•

mirror X:

{-1.0, 0.0, 0.0, 1.0}

•

mirror Y:

{1.0, 0.0, 0.0, -1.0}

This command requires firmware version 3 or newer.
C=0x41
AAAA = the m21 part of the 2x2 matrix multiplied with 1000000
BBBB = the m22 part of the 2x2 matrix multiplied with 1000000
EEEE = unused, set to 0

Download new firmware

Download a new firmware file to the controller and write it to the microSD-card so that it can be used

after next reboot. The binary data of the new firmware have to be appended directly to this command. This
command has to be used in a specific sequence in order to ensure the current firmware file is updated correctly:

•

ensure the card is idle (state-flag

SSSS

is 0)

•

send command 0x45 with length of firmware data and checksum

•

send binary firmware data directly after this command

•

wait until card state returns “active” (by repeatedly sending ping-commands), now in state flag

SSSS

bit

0x4000 (

E180X_CSTATE_WRITING_DATA

) is set

•

wait until card state returns “idle” again (by repeatedly sending ping-commands), the flag 0x4000 no
longer should be set in state flag

SSSS

•

check if an error occurred: when flags 0x8000 (

E180X_CSTATE_WRITING_DATA_ERROR

) is set in

state flag

SSSS

, downloading or writing or checksum calculation failed and the original file was not

replaced; for debugging in such a case the command “cglog” can be called repeatedly until the related
error text was found; when this error flag is set it can be reset only by using command 0x45 again

•

reboot the controller

•

check if the version of the firmware has changed

This command requires firmware 4 or newer.
C = 0x45
AAAA = the length of the firmware file in bytes
BBBB = checksum for verification of the downloaded data, only when this checksum is correct, the old firmware

file will be replaced; the checksum can be calculated using following function (C example code):

unsigned int crc32b(const char *buf,size_t len)
{
int k;
unsigned int crc=0xFFFFFFFF;

while (len--)
{
crc^=*buf++;
for (k=0; k<8; k++)
crc=crc&1 ? (crc>>1) ^ 0x82f63b78 : crc>>1;
}
return ~crc;

17 Supported CNC G-Code Commands

Starting with firmware version 2 E1803D supports G-Codes stored in a file on microSD card. A related CNC file
has to be placed at microSD card. The file extension decides how it is loaded and interpreted, all G-Code ASCII
files need to end with “.CNC”.

Starting with firmware version 3 E1803D supports G-codes sent to the controller via USB serial interface or
Telnet. Such a data transfer has to be started with command “cscnc” or “cxcnc” (for details please refer to
description above).

Starting with firmware version 20 the controller can also be configured to be in G-Code reception mode
permanently by adding a parameter “

cxcnc

” to the e1803.cfg configuration file.

When one of these direct “

cxcnc

” control modes is active, a calling application can watch the execution state

either via a digital output which is configured by using the configuration parameter

wetout

, or via a specific G-

Code control protocol that is described in section 17.5 Control Protocol below.

To allow fast and efficient processing of a CNC file within E1803D, some points have to be noticed. So in order
to improve loading performance it is recommended to:

•

not to have lots of leading or trailing spaces

•

not to make use of large comments

•

have exactly one space between code and related parameter

Beside of that it is mandatory to

•

have a space or CR/LF between two different codes (so e.g. “

G21 G90

” is valid but “

G21G90

” will result

in an error)

•

have no space within a code or within a parameter of a code (so e.g. “

G0 X-0.5 Y.75 Z10

” is valid

but “

G 0 X-0 .5 Y. 75 Z 10

” is not and will result in an error)

•

use a dot as separator in floating point variables (so e.g. “

T1 F6000.0

” is valid but “

T1 F6000,0

” is

not and will result in an error)

Following the G-Code commands are described which are supported.

17.1 General G-Code Characters

Following codes and identifiers are supported by E1803D G-Code interpreter:

Code

Description

Example

Marks the begin of a G-Code file, this code is optional and does
not have any effect

;

Begin of a comment, the remaining line is ignored;
in order to improve loading speed of a G-Code file comments
and spaces at the end of a line should be removed

G21 ; set unit to mm

( )

Encapsulate a comment, all data within the brackets are
ignored;
in order to improve loading speed of a G-Code file comments
and spaces at the end of a line should be removed

G21 (set unit to mm) G90
(use absolute
positioning)

G-commands, please refer below for a description

G1 X25.75 Y31 Z0.25

M-commands, please refer below for a description

T-commands, please refer below for a description

T1 F3000

17.2 Supported “G”-codes

Following “G” codes and identifiers are supported by E1803D G-Code interpreter:

Code

Description

Example

Jump to a specified position using predefined unit mm or inch
and with maximal speed or – when set with command M704 –
with the jump speed that was defined before. The position to
jump to is specified by two or three parameters X, Y and Z. This
movement is done with the laser turned off and by taking laser
and scanner delays into account.

G0 X0 Y0 Z0

Move to a specified position using predefined unit mm or inch
and with a default or – when set with command M704 – with
the mark speed that was defined before. The position to move
to is specified by two or three parameters X, Y and Z. This
movement is done with the laser turned on and by taking laser
and scanner delays into account.

G1 X10 Y10.5 Z11.75

dds a clockwise arc move with the laser turned on. An arc

move starts at the current position and ends at the given XY
coordinate, pivoting around a centre point offset given by the
coordinates I and J or specified by the radius R. This command
has two forms:

IJ-form

•

I and J specifiy an X and Y offset, at least one of them is
always required

•

mixing I or J with R will result in an undefined
behaviour

R-form

•

R specifies the radius, X and Y is mandatory

•

X or Y must be different from the current position

•

mixing I or J with R will result in an undefined
behaviour

Requires firmware version 20 or newer

G2 X12.5 Y30 I10 J10

G2 X19 Y22.5 R 10

Same as G2 but performs counter-clockwise movements, for
details please refer above.

Requires firmware version 20 or newer

G3 X12.5 Y30 I10 J10

G3 X19 Y22.5 R 10

When followed by a parameter „P“ execution is delayed by the
given time (in unit seconds)

G4 P0.002

G17

Select the XY plane for marking operations. This means, given
jump or movement coordinates in X and Y directions are
applied to X and Y plane, optional Z coordinate is applied to
remaining Z direction.

G17

G18

Select the ZX plane for marking operations. This means, given
jump or movement coordinates in X and Y directions are
applied to Z and X plane, optional Z coordinate is applied to
remaining Y direction.

G18

G19

Select the YZ plane for marking operations. This means, given
jump or movement coordinates in X and Y directions are
applied to Y and Z plane, optional Z coordinate is applied to
remaining X direction.

G19

Code

Description

Example

G20

Set measurement unit to inch, means all positions handed over
e.g. with G0 or G1 will be followed by coordinates in inch. In
reality this has no effect for E1803D since calculation of
marking positions is done based on the given working area
which has to be defined with command M709

G20

G21

Set measurement unit to mm, means all positions handed over
e.g. with G0 or G1 will be followed by coordinates in mm. In
reality this has no effect for E1803D since calculation of
marking positions is done based on the given working area
which has to be defined with command M709

G21

G70

G71

G90

Enable absolute positioning, means all positions handed over
e.g. with G0 or G1 will be followed by absolute coordinates
according to the used coordinate system.

G90

G91

Enable relative positioning, means all positions handed over e.g.
with G0 or G1 will be followed by coordinates that are relative
to the previously used position in used coordinate system.

G90

17.3 Supported “M”-codes

Following “M” codes and identifiers are supported by E1803D G-Code interpreter, here all codes in range
700..799 are specific to the E1803D and contain all laser-related parameters and values:

Code

Description

Example

End of program. When this code is found, parsing of the CNC
file is stopped and all following codes are ignored

Set laser on. This command does NOT turn on the laser but sets
the internal state to „on“. This can be used to set e.g. the mark
speed by a following command T1.

Set laser off. This command does NOT turn on or off the laser
but sets its internal state to „off“. This can be used to set e.g. the
jump speed by a following command T1.

M700

Set the used laser type. This command is mandatory and has to
be called prior to every laser-related command. As parameter it
expects a decimal number which corresponds to the lasermode-
types

E180X_LASERMODE_xxx

as described in section „18.1

E1803D Easy Interface Functions“

M700 1073741831

Code

Description

Example

M701

Set the frequency for the laser in unit Hz. This command is a
place holder and has no effect when used with E1803D. Instead
of that, the frequency has to be set lasertype-dependent via
pulse length parameter of commands M715 (stand-by
frequency) and M718 (mark or continuously running
frequency)

M701 25000

M702

Set the laser power in unit 1/1000%. This command has to be
used only in case of specific lasermodes. Resulting from the
mode the effect is different:

E180X_LASERMODE_YAG

– used in case of an SPI-laser, the

power-value is set at analogue output AOut0

E180X_LASERMODE_MOPA

– used in case of an IPG-laser, the

power-value is latched out at LP8 laserport

M702 75555

M703

Set laser-on-delay (at parameter A) and laser-off-delay (at
parameter B) in unit usec.

M703 A100 B200

M704

Set jump-speed (at parameter A) and mark-speed (at parameter
B) in unit mm/min.
By default, when no value has been specified, a jump speed of
1000 mm/sec and a mark speed of 10 mm/sec is assumed.

M704 A8936.592 B3000.00

M705

Set jump-delay (at parameter A), mark-delay (at parameter B)
and in-polygon-delay (at parameter C) in unit usec.

M705 A500 B200 C2500

M707

Set the working area left position (at parameter X), top position
(at parameter Y) and depth position (at optional parameter Z) in
unit specified with commands G70 or G71. Together with M709
this command specifies the valid working field, all positioning
parameters handed over with e.g. G0 and G1 need to be located
within this area.

M707 X-50 Y50

M708

Set jump-delay (at parameter A), mark-delay (at parameter B)
and variable polygon-delay (at parameter C) in unit usec.
Different to command M705 here the third parameter specifies
a variable delay which applies only to polygons at maximum
angle of 180°.

M705 A500 B200 C2500

M709

Set the working area width (at parameter X), height (at
parameter Y) and depth (at optional parameter Z) in unit
specified with commands G70 or G71. Together with M707 this
command specifies the valid working field, all positioning
parameters handed over with e.g. G0 and G1 need to be located
within this area.
By default, when no value has been specified, a working area
size of 100x100x100 mm is assumed.

M709 X-50 Y50

M710

IPG pulse length value in unit nsec. This command is for future
use and currently does not have any effect.

M710 10000

M711

Set wobble distance in X-direction (at parameter X), Y-direction
(at parameter Y) in unit specified by commands G70 or G71 and
wobble frequency (at parameter C) in unit Hz. When all values
are set to 0, wobble marking is disabled completely.

M711 X2.5 Y2.5 C10000

M713

Set first pulse killer value (FPK) for YAG laser types using unit
usec

M713 10000

M714

Set simmer value in unit 1/1000% for SPI laser types, the
corresponding analogue voltage will be set at output AOut1

M714 55000

M715

Set standby-frequency (at parameter A) in unit Hz and standby-
pulsewidth (at parameter B) in unit nsec.

M715 A50000 B1000

Code

Description

Example

M717

Set waveform number for SPI laser types latched out at LP8
laser port.

M717 17

M718

Set laser frequency (at parameter A) in unit Hz and pulsewidth
(at parameter B) in unit usec.

M718 A50000 B10

M719

Switch main oscillator on (1) or off (0). This command can be
used together with SPI or IPG laser types prior to starting a
mark operation to turn MO on or afterwards to turn it off.
Required delays to turn on the MO are handled by E1803D
internally.

M719 1

M720

This command is valid for CNC-operations only, that are
invoked by the command “

cxcnc

”.

It flushes the currently collected CNC data and starts the
related marking operation (if not already active).
This command requires firmware version 20 or newer.

M721

This command can be used to set custom default values for
scanner movements. By default, X and Y axes are assumed to be
centred within their working range and Z is assumed to be at
the very bottom. At the very beginning, all movements with G0
or G1 commands will start at these positions causing a hard
jump of the scanner when its default position is different. So
using this command, an other default/starting position can be
specified which fits to the default position of the scanner. This
command has to be used after setting the working area scale
value with M709, after setting the metric working area offset
with M707 and prior the very first usage of G0/G1.
This command requires firmware version 22 or newer.

M721 Z25.0

17.4 Supported “T”-codes

Following “T” codes and identifiers are supported by E1803D G-Code interpreter:

Code

Description

Example

Set jump or mark speed to be used with commands G0 and G1
in unit mm/min. Here it depends on a previous M-command if
this value specifies the mark-speed (M3) or the jump speed
(M5).

T1 F6000.0

17.5 Control Protocol

While the G-Codes, its syntax and meaning are standardised, the communication protocol that is used to
evaluate the current state of the CNC-like operation, is not defined. Here several different control standards
and protocols exist that are not compatible to each other. So this controller makes use of a very common, slim
and easy to interpret control protocol: the one which is known from the GRBL free software. Due to the
different type of controller, there are some changes which are described here.

Following commands can be sent in between a stream of G-code data (different to GRBL they all have to be
completed with a CR/LF in order to let the client software transmit the command to the controller properly):

•

- check the current state of processing. Here a string is returned which makes use of following syntax:

<STATE|WPos:x,y,z|Pn:0x00000000>

18 Programming Interfaces

The libe1803.dll/libe1803.so shared library provides an own programming interface that gives the possibility to
access and control the E1803D scanner controller card.

Beside of that e1803inter.dll / libe1803inter.so come with some compatibility interfaces for different other
scanner cards like Scanlab™ RTC4™ and SCAPS™ USC1/2. They can be used to access E1803D scanner card
with existing software easily. To do that, the "e1803inter" shared library just has to be renamed to the library
name of the original vendor (like RTC4DLL.DLL, libslrtc4.so or sc_optic.dll). In order to operate E1803D card
with different than the default connection settings, recompilation of code to be reused is necessary. Here at the
very beginning and before initialisation a call to

E180X_set_connection()

has to be added in order to

specify the connection to the card. Apart from this single case, none of the different programming interfaces
should be mixed.

Sources of e1803inter.dll/libe1803inter.so are open and available for free, they can be found in public GIT
repository (available at

https://sourceforge.net/p/oapc/code/ci/master/tree/

18.1 E1803D Easy Interface Functions

The following functions belong to the native programming interface of E1803D scanner card and should be
used preferential in order to get access to all features and full performance of the scanner card. Header files
and additional data required for using this interface can be found online in our public GIT-repository at

https://sourceforge.net/p/oapc/code/ci/master/tree/libe1803/

. There at

https://sourceforge.net/p/oapc/code/ci/master/tree/libe1803/libe1803_test/

also an example application can

be found that demonstrates the usage of the API.

Functions of E1803D Easy Interface are either stream commands that are executed in the order they are called,
or functions that are executed immediately.

The E1803D does NOT use the concept of two or more lists that have to be managed and switched by the
calling application. Here all stream commands simply are sent to the card without the need to provide some
additional management information. Output of data is started only when

E180X_execute()

is called or when

a card-internal threshold is exceeded. This card-internal triggered output of data can be held back by calling
function

E180X_set_trigger_point()

as very first so that marking starts only after an external trigger

signal was detected by the card or when the trigger point was released out of software by calling

E180X_release_trigger_point()

E1803D Easy Interface uses unit “bits” as base for all units and parameters. Since E1803D card internally uses
26 bits resolution for a better accuracy and to minimize round-off errors, all calculations are done with these 26
bits. So the working area always has a size of 26 x 26 bits equal to 67108864 x 67108864. Independent from
real resolution and output of hardware all calculations have to be done within this 26 bit range.

A typical flow of commands that makes use of the programming interface to output data at the scanner
controller card looks like this:

•

E180X_set_connection()

specifies

→

how to connect with the scanner controller card but does

not open the connection yet; this function returns an instance identifier which has to be used for all
following function calls

•

E180X_load_correction()

opens the connection to the scanner controller card (as specified in

→

previous step) and optionally loads a correction table for the scanhead

•

send scanner and laser configuration parameters

•

send marking data via

E180X_jump_abs()

and

E180X_mark_abs()

•

E180X_execute()

ensure marking really starts, this function typically to be called once at the end

→

of every complete marking cycle only to ensure the data are really flushed to the controller

•

E180X_get_card_state()

call this function in a loop to ensure marking really has started by

→

checking one of the flags

E180X_CSTATE_MARKING

E180X_CSTATE_PROCESSING

are set

•

E180X_get_card_state()

call this function in a loop to ensure marking really has ended by

→

checking both flags

E180X_CSTATE_MARKING

and

E180X_CSTATE_PROCESSING

are not set any

•

E180X_close()

close the connection to the controller card and release all related resources

→

A fully functional example application that shows how to use the programming interface is available in our
public GIT-repository at

https://sourceforge.net/p/oapc/code/ci/master/tree/libe1803/libe1803_test/

E1803D Easy Interface provides following functions:

18.1.1 General functions

This section describes all general functions related to accessing the scanner controller card, starting and
stopping operation of, checking the current operational state and other things more which are necessary to
control flow of data and commands,

unsigned char E180X_set_connection(const char *address)

This function has to be called as very first. It is used to specify the IP address where the card is

accessible at (in case of Ethernet connection) or the serial interface (in case of USB connection, “COMx” for
Windows and “/dev/ttyACMx” for Linux where “x” is the number of its interface). By default IP 192.168.2.254 is
used. This is the only function that has to be called in case of both, when compatibility functions and when the
E1803D easy function interface is used.
It returns a card index number that has to be used with all following functions (this is true for Easy Interface and
RTC-compatible functions).
PLEASE NOTE: calling this function does not open the connection to scanner controller card! This is done on
first call to

E180X_load_correction()

Parameters:

address

– a char-array containing the IP in xxx.yyy.zzz.aaa notation or the name of the serial interface (COMx

or /dev/ttyACMx) to be used

Return: the board instance number or 0 in case of an error

void E180X_set_password(const char n,const char *ethPwd)

Sets a password that is used for Ethernet connection of E1803D card. The same password should be

configured on E1803D configuration file e1803.cfg with parameter "

passwd

" to add an additional level of

security to an Ethernet controlled card.
PLEASE NOTE: usage of this password does NOT provide enough security to control the card via networks that
are accessible by a larger audience, publicly or via Internet! Also when this password is set, the card always
should operate in secured, separated networks only!
Every card and every connection should use an own, unique password that can consist of up to 48 characters
containing numbers, lower- and upper-case letters and punctuation marks. Due to compatibility reasons no
language-specific special characters should be used.
When connected via USB serial interface, this password is ignored. In this case no authentication is done.

Parameters:

ethPwd

– the password to be used to authorise at an E1803D card. To reset a local password for connecting to

a card that doesn't has an Ethernet password configured, hand over an empty string "" here

void E180X_close(unsigned char n)

Closes the connection to a card and releases all related resources. After this function was called, no

more commands can be sent to the card until

E180X_set_connection()

and

E180X_load_correction()

n_load_correction_file()

load_correction_file()/

ScSCIInitInterface()

is called again.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

int E180X_set_debug_logfile(const unsigned char n,const char *path,const
unsigned char flags)

This function can be used during development to check an own application regarding called commands

and their parameters. It lets libe1803 write all function calls into a logfile so that it is possible to evaluate the
real order of commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

path

– full path to the file which has to be used as debug log file

flags

– a bunch of OR-concatenated flags which specify what function calls have to be written into or filtered

from the log output; when 0x00 is specified here, the log file is kept quite small. When 0x01 is set, all motion-
related function calls are added too, when 0x02 is set, all calls which check the state of the card are added to
the log file.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_sync(const unsigned char n,const unsigned int flags,const unsigned
int value)

This function sends a synchronisation

value

to the controller. As soon as marking reaches the related

position in stream, the value returned by function

E180X_get_sync()

changes to the value given here.

This command delays execution of the data by 0,5 usec, so it should not be used excessively. A value of
0xFFFFFFFF disables this function.
This function requires firmware version 3 or newer.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– currently unused, set to 0 for future compatibility

value

– the value to be used as sync-identifier, here on every call a different value should be handed over in

order to differentiate what is returned by

E180X_get_sync()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

unsigned int E180X_get_sync(const unsigned char n)

Returns a sync-identifier as set by

E180X_set_sync()

as soon as the related position in stream was

reached.
This function requires firmware version 3 or newer.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return: the last sync-identifier which was identified and processed in stream of commands or 0xFFFFFFFF
when function is not used/turned off

int32_t E180X_execute(const uint8_t n, const uint32_t flags)

Starts execution of all previously sent commands in case card is not already outputting these data. This

function should be called typically once as soon as all vector data have been sent to the controller. It should be
called in every sequence of commands, even when the controller is already marking to terminate the sequence
of vectors which have been submitted. This call does not necessarily start the marking operation as the
controller is free to decide to do this at an earlier point in time but it ensures a proper transmission of all data
from control-PC to the controller. To exactly define when marking has to start, function

E180X_set_trigger_point()

should be used.

When parameter

flags

is set to 0, the function works asynchronously, means after flushing the marking data it

returns immediately. In this case, the calling application has to check for the marking states “marking” and “idle”
to find out if marking is completed (by using function

E180X_get_card_state()

When parameter

flags

is set to

E180X_COMMAND_FLAG_SYNC

, the function blocks, until marking has

completed or has been stopped. In this case no further calls to

E180X_get_card_state()

are necessary, as

the card state can be assumed to be “idle” when the function returns.
In general and independent from this function, marking is finished only when STOP (ExtStop signal input or

E180X_stop_execution()

) is invoked or when the internal buffer is empty. When internal buffer runs

empty because subsequent data are not sent fast enough, an additional call to

E180X_execute()

is necessary

in order to output the remaining data.
This is not a stream command since it controls the already sent stream of commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_stop_execution(unsigned char n)

Stops the currently running execution as fast as possible and drops all data and commands that still may

be queued. Calling this function also would drop all laser and scanner parameters that are already sent to the
controller but not yet processed. Thus after calling this function it may be necessary to set scanner and laser
parameters again in order to ensure they are used for following operations.
This is not a stream command since it controls the current stream of commands.

PLEASE NOTE:

this function should not be called on the off-chance “to be sure nothing is running”. The

command works asynchronously and causes a state-change which can have some unwanted side-effects when
it is used without a specific reason. So calling the function should be done only when the controller is really in
state marking/running, and after calling it, no other functions have to be used until the state
(

E180X_get_card_state()

) has changed back to idle. As the stop is done as fast as possible, the point, at

what the stream is stopped, is undefined. Means any function that has been called between the last call to

E180X_execute()

and

E180X_stop_execution()

may not have an effect and probably needs to be

repeated.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_halt_execution(unsigned char n,unsigned char halt)

Halts or continues the processing and output of marking data. On

halt=1

marking is stopped next

time the laser is turned off. Different to a full stop, no vector data are dropped. On continue (

halt=0

)

controller continues processing at the point where halt occurred. When marking is stopped with

E180X_stop_execution()

the halt-condition is cleared too, means on next transmission of new marking

data they are processed without the need to explicitly continue last operation.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

halt

– 1 to halt operation next time the laser is off, 0 to continue a previously halted operation

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_trigger_point(unsigned char n)

Specifies a point in data stream where execution has to stop until an external trigger signal (mark start)

or a manual release of this trigger point is detected. This expects a rising edge on ExtStart input or calling of
function

E180X_release_trigger_point()

This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_release_trigger_point(unsigned char n)

This function should be called only when a previous call to

E180X_set_trigger_point()

was

done. It acts like an external trigger signal, releases the waiting condition and lets the controller start
processing. So this function provides some kind of software-simulated external start-signal.
ATTENTION: this command will not arrive at the controller when there is no more space left on it, means when
all controller-internal buffers are filled. So after a call to

E180X_set_trigger_point()

and during sending

of commands and data to the controller, application has to ensure there is some space left in controller's
buffers. This can be done by calling

E180X_get_free_space()

with flag

E180X_FREE_SPACE_PRIMARY

for checking the available space in primary buffer. It is recommended to leave space for at least 10000 elements
in primary buffer in order to let a call to

E180X_release_trigger_point()

work properly.

When the buffers already have been filled completely, this function will no longer work and marking can be
started only by applying the ExtStart hardware signal.
This is not a stream-command, it is applied to controller immediately.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

unsigned int E180X_get_startstop_state(unsigned char n)

This function returns a bit pattern that informs about state of the start and stop input pins.

This is not a stream command since it returns the current state immediately. Here “current state” means the last
known state. When the state changes during this call, it may be possible the previous, no longer actual state is
given back since transmission of data from controller to host is done asynchronously and independent from a
call to this function.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return: a bit pattern specifying the current state:

•

bit 0 and 1 (0x00000003) specify if the start input was set after last call of this function, when these
bits are set, a rising edge has been detected at this input; calling this function resets the internal state
of these bits, means when it is called again and when no new rising edge has been detected meanwhile,
these bits will be 0

•

bit 2 and 3 (0x0000000C) specify if the stop input was set after last call of this function, when they are
set, a rising edge has been detected at this input; calling this function resets the internal state of these
bits, means when it is called again and when no new rising edge has been detected at top input
meanwhile, these bits will be low

•

bit 12 (0x00001000) this bit signals the start input is low, as long as this bit is set no start input signal is
detected

int E180X_get_card_state(const unsigned char n,unsigned int *state)

This function returns a bit pattern that informs about cards current operational state. Here “current

state” means the last known state. When the state changes during this call, it may be possible the previous, no
longer actual state is given back since transmission of data from controller to host is done asynchronously and
independent from a call to this function.
The card-states are enqueued internally in order to not to lose a “busy”-state which may be available for a very
short time only in case of very small and fast marking cycles. So every state change caused by the calling
application results in on state change returned by this function. This means for every marking cycle the
application has to wait for two state changes: first wait until this function signals “busy”
(

E180X_CSTATE_MARKING|E180X_CSTATE_PROCESSING

), next wait until this function signals “ready” (0).

During transfer of vector data and scanner/laser parameters this function should be called as rarely as possible:
every call of

E180X_get_card_state()

performs a fully cycle of transmission and receiving of data to and

from the controller. Dependent on the current transmission state this may result in submission of a small block
of data which does not uses the full available bandwidth. On excessive use of this function this can slow down
the whole transfer of data.
This is not a stream command, it returns the current state immediately.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

state

– pointer to a variable where the card state has to be written to: a bit pattern of or-concatenated

constants specifying the current state:

•

E180X_CSTATE_MARKING

– card is currently marking

•

E180X_CSTATE_PROCESSING

– card has received some data that are enqueued for marking

•

E180X_CSTATE_WAS_START_PRESSED

– the ExtStart input was triggered, this flag is cleared after it

has bean read and is set again only when ExtStart was triggered again

•

E180X_CSTATE_WAS_STOP_PRESSED

– the ExtStop input was triggered, this flag is cleared after it

has bean read and is set again only when ExtStop was triggered again

•

E180X_CSTATE_FILE_WRITE_ERROR

– this flag is returned only in case stand-alone data are written

to the microSD card and in case an file error occurs during this procedure. As writing an EPR file is done
as asynchronous stream, errors during this procedure are not announced by the functions which are
called but only by this error state. For more information about writing of stand alone data please refer
to section “18.1.8 Writing of stand-alone data”

•

E180X_CSTATE_WAIT_EXTTRIGGER

– the controller is in state “marking” but is not yet processing

any data as it is waiting for an external trigger

•

E180X_CSTATE_HALTED

– the controller is in state “marking” but is not yet processing any data as it is

currently halted by function

E180X_halt_execution()

•

E180X_CSTATE_WAIT_INPUT

– the controller is in state “marking” but is not yet processing any data

as it is waiting for a specific input pattern at the digital inputs

•

E180X_CSTATE_SAC_READY

– this flag applies only to stand-alone modes; it is similar to output

DOut0 and signals the controller has loaded a stand-alone file and is ready for marking

•

E180X_CSTATE_SAC_MARKING

– this flag applies only to stand-alone modes; it is similar to output

DOut1 and signals the controller is marking a loaded EPR file

•

E180X_CSTATE_SAC_CTLXY

– this flag applies only to stand-alone modes; it signals a “

ctlxy

”

command was received and the related mode is active

When the function returns an error code instead of

E180X_OK

, this value is undefined and can't be used.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_delay(unsigned char n, double delay)

Pause marking for the given time/wait for execution of the next command in stream for the given time.

This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

delay

– time to wait until marking continues in unit usec, smallest possible value is 0,500 usec

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_get_free_space(unsigned char n,int buffer)

This function returns the space (in unit "commands") that is free in one of the buffers of E1803. Here

parameter

buffer

decides which buffer has to be checked.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

buffer

– expects a constant which decides what buffer has to be checked, it has to be set to one of the

following values:

•

E180X_FREE_SPACE_PRIMARY

– return size of the primary buffer; it can be used to avoid memory on

host system is filled which may happen when vector data are sent to the controller while it's internal
buffers are already full. In this case these data would have been stored on host side consuming some
memory there. Using this function this problem can be avoided by sending commands only in case this
function returns a value that is (much) larger than 0.
The primary buffer that can be checked by using this value is one of two available buffers on E1803D
controller. The primary one has a size of 1 million and is used to feed the secondary buffer (with a size
of 20 million). So when this function returns 1000000, this does not mean the buffer is empty and no
vector data currently processed – they still may be stored in secondary buffer. So to check the
operational state of the controller, only function

E180X_get_card_state()

can be used.

This buffer has also to be checked when function

E180X_release_trigger_point()

is used in

order to ensure the command can arrive at the controller. For a detailed description please refer to
explanation of

E180X_release_trigger_point()

above.

•

E180X_FREE_SPACE_SECONDARY

– return size of the secondary buffer; this one is filled by data from

primary buffer and contains raw commands (like single micro vectors that concatenate to a full vector
during output).

Return: -1 in case the function failed or the amount of free space in primary buffer.

void E180X_get_version(unsigned char n, unsigned short *hwVersion, unsigned
short *fwVersion)

Get the hardware and software version of the used board. It is recommended to call this function after

successful connect always and to check if used hardware and firmware version is at least a version that is
known to work with own software.
This is not a stream command, it is executed immediately and independent from all other commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

hwVersion

– pointer to a variable where the hardware revision/version number is written into

fwVersion

– pointer to a variable where the revision/version number of the firmware running on the board is

written into

int E180X_get_library_version()

Returns an integer value which is an identifier specifying the version of this shared library. In decimal

notation this identifier uses format "Mmmrrr" where "M" is the major version, "m" the minor version number
and "r" the release count. The bigger the whole returned number is, the newer the library is.

int E180X_get_serial_number(const unsigned char n,char *serial,const int length)

Reads the serial number of the used board and returns it as 7 bit ASCII data.
This is not a stream command, it is executed immediately and independent from all other commands.
This function requires a firmware version 12 or newer.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

serial

– pointer to a char-array where the serial number has to be stored into, this memory area needs to

have a size of at least 40 bytes

length

– available length of the memory area where

serial

points to

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_ana_read(const unsigned char n,const unsigned int flags,unsigned short
*a)

Read a value from one of the analogue inputs. Here the parameter

flags

decides which output has to

be accessed in which way:

•

E180X_COMMAND_FLAG_ANA_AIN0

– read data from analogue input AIn0

•

E180X_COMMAND_FLAG_ANA_AIN1

– read data from analogue input AIn1

•

E180X_COMMAND_FLAG_ANA_AIN2

– read data from analogue input AIn2

The value returned in

is always a 16 bit value in range 0..65535 independent from the real resolution of the

hardware.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– flags specifying when the command has to be executed and which analogue output has to be set

– value read from the analogue input, independent on the real resolution of the hardware, here always a 16

bit value is returned, means a value of 65535 would correspond to full input voltage of 5V
Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

This function requires firmware version 4 or newer and the Multi-IO expansion board or the Intelli-IO
expansion board.

18.1.2 Laser and scanner related functions

This section describes all functions which are related to the scanhead and laser control and therefore have
influence on the signals at the laser interface and the XY2-100 connector. The related interfaces are described
in section „6.7 Laser Signals “ and section „6.6 Scanner Signals“.

int E180X_load_correction(unsigned char n, const char* filename, unsigned char
tableNum)

Opens connection to the card and loads a correction file to be used during vector data output. In case a

previously loaded correction table has to be flushed and no other correction has to be used, parameter
"

filename

" needs to be empty.

This function has to be called for first time on initialisation and before any vector data are sent to the board. It is
mandatory to call this function at least once since it establishes connection to E1803D card. So when no
correction file has to be used this function still has to be called but with an empty filename “”.
This function supports different correction table file formats directly and without previous conversion:

•

BeamConstruct .bco high resolution files

•

Scanlab .ctb and .ct5 files

•

SCAPS .ucf files

•

Raylase .gcd files

•

Rofin .fcr files

•

CTI/GSI .xml files

•

Sunny .txt 5x5 point correction files

•

Han’s .crt files

This is not a stream-command, means its data may be applied immediately and independent from current
stream state.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

filename

– the full path to the correction file to be loaded from file system, when "" is specified here, a

previously used correction file is flushed and no/neutral correction is used as long as no other correction table

is given

tableNum

– the 0-based correction table number these data have to be loaded for; it is possible to download

up to 16 different correction tables and to switch between them during operation using function

E180X_switch_correction()

Return:

E180X_OK

or an

E180X_ERROR_

- or RTC-compatible return code in case of an error

100

int E180X_switch_correction(unsigned char n, unsigned char tableNum)

Switches between up to 16 correction tables on the fly. When a table-number is given where no file was

downloaded before using function

E180X_load_correction()

, no correction is performed on all following

vector data.
This is a stream-command, means the new correction is applied to vector data sent to the card after this
command but NOT to already sent but not yet processed data. Thus on-the-fly switching between correction
tables is possible.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

tableNum

– the 0-based table number of the correction that has to be used for all following vector data

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_xy_correction(const unsigned char n,const unsigned int flags const
double gainX, const double gainY,const double rot,const int offsetX,const int
offsetY,const double slantX,const double slantY)

Sets size correction factor and offset for X and Y direction of working area as well as a rotation.

This function will overwrite all corrections specified with

E180X_set_matrix()

This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– an optional set of OR-concatenated flags which specify the correction/modification of the output

further.

E180X_COMMAND_FLAG_XYCORR_FLIPXY

exchanges the X and Y coordinates and therefore flips the

output,

E180X_COMMAND_FLAG_XYCORR_MIRRORX

mirrors the X-coordinates,

E180X_COMMAND_FLAG_XYCORR_MIRRORY

mirrors the output in Y-direction. If none of these additional

corrections is required, set

flags

to 0.

gainX

– scale factor in x-direction, 1.0 means no scaling

gainY

– scale factor in y-direction, 1.0 means no scaling

rot

– rotation of whole working area in unit degrees

offsetX

– offset in x-direction in unit bits, 0 means no offset

offsetY

– offset in y-direction in unit bits, 0 means no offset

slantX

– trapezoidal correction along X-axis in range -45..45°

slantY

– trapezoidal correction along Y-axis in range -45..45°

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_z_correction(const unsigned char n,const int flags,const double
gainZ,const int offsetZ,const unsigned int h,const double xy_to_z_ratio)

Set additional Z correction parameters.

This function may be used to adjust the Z-axis and in cases where third axis is used with a large Z working range
for an additional Z-focus-correction. Here additional deviation occurs when no F-Theta lens is used caused by
the fact that the beam is always sent from the centre of the scanhead – which causes some kind of projection
resulting in larger or smaller X and Y positions depending on the real Z height. This deviation can be adjusted by
an internal Z-focus-correction.
Beside of that, the Z-position can be adjusted via a gain factor and by using an offset, shifting it into a specific
direction

This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands and changed values apply only to these vector data and coordinates, which are sent after
calling this function.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

101

flags

– optionally set the flag

E180X_COMMAND_FLAG_ZCORR_MIRRORZ

to invert the orientation of the Z-

axis, for normal scanhead working in correct direction, this value can be left at 0

gainZ

– scales the Z axis by the given factor, when set to 1.0, no scaling is applied to the Z-coordinates

offsetZ

– shifts the Z-position into the given direction (using unit bits), when set to 0, no offset is applied to

the Z-coordinates

– the vertical height from last mirror of the scanhead to the working area (Z-position 0 of working area) in

unit bits, when set to 0, the Z-focus-correction is disabled

xy_to_z_ratio

– factor specifying the ratio between maximal horizontal working area size and maximal

vertical movement size. As an example: when the working area has a size of 100 x 100 mm and the Z-axis has a
maximum movement range of -20 mm .. 20 mm, the ratio to be set is 2,5 (100 mm horizontal divided by 40 mm
vertical); when this value is set to a ratio equal or smaller than 0.0, the Z-focus-correction is disabled

For more details about the Z-focus correction applied by setting the parameters

and

xy_to_z_ratio

please refer to the image below:

Here “h” is the height from the position where the beam hits the last mirror to the position of the working area
at z=0 position (in unit bits). “xy” is the width of the working area to be used together with the “z” range from
“z=min” to “z=max” to calculate the

xy_to_z_ratio

. All working area parameters like its width “xy” and the

“z”-range are expected to be the theoretical maximum of the full range, not the – possibly smaller – range used
in a specific setup.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_speeds(unsigned char n, double jumpspeed,double markspeed)

Set scanner speed values to be used for all following vector data and until not replaced by other speed

values.
This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands. So values set here apply only to these vector data that are sent after this command.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

jumpspeed

– scanner movement speed during jumps (movements when laser is off) in unit bits/msec and

range 1..4294960000

markspeed

– scanner speed during mark (movements when laser is on) in unit bits/msec and range

1..4294960000

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_laser_delays(unsigned char n,double ondelay,double offdelay)

102

Set laser delay values to be used for all following vector data and until not replaced by other delay

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

ondelay

– laser on delay in unit microseconds, can be a negative or a positive value

offdelay

– laser off delay in unit microseconds, must be a positive value

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_scanner_delays(const unsigned char n,const unsigned int
flags,const double jumpdelay,const double markdelay,const double polydelay)

Set scanner delays in unit microseconds. Smallest possible value and resolution is 0.5 microseconds.

This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands. So values set here apply only to these vector data that are sent after this command.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– here some flags can be set which add some further functional specifications and features to this

function. At the moment following flags are supported and can be OR-concatenated with each other:

•

E180X_COMMAND_FLAG_SCANNER_VAR_POLYDELAY

– when this flag is set, the value set via

polydelay

is not applied statically to every point within a polygon, but it is set dynamically depending

on the angle between two lines; no angle (a straight line) results in no delay while an 180 degree angle
results in a full delay as set by value

polydelay

; this flag requires firmware version 2 or newer

jumpdelay

– the jump delay value in unit microseconds

markdelay

– the mark delay value in unit microseconds

polydelay

– the in-polygon delay value in unit microseconds

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_scanner_mode(const unsigned char n, const unsigned int mode)

Sets the operation mode for the scanner, this function influences the communication mode with the

scanhead.
This function requires firmware version 10 or newer.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

mode

– one of the following values can be set:

•

E180X_SCANNERMODE_XY2_100

– standard and default mode, output is normal XY2-100 with 16 bit

resolution and normal 100 kHz output cycle clock

•

E180X_SCANNERMODE_XY2_200

– output is XY2-200 with 16 bit resolution and 200 kHz output

cycle clock

103

•

E180X_SCANNERMODE_XY2_100E

– output is extended XY2-100E with 18 bit resolution and normal

100 kHz output cycle clock

•

E180X_SCANNERMODE_XY2_200E

– output is extended XY2-200E with 18 bit resolution and 200

kHz output cycle clock

•

E180X_SCANNERMODE_SL

– requires the “ NX-02 Extension Board” and enables output of scanner

control data using a two-wire serial protocol with 100 kHz output cycle clock; when this mode is
enabled, the connector of the SL Extension Board is used while the main D-SUB25 connector is turned
off

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_laser_mode(unsigned char n, unsigned int mode)

Sets the laser mode to be used for all following operations, this value influences the signals emitted at

the connectors of the card. This function has to be called prior to setting any other laser parameters (like
frequency, standby-frequency, power).
This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

mode

– the laser mode, here one of the following values is possible:

•

E180X_LASERMODE_CO2

– for controlling CO

lasers, this mode supports stand-by frequency at

LaserA output (to be set with function

E180X_set_standby()

) and PWM-modulated frequencies

during marking and for power control (to be set with function

E180X_set_laser_timing()

)

•

E180X_LASERMODE_YAG1

– for controlling YAG lasers, this mode supports stand-by and Q-Switch

frequency at LaserA output (to be set with function

E180X_set_standby()

) and a first pulse killer

signal at output LaserB that is issued on beginning of a mark together with the Q-Switch frequency (to
be set with function

E180X_set_fpk()

Here Q-Switch signal is started together with laser gate and FPK pulse. At end of mark when laser gate
is turned off stand-by frequency is emitted at LaserA.

•

E180X_LASERMODE_YAG2

- for controlling YAG lasers, this mode supports stand-by and Q-Switch

frequency at LaserA output (to be set with function

E180X_set_standby()

) and a first pulse killer

signal at output LaserB that is issued on beginning followed by Q-Switch frequency that starts when
FPK pulse has finished:

104

Here FPK and laser gate are started together. Q-Switch signal is started at end of FPK pulse. At end of
mark when laser gate is turned off, stand-by frequency and pulse-width is emitted at LaserA instead of
Q-Switch frequency.

•

E180X_LASERMODE_YAG3

– for controlling YAG lasers, this mode supports stand-by and Q-Switch

frequency at LaserA output (to be set with function

E180X_set_standby()

) and a first pulse killer

signal at output LaserB that is issued on beginning followed by Q-Switch frequency that starts after a
freely configurable time period “yag3QTime”:

Here FPK and laser gate are started together. Q-Switch signal is started after yag3QTime has elapsed
according to the beginning of FPK pulse. This time value can be set using function

E180X_set_fpk()

At end of mark when laser gate is turned off, stand-by frequency and pulse-width is emitted at LaserA
instead of Q-Switch frequency.

•

E180X_LASERMODE_CRF

– for controlling lasers that require a continuously running frequency (like

fiber-lasers), this frequency is emitted at LaserA output and can be set and changed by calling function

E180X_set_standby()

•

E180X_LASERMODE_DFREQ

– for controlling special lasers that require two frequencies, the second,

continuously running frequency is emitted at LaserB output and can be set with function

E180X_set_laserb()

•

E180X_LASERMODE_MOPA

– for fiber lasers which are driven by a main oscillator and power amplifier

and that are power-controlled via LP8 digital port and latch bit

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_laser(const unsigned char n,const unsigned int flags,const char
on)

Switches the laser on or off independent fro many mark or jump commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– handling flags specifying the behaviour of this command,

E180X_COMMAND_FLAG_STREAM

to use it

as stream command,

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current

stream and execution state; in case

E180X_COMMAND_FLAG_STREAM

is used, please ensure this function call is

followed by other stream commands, elsewhere the laser is turned off for security reasons as soon as no more
data are available to process in order to not to let the laser fire while the card is waiting

– set to 1 to turn the laser on or to 0 to turn it off

105

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_wobble(unsigned char n,unsigned int x,unsigned int y,double freq)

This function gives the possibility to not to let the laser beam follow the given path directly but to

rotate around the specified path and lasers current position. Depending on chosen wobble-parameters and
marking speed this results either in a thick or a sinusoidal line. This call sets wobble parameters to be used for
all following vector data and until not replaced by other wobble values or by 0 which disables wobble mode.
This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

– wobble amplitude in x direction in units bits and range 1..10000000

– wobble amplitude in y direction in units bits and range 1..10000000

freq – wobble frequency in Hz in range 1..25000

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_jump_abs(unsigned char n,int x,int y,int z)

Perform a jump (movement with laser turned off) to the given position. This causes a galvo movement

from current position to the one specified by this functions parameters using the jump speed and taking the
jump delay into account:

When laser was turned on before this function is called, laser is turned off at the beginning with a delay
specified by laser off delay (please refer to description of

E180X_mark_abs()

for a diagram showing laser off

delay too).
This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands. So values set here apply only to these vector data that are sent after this command.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

– the x-coordinate in unit bits the scanner has to jump to (in range -33554431..33554432)

– the y-coordinate in unit bits the scanner has to jump to (in range -33554431..33554432)

– the z-coordinate in unit bits the scanner has to jump to (in range -33554431..33554432, requires a

hardware that is equipped with Z- channel)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_mark_abs(unsigned char n,int x,int y,int z)

106

Perform a mark (movement with laser turned on) to the given position. This causes a galvo movement

from current position to the one specified by this functions parameters using the mark speed and taking the
mark delay into account. When laser was turned off before this function is called, laser is turned on at the
beginning with a delay specified by laser on delay:

This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

– the x-coordinate in unit bits the scanner has to move to (in range -33554431..33554432)

– the y-coordinate in unit bits the scanner has to move to (in range -33554431..33554432)

– the z-coordinate in unit bits the scanner has to move to (in range -33554431..33554432, requires a

hardware that is equipped with Z- channel)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_get_pos(const unsigned char n,int *x,int *y,int *z)

This function returns the last position of the scanner:

•

when an XY3-100 scanhead is connected, that provides its actual position, these values are returned

•

when no such scanhead is connected, the last nominal position sent to the head are returned

The function needs the controller to be in idle-mode, means no marking operation is allowed to run in order to
get the position information.
Please note: when a correction file is set, and/or a matrix is set and/or an offset is set and/or any other function
is used which modifies the position data, the coordinates returned here are

not

the values which have been sent

with the last call to

E180X_jump_abs()

E180X_mark_abs()

E180X_set_pos()

as they have been

processed and modified by these correction functions. So while the jump/mark functions set position data
according to the desired coordinate system, the values returned by

E180X_get_abs()

are the real-world

coordinates at the hardware.
This function requires firmware version 16 or newer.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_pos(unsigned char n,int x,int y,int z,unsigned char laserOn)

Perform a raw, immediate movement to the given position.

HANDLE WITH CARE! This function causes galvo movement to the given position immediately, without
respect to any mark or jump speed values, without micro-vectorisation or intermediate steps! This means it can
result in a very heavy movement for the galvos and in worst case it may cause some damage! Since the resulting
movement speed may be way too high for the used galvos, they may overshoot and need some time until the

107

desired position is reached. So this function is mainly intended to be used for very small position changes in
respect to the galvos current position.
This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

– the x-coordinate in unit bits the scanner has to jump to (in range -33554431..33554432)

– the y-coordinate in unit bits the scanner has to jump to (in range -33554431..33554432)

– the z-coordinate in unit bits the scanner has to jump to (in range -33554431..33554432, requires a

hardware that is equipped with Z- channel)

laserOn

– specifies if the movement has to be done with laser turned on (1) or off (0)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_pixelmode(const unsigned char n,const unsigned int mode,const
double powerThres,const unsigned int res)

Set the operational mode for

E180X_mark_pixelline()

. This function influences the behaviour

when marking a pixel line. This is a stream-command, means its parameters are applied at a point in stream that
is relative to the other stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

mode

– pixel marking mode, this parameter can be set to:

•

0 – default mode, while marking a pixel line the controller tries to perform jumps when power
is below of the given threshold

powerThres

to save marking time

•

E180X_PIXELMODE_NO_JUMPS

– no jumps are performed, the given power threshold is

ignored and the full pixel line is done with marking speed; this mode is slower but can result in
more accurate and more exact images

•

E180X_PIXELMODE_JUMP_N_SHOOT

– marking of the line is no longer done with a

continuous movement but with a sequence “jump to position shoot jump to next position

→

shoot jump to next position shoot...”; here the shoot-time is equal to the laser-off-delay

→

minus laser-on-delay as set with function

E180X_set_laser_delays()

•

E180X_PIXELMODE_HW_POWER_CONTROL

– when this flag is set, the controller card takes

care about setting the power for the pixels. This works only when a lasermode is chosen where
the scanner card supports native power control. When this flag is set, a power-callback,
handed over together with a call to

E180X_mark_pixelline()

is ignored.

•

E180X_PIXELMODE_GATE_POWER_CONTROL

– this is a special bitmap marking mode where

no real power control is supported. When this flag is set, the LaserGate output is toggled
depending on the required output power. Since this output supports only states LOW and
HIGH, this bitmap marking mode results in black and white images only

•

E180X_PIXELMODE_JUMP_LEAVE_POWER

– during bitmap marking, when no flag

E180X_PIXELMODE_NO_JUMPS

is set, below of a specific power threshold a jump is

performed. By default, prior to such a jump, the laser power is set to 0 to handle faultily lasers
that have spurious emissions even when LaserGate is at LOW. For laser types, which do not
suffer from such emissions, this flag can be set. It leaves the last power value active also during
jumps, which saves some marking time. So this flag can be used for speed-optimising bitmap-
marking.

powerThres

– this value is used only in default mode, when the marking power for some pixels is below of the

given value (in unit percent), a jump is performed to save marking time, during this jump the laser is off and no
marking is done

res

– reserved, set always to 0

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

108

int E180X_mark_pixelline(const unsigned char n,int x,int y,int z,const int
pixWidth,const int pixHeight,const int pixDepth,unsigned int pixNum,const double
*pixels,E180X_power_callback power_callback,void *userData)

This function can be used to mark a single line of a bitmap image. Here horizontal, vertical and even 3D

bitmap lines (going into depth) can be marked. Direction and orientation of the line to be marked can be chosen
freely. A full image can be created by concatenating several lines. Power control during marking of such a
bitmap line is not limited to some specific power outputs, it can be fully customised via a callback function.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

x, y, z

– the starting coordinates of the line in unit bits

pixWidth

– the width of a single pixel (in unit bits), when this is set to a value greater or smaller than 0 while all

the others are equal 0, a horizontal line is drawn; the sign of the value specifies the marking direction

pixHeight

– the height of a single pixel (in unit bits), when this is set to a value greater or smaller than 0 while

all the others are equal 0, a vertical line is drawn; the sign of the value specifies the marking direction

pixDepth

– the depth of a single pixel (in unit bits, requires a 3D-capable scanhead), when this is set to a value

greater or smaller than 0 while all the others are equal 0, line goes into depth; the sign of the value specifies the
marking direction

pixNum

– the number of pixel data contained in the array of intensity values handed over with the following

parameter

pixels

– an array of double-values with a length equal the number of pixels specified with

pixNum

and with

an allowed range of 0.0..100.0 specifying the intensity; every entry of this array is equal to one pixel of the
bitmap, so a greyscale-pixelline with brightness values in range 0..255 has to be converted to values in range
0.0..100.0

power_callback

– this is a callback function of type

int (*E180X_power_callback)(unsigned char n, double power, void *userData)

which is used to set the power for every pixel. There these

E180X_

-functions have to be called that belong to

the used laser type and set the power values according to it's hardware capabilities. Within the power callback
function only stream commands are allowed to be called. It is not possible to use external devices that are not
synchronous to E1803D command stream. The power callback has to return with

E180X_OK

when setting of

power was successful. In case of an error the appropriate error code has to be returned, the pixel marking
function will be cancelled in such a case too and does not finish marking of the line. Parameter

is the 1-based

board instance number specifying the board the power has to be changed for, power is the power to be set in
unit percent and

userData

are some free to use, custom data that can be handed over on call to

E180X_mark_pixelline()

userData

– here some custom data can be handed over which are forwarded on and handed over at every call

of the power-callback

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_matrix(unsigned char n, double m11, double m12, double m21, double
m22)

Specify a 2x2 matrix that contains scaling and rotation corrections for the output. When a given matrix

element parameter has a value smaller or equal -10000000 it is ignored and the previous/default value is kept
at this position in matrix.
This function will overwrite all corrections specified with

E180X_set_xy_correction()

This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

m11

– first matrix element in first row

m12

– second matrix element in first row

m21

– first matrix element in second row

m22

– second matrix element in second row

109

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

unsigned int E180X_get_head_state(const unsigned char n,const unsigned int
flags)

Returns head status information in case the connected scanhead provides such data via STATUS signal

of XY2-100 interface. When the head does not provide such information or returns invalid data or a proprietary
data format, the function returns 0xFFFFFFFF. Otherwise the returned value can be AND-concatenated with

HEAD_STATE_MASK

to find out what kind of head is connected: a resulting value of

HEAD_STATE_2D_HEAD

identifies a 2D scanhead,

HEAD_STATE_3D_HEAD

a 3D scanhead. Depending on this, the returned value

contains the following state information:

Bit

HEAD_STATE_2D_HEAD

2D Head Remarks

HEAD_STATE_3D_HEAD

3D Head Remarks

19 / C2

Identification bit

18 / C1

Identification bit

17 / C0

Identification bit

16 / S15 Power state

X servo ready

15 / S14 Temperature state

X temperature state

14 / S13 In-field

X tracking error

13 / S12 X-position ACK

12 / S11 Y-position ACK

Y servo ready

11 / S10 1

Y temperature state

10 / S9

Y tracking error

9 / S8

8 / S7

Power state

Z servo ready

7 / S6

Temperature state

Z temperature state

6 / S5

In-field

Z tracking error

5 / S4

X-position ACK

4 / S3

Y-position ACK

X channel parity error

3 / S2

Y channel parity error

2 / S1

Z channel parity error

1 / S0

CLK channel error

0 / Par

Always 0

Parity bit (even)

The exact usage of these fields depends on the used head, so for further details please refer to the related
scanhead manual.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– when flag

E180X_COMMAND_FLAG_HEAD_STATE_RAW

is set here, the state-information from the

head are returned as they are received. When this flag is not used, the returned data are checked and filtered –
only in case they fit to the bit patterns shown above, the received data are returned, elsewhere the error
information 0xFFFFFFFF is given back.

Return: the received (filtered or raw) XY2-100 state data as received from the head or 0xFFFFFFFF in case of
an error

int E180X_set_laser_timing(unsigned char n, double frequency, double pulse)

110

Set the frequency and pulse-width to be used during marking at LaserA output of laser connector.

This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

frequency

– emitted frequency in unit Hz and in range 25..20000000 Hz

pulse

– pulse width in usec, this value has to be smaller than period length that results out of frequency

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_standby(const unsigned char n,const double frequency,const double
pulse, const bool force)

Set the frequency and pulse-width to be used during jumps, as stand-by frequency or as continuously

running frequency at LaserA output of laser connector.
This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

frequency

– emitted frequency in unit Hz and in range 25..20000000 Hz. When a value of 0 is given, the

frequency at LaserA output is turned off at end of mark.

pulse

– pulse width in usec, this value has to be smaller than period length that results out of

frequency

force

– when set to true, the new stand-by frequency is not applied the next time the laser is turned off, but

immediately

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_laserb(const unsigned char n,const double frequency,const double
pulse)

Set the frequency and pulse-width to be used at LaserB output of laser connector. To use LaserB as

second frequency output, a laser mode with flag

E180X_LASERMODE_DFREQ

has to be configured.

This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

frequency

– emitted frequency in unit Hz and in range 25..20000000 Hz

pulse

– pulse width in usec, this value has to be smaller than period length that results out of frequency

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_set_fpk(unsigned char n, double fpk, double yag3QTime)

Set the parameters for first pulse killer signal that is emitted via laser connector whenever the laser is

turned on; this applies to YAG-modes only and is emitted as one single pulse at LaserB output.
This is a stream-command, means its parameters are applied at a point in stream that is relative to the other
stream commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

fpk

– the length of the first pulse killer signal in usec

yag3QTime

– the length of the first pulse killer signal in usec, this value is used only when laser mode

E180X_LASERMODE_YAG3

is set, elsewhere it is ignored

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

111

int E180X_lp8_write(const unsigned char n,const unsigned int flags,const
unsigned char value)

Sets the LP8_0..LP8_7 outputs of 8 bit laser port of laser interface connector without touching the

related latch output. Total execution time of this command is 1 usec.
Depending on the value of parameter flags this is either a stream-command (means it is executed at a point in
stream that is relative to the other stream commands) or a direct command (means it is executed immediately
on calling).

Parameters:

– the 1-based board instance number as returned by E180X_set_connection()

flags

– handling flags specifying the behaviour of this command,

E180X_COMMAND_FLAG_STREAM

to use it

as stream command,

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current

stream and execution state

value

– the 8 bit value to be set at LP8 port

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_lp8_write_latch(unsigned char n, unsigned char on, double
delay1,unsigned char value, double delay2,double delay3)

Sets the LP8 8 bit laser port of laser interface connector with freely definable delays and toggles the

related latch output automatically; calling this function causes the following sequence of commands:

•

turn latch bit on/off

•

wait for

delay1

usecs

•

set LP8

•

wait for

delay2

usecs

•

turn latch bit off/on

•

wait for

delay3

usecs

The whole execution time of this sequence is 1.5 usecs for setting LP8 outputs and toggling latch plus

delay1

plus

delay2

plus

delay3

This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

– specifies if the latch bit has to be set to HIGH (on=1) or LOW (on=0) on first step, on second step it will

toggle to value

!=on

delay1

– delay to be issued after setting/clearing the latch bit for the first time

value

– the 8 bit value to be set at LP8 port

delay2

– delay to be issued after setting LP8 output and before clearing/setting the latch bit

delay3

– delay to be issued after clearing/setting the latch bit for the second time

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_lp8_write_mo(const unsigned char n, const unsigned int flags, const
unsigned char on)

Sets the main oscillator output MO of laser interface connector to be used with e.g. fiber lasers.

Depending on the value of parameter

flags

this is either a stream-command (means it is executed at a point in

stream that is relative to the other stream commands) or a direct command (means it is executed immediately
on calling).

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– handling flags specifying the behaviour of this command,

E180X_COMMAND_FLAG_STREAM

to use it

as stream command,

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current

stream and execution state

112

– the state the MO output has to be switched to; PLEASE NOTE: the main oscillator depends on the current

internal state of the laser. Thus turning it on is always possible but turning off the MO is possible only when the
controller is not yet handling the laser-off delay, means it is not possible as long as the laser is turned on. In such
a case this command is ignored.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_lp8_write_pilot(const unsigned char n, const unsigned int flags, const
unsigned char on)

Sets the pilot laser output pin of the laser interface connector.

Depending on the value of parameter

flags

this is either a stream-command (means it is executed at a point in

stream that is relative to the other stream commands) or a direct command (means it is executed immediately
on calling).
This function requires hardware revision 1.8 or newer and firmware version 19 or newer.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– handling flags specifying the behaviour of this command,

E180X_COMMAND_FLAG_STREAM

to use it

as stream command,

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current

stream and execution state

– the state the pilot laser output has to be switched to; PLEASE NOTE: the pilot laser signal may affect the

internal state of the laser. Thus turning it on may prevent other functions of the laser being able to be used. For
details about such dependencies, please check the manual of the used laser.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_ana_write(const unsigned char n,const unsigned int flags,const
unsigned short a)

Write a value to one of the analogue outputs. Here the parameter

flags

decides which output has to

be accessed in which way:

•

E180X_COMMAND_FLAG_ANA_AOUT0

– send data to analogue output AOut0

•

E180X_COMMAND_FLAG_ANA_AOUT1

– send data to analogue output AOut1

One of these flags can be combined with

E180X_COMMAND_FLAG_STREAM

to use it as stream command or

with

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current stream and

execution state. Parameter

needs to be always a 16 bit value independent from the real resolution of the

hardware.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– flags specifying when the command has to be executed and which analogue output has to be set

– value to be set at the analogue output, independent on the real resolution of the hardware, here always a 16

bit value has to be given, means a value of 65535 would correspond to full output voltage of 10V
Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

18.1.3 Digital interface functions

The following section describes all functions which can be used to describe data at the digital interface as
described in section „6.8 Digital Interface“ and section „6.8.1 Marking On-The-Fly Signals“.

int E180X_digi_write(const unsigned char n,const unsigned int flags,const
unsigned int value,const unsigned int mask)

Sets the 8 bit digital output port.

Depending on the value of parameter

flags

this is either a stream-command (means it is executed at a point in

stream that is relative to the other stream commands) or a direct command (means it is executed immediately
on calling).

113

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– handling flags specifying the behaviour of this command,

E180X_COMMAND_FLAG_STREAM

to use it

as stream command,

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current

stream and execution state

mask

– specifies which of the bits in "value" have to be used for setting and clearing output data, only these bits

that are set to 1 in

mask

are changed according to the given

value

– the 8 bit value to be set at digital out port

Return:

E180X_OK

or an

E180X_ERROR_

return code in case of an error

int E180X_digi_pulse(const unsigned char n, const unsigned int flags, const
unsigned int in_value, const unsigned int mask, const unsigned int pulses, const
double delayOn, const double delayOff)

Send a sequence of pulses to the 8 bit digital interface. When the controller works with a firmware

version 5 or later, this operation causes nearly no data transmission load.
This command is available as stream-command only (means it is executed at a point in stream that is relative to
the other stream commands).
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– currently only

E180X_COMMAND_FLAG_STREAM

is supported here

mask

– specifies which of the bits in "value" have to be used for setting and clearing output data, only these bits

that are set to 1 in

mask

are changed according to the given

value

– the 8 bit value to be set at digital out port

pulses

– specifies how often the output has to be set/cleared

delayOn

– the delay (in unit usec) which has to be issued every time after setting the output, the minimal

resolution of this value is 0,5 usec

delayOff

– the delay (in unit usec) which has to be issued every time after clearing the output, the minimal

resolution of this value is 0,5 usec

Return:

E180X_OK

or an

E180X_ERROR_

return code in case of an error

int E180X_digi_read(const unsigned char n,const unsigned char flags,unsigned int
*value)

Reads the 8 bit digital input port.

This is not a stream-command, means it is executed immediately and returns current state of the digital inputs.
When parameter

flags

is set to 0, the state of the digital inputs is requested actively which results in a

separate data transmission to the controller card. On excessive use of this command, that may slow down
communication with the controller dramatically. Alternatively

flags

can be set to

E180X_COMMAND_FLAG_PASSIVE

which does not cause such a request. Instead of this the last known state of

the digital inputs is returned by this function based on the last regular feedback from the controller or based on
the last call to this function with this passive-flag not set. So when this flags is used, the returned

value

may be

several hundred milliseconds old.
When marking on the fly is enabled using function

E180X_digi_set_motf()

, digital inputs 0 and 1 (and

optionally also digital inputs 2 and 3 in case of 2D marking on-the-fly) are used for MOTF-encoder and
therefore not available as standard inputs. In such a case state of these bits is undefined and does not reflect
the current input state caused by the external encoder.

Parameters:

- the 1-based board instance number as returned by

E180X_set_connection()

value

– pointer to a variable where the current digital input state has to be written into.

When the function returns an error code instead of

E180X_OK

, this value is undefined and can't be used.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

114

int E180X_digi_wait(unsigned char n,unsigned long value,unsigned long mask)

Stop execution and output of data until the given bitpattern was detected at digital inputs of digital

interface connector. Here parameter

mask

specifies which of the bits at the input have to be checked, they have

to be set to 1. These bits within

mask

that need to be ignored have to be set to 0. Parameter

value

itself

defines the states of the bits that has to be detected at the input to continue processing of data. All bits of value
that correspond to bits of mask, that are 0, are ignored.

Parameters:

- the 1-based board instance number as returned by

E180X_set_connection()

value

– the expected bitpattern at digital input

mask

– specifies which of the input bits and value bits have to be used for comparison

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_digi_set_motf(const unsigned char n,const unsigned int flags,const
double motfX,const double motfY)

Disables or enables marking on-the-fly functionality and specifies factors for X- and Y-direction. When

this function is called with values for

motfX

motfY

greater than 0, marking on-the-fly is enabled and digital

inputs 0 and 1 of the digital interface are no longer available as general purpose inputs. Now they are used as
decoder inputs for a 90 degree phase shifted encoder signal for marking on-the-fly functions. When both
parameters

motfX

and

motfY

are set to 0, marking on-the-fly is disabled and inputs 0 and 1 no longer work as

encoder inputs.
When tune flag “2” is set (for 2D marking on-the-fly, please refer to description of e1803.cfg parameters above),
the two factors for X and Y are assigned to separate encoder inputs. Here factor for X applies to values received
on digital inputs 0 and 1 and factor for Y applies to values received on digital inputs 2 and 3.
Depending on value of parameter

flags

this is or is not a stream-command, means it switches states of digital

inputs 0 and 1 (plus optionally 2 and 3) and marking on-the-fly functionality at the related position in stream or
immediately.
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– when flag

E180X_COMMAND_FLAG_DIRECT

is set, the new MOTF-factors are applied immediately,

when flag

E180X_COMMAND_FLAG_STREAM

is used instead, the command acts as stream-command and sets

the new MOTF-factors as soon as this command is due in current stream of command.

motfX

– marking on-the-fly factor for X-direction in unit bits per encoder increment

motfY

– marking on-the-fly factor for Y-direction in unit bits per encoder increment

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_digi_set_motf_sim(unsigned char n, double motfX, double motfY)

Disables or enables simulated marking on-the-fly functionality and specifies factors for X- and Y-

direction. When this function is called with values for

motfX

motfY

greater than 0, simulated marking on-

the-fly is enabled and internal 100 kHz signal generator is used to create static marking on-the-fly pulses in
positive direction. A possibly enabled on-the-fly operation using external signals on digital inputs 0 and 1 of
digital interface connector is disabled. When both parameters

motfX

and

motfY

are set to 0, marking on-the-

fly is disabled completely.
This is not a stream-command, means it enables simulated marking on-the-fly functionality immediately.
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

motfX

– marking on-the-fly factor for X-direction in unit bits suitable for to be simulated movement-speed on

100 kHz encoder counting frequency

motfY

– marking on-the-fly factor for Y-direction in unit bits suitable for to be simulated movement speed on

100 kHz encoder counting frequency
Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_digi_wait_motf(const unsigned char n, const unsigned int flags, const
double dist)

115

Halts the current marking operation for a given distance of the on-the-fly encoder. Different to

E180X_delay()

this function does not use a time to wait until marking is continued but a distance specified

by parameter

dist

and measured by the connected encoder. To use this function marking on-the-fly has to be

enabled by calling

E180X_digi_set_motf()

E180X_digi_set_motf_sim()

before.

This command is useful for applications where several vector data have to be marked which in total are larger
than the available working area (e.g. marking long texts on a cable). For this the vector data to be marked have
to be concatenated in suitable pieces where each is smaller than the available working area. Then these pieces
can be marked consecutively with following sequence of commands:

E180X_set_trigger_point()

(used only once at the very beginning to define the starting point

and to initialise internal MOTF counters). This trigger point later has to be released either by applying
an ExtStart signal or by calling function

E180X_release_trigger_point()

E180X_digi_wait_motf()

to wait for the beginning of the first piece of vector data to be marked,

the given distance is equal to the distance from the starting point in 1)

E180X_jump_abs()

E180X_mark_abs()

for vector data of character to be marked; here one piece

of the whole set of vector data has to be sent to the controller

E180X_digi_wait_motf()

to wait for the distance until next set of vector data; here the distance

between the starting points of two pieces of vector data has to be given

5. continue at 3) until all pieces of vector data have been sent

This is a stream-command, means it is executed at a point in stream that is relative to the other stream
commands.
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– specifies how the distance value is handed over, with

E180X_COMMAND_FLAG_MOTF_WAIT_INCS

value in unit “encoder increments” is expected, with

E180X_COMMAND_FLAG_MOTF_WAIT_BITS

a distance in

unit “bits” is expected. In second case the X-on-the-fly factor of a preceding call to

E180X_digi_set_motf()

E180X_digi_set_motf_sim()

is used.

dist

– the distance to wait for until marking has to be completed, the unit of this value is specified with

preceding parameter

flags

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_digi_set_motf_powerctl(const unsigned char n,const unsigned int
flags,const double motfSpeed,const double lowValue, const double highValue)

Perform a marking on-the-fly speed-dependent power adjustment. This function uses the currently set

power as well as the handed over nominal speed to calculate the real power based on the real marking on the
fly speed. So to use this functionalities, following sequence of commands is necessary:
- set the on-the-fly factors/enable marking on the fly by calling

E180X_digi_set_motf()

- set the current power, here dependent on the used laser type the appropriate function has to be called
- call

E180X_digi_set_motf_powerctl()

to define automatic power adjustment parameters

This function requires firmware version 7 or newer.
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– specifies the method of power control/the power control output which has to be used. Here exactly

one of the following flags can be used:
-

E180X_COMMAND_FLAG_ANA_AOUT0

– to use analogue output A0 for power control

E180X_COMMAND_FLAG_ANA_AOUT1

– to use analogue output A01for power control

E180X_COMMAND_FLAG_FREQ_LASERA

– this is not really a power control method but enables the option to

change the frequency of LaserA output while the pulse-pause-ratio of the related waveform is kept constant

motfSpeed

– nominal speed (in unit bits/sec) which corresponds to the current nominal power set in previous

call, when the real, measured marking on-the-fly speed rises above this value, the related power output is
adjusted to also ensure a higher power output, when the actual, measured MOTF-speed becomes lower than
the nominal

motfSpeed

, power is adjusted to lower values

lowValue

– lower clipping value, the automatically adjusted power will never become smaller than this

highValue

– upper clipping value, the automatically adjusted power will never become bigger than this

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

116

int E180X_digi_set_mip_output(unsigned char n,unsigned int value,unsigned int
flags)

This function can be used to specify which of the digital outputs has to be used for signalling "marking

in progress". When value is set to 0xFFFFFFFF, this function is disabled and scanner controller card does not
provide this signal automatically. When the number of the digital output (in range 0..7) is given as value, the
related digital output pin is used for "mark in progress" signal.
PLEASE NOTE: here the number (means the count) of one specific output pin has to be given, not a bitpattern
specifying one or more pins!
During operation the selected "mark in progress" pin is HIGH as long as the scanner is moving and/or the laser
is on and/or a delay is processed and when marking parameter are processed between these operations. It
becomes LOW as soon as no more marking data are available and current operation is stopped or when scanner
is waiting for an external trigger signal (ExtStart).
This is not a stream-command, when it is called it is applied to current configuration immediately.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

value

– the number of the digital output to be used for this signal

flags

- currently unused, set always to 0 for compatibility

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_digi_set_wet_output(const unsigned char n,const unsigned int
value,const unsigned int flags)

This function can be used to specify which of the digital outputs has to be used for signalling "waiting

for external trigger". When

value

is set to 0xFFFFFFFF, this function is disabled and scanner controller card

does not provide this signal automatically. When the number of the digital output (in range 0..7) is given as
value, the related digital output pin is used for "waiting for external trigger" signal.
PLEASE NOTE: here the number (means the count) of one specific output pin has to be given, not a bitpattern
specifying one or more pins!
During operation the selected "waiting for external trigger" pin is HIGH as long as the controller is waiting for
an external trigger to be applied at ExtStart input. It becomes LOW as soon as this signal has been detected or
when current operation is stopped.
This is not a stream-command, when it is called, it is applied to current configuration immediately.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

value

– the number of the digital output to be used for this signal

flags

– currently unused, set always to 0 for compatibility

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

18.1.4 Serial interface functions

Following functions are described which can be used to access the serial interface as described in section “6.9
Serial Interface”

int E180X_uart_write(const unsigned char n,const unsigned int flags,const char
*sendData,const unsigned int in_length,unsigned int *sentLength)

Send data to RS232/RS485 serial interface using the serial interface parameters which are configured

in e1803.cfg configuration file. This command is executed depending on the given flags, means the data are sent
to the serial interface independent from the context the function has to be called within or in context of the
current stream.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– here pairs of flags a) and b) have to be OR-concatenated with each other to specify how to transmit

the data exactly:

117

E180X_COMMAND_FLAG_UART1

– this flag specifies which UART interface has to be used for

transmitting data, at the moment only one UART interface exists, so only this flag can be set and has
always to be set

E180X_COMMAND_FLAG_STREAM

– when this flag is combined with the flag from a), data are

enqueued to the current stream and transmitted depending on its position within that stream

E180X_COMMAND_FLAG_DIRECT

– when this flag is combined with the flag from a), data are

transmitted immediately (means as fast as possible and not within the regular stream of data)

E180X_COMMAND_FLAG_ASYNC

– when this flag is combined with the flag from a), data are

transmitted asynchronously (means as soon as the next package of data is sent to the controller which
either is done on

E180X_execute()

or when enough other data are handed over, on arrival at the

controller these data are sent to the UART interface immediately and not within the regular stream of
data); in other words, this is a specific variant of

E180X_COMMAND_FLAG_DIRECT

where data are

transmitted immediately but the controller doe not wait for the response to arrive

sendData

– pointer to byte-array which contains the data which have to be sent

in_length

– length of the data in

sendData

sentLength

– pointer to a variable where the amount of data is returned which really has been sent by this

function; when a different return code than

E180X_OK

is given back, this value is undefined.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_uart_read(const unsigned char n,const unsigned int flags,char
*recvData,const unsigned int maxLength,unsigned int *receivedLength)

Receive data from RS232/RS485 serial interface using the serial interface parameters which are

configured in e1803.cfg configuration file. This command is executed immediately, means it checks for data
arrived at serial interface independent from the context the function has to be called within.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– here pairs of flags a) and b) have to be OR-concatenated with each other to specify how to receive the

data exactly:

E180X_COMMAND_FLAG_UART1

– this flag specifies which UART interface has to be used for

receiving of data, at the moment only one UART interface exists, so only this flag can be set
b)

E180X_COMMAND_FLAG_DIRECT

– when this flag is combined with the flag from a), data are

tried to be read immediately, this means the function does not return until some data could be read
from the serial interface or until a timeout occurred
b)

E180X_COMMAND_FLAG_ASYNC

– when this flag is combined with the flag from a), data are

received asynchronously, this means when no data are available on call of the function, it returns
immediately with

E180X_OK

and setting

receivedLength

to 0. In such a case the function has to be

called later again in order to receive some data. As soon as some data have arrived,

receivedLength

specifies the size of these data on return of the function

recvData

– pointer to byte-array where received data have to be stored into, this buffer should have a size of

at least 513 bytes

maxLength

– maximum number of bytes the buffer specified by

recvData

is able to store

receivedLength

– pointer to a variable where the amount of data is returned which really has been received

by this function; when a different return code than

E180X_OK

is given back, this value is undefined.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

18.1.5 Intelli-IO extension functions (IO-mode)

Following functions require the Intelli-IO Extension Board as described in section “10.2 Intelli-IO Interface in
IO mode”. They can be used to access the digital IOs of this board. The analogue inputs of the Intelli-IO board
are not directly subject to this extension and therefore can be read by general function

E180X_ana_read()

as described above. All functions described here require firmware version 5 or newer.

118

int32_t E180X_motion_digi_write(const uint8_t n, const uint32_t flags, const
uint32_t in_value, const uint32_t mask)

Sets the second 8 bit digital output port which is located on the Intelli-IO extension.

Depending on the value of parameter

flags

this is either a stream-command (means it is executed at a point in

stream that is relative to the other stream commands) or a direct command (means it is executed immediately
on calling).
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– handling flags specifying the behaviour of this command,

E180X_COMMAND_FLAG_STREAM

to use it

as stream command,

E180X_COMMAND_FLAG_DIRECT

to execute it immediately and independent on current

stream and execution state

mask

– specifies which of the bits in "value" have to be used for setting and clearing output data, only these bits

that are set to 1 in

mask

are changed according to the given

value

; this parameter requires a firmware version

12 or newer, elsewhere it is ignored and the function assumes a

mask

-value of 0xFFFFFFFF which results in an

output bitpattern which is exactly the given value with all bits set/cleared

value

– the 8 bit value to be set at digital out port

Return:

E180X_OK

or an

E180X_ERROR_

return code in case of an error

int32_t E180X_motion_digi_read(const uint8_t n, const uint32_t flags, uint32_t
*value)

Reads the second 8 bit digital input port which is located on the Intelli-IO extension. Since this

extension board provides only six input bits, the upper two bits always will be 0.
This is not a stream-command, means it is executed immediately and returns current state of the digital inputs.
When parameter

flags

is set to 0, the state of the digital inputs is requested actively which results in a

separate data transmission to the controller card. On excessive use of this command, that may slow down
communication with the controller dramatically. Alternatively

flags

can be set to

E180X_COMMAND_FLAG_PASSIVE

which does not cause such a request. Instead of this the last known state of

value

may be

several hundred milliseconds old.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

value

– pointer to a variable where the current digital input state has to be written into.

When the function returns an error code instead of

E180X_OK

, this value is undefined and can't be used.

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

18.1.6 Intelli-IO extension functions (motion mode)

Following functions require a Intelli-IO Extension Board as described in section “10.3 Intelli-IO Interface in
motion mode” and can be used to control motion operations. Here command options that set a value or start a
motion are always available in two options: as stream (flag

E180X_COMMAND_FLAG_STREAM

is set) or as direct

command (flag

E180X_COMMAND_FLAG_DIRECT

is set). Stream-commands are always executed in the order

they are sent to the controller and the controller always waits until one motion has been finished before any
other command in this stream is executed. Direct commands are executed immediately, here it is up to the user
to wait until a motion operation has ended. This wait-operation is the same as for every other scanner
operation: first one has to wait until operation started, next one has to wait until operation has ended. It is
mandatory to always wait for both state changes.
All the functions described here require at least firmware version 6.

int E180X_motion_set_steps(const unsigned char n, const unsigned int flags,const
double steps)

119

Set the factor which defines the relation between steps (increments) of the used stepper motor and the

distance that it travels. This value needs to be specified prior to all other operations in order to allow correct
calculation of all distances and speeds as expected by the other functions as described below. For the E1803
motion extension no default value exists, so if no factor is set, motion operations are done with an undefined,
random value which may lead to unexpected results.
The E1803 motion extension programming interface always makes use of real distances (mostly in unit mm) and
does not expect the calling application to do the conversion from increments to mm.
Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

)

steps

– factor which defines relation between stepper motor steps and travel distance (in unit increments/mm

for longitudinal movements or increments/degree for rotational movements)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_set_pulsewidth(const unsigned char n, const unsigned char
width)

Set the width of the setp-pulses to the given value in unit usec. By default this value is set to 10 usec which
should fit for most applications. Setting it to smaller typically values does not make any sense, setting larger
values may be necessary in case of some slo stepper motor drivers. In this case please note: larger pulse with
values result in a smaller maximum step frequency as these large pulses may overlap each other in such cases
and result in a permanent HIGH-signal instead of a step-frequency.
This function requires firmware version 11 or newer.
Parameters

– the 1-based board instance number as returned by

E180X_set_connection()

width

– the new pulsewidth to be used in range 10..200 usec

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_set_limits(const unsigned char n,const unsigned int flags,const
double llimit,const double hlimit,const unsigned double in_slimit)

Set motion limits for axis operations. When any follow-up command tries to set values beyond these

limits, these values are clipped to the allowed range set with this function.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

)

llimit

– lower motion limit (in unit mm or degrees)

hlimit

– upper motion limit (in unit mm or degrees)

in_slimit

– speed limit (in unit mm/sec or degrees/sec)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_set_accel(const unsigned char n,const unsigned int flags,const
double accel)

Set the acceleration to be used for start and stop for all motion operations and for the specified axes.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

)

120

accel

– acceleration (in unit mm/sec

or degrees/sec

)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_set_speed(const unsigned char n,const unsigned int flags,double
speed)

Set the speed for the next motion operations and for the specified axes. Since all motions are combined

movements where all axes start and stop at the same time, the speed value given here is some kind of
recommendation which may not be used at the next motion operation. Here following rules apply:

•

a speed value given here is never exceeded

•

when only one axis is moved by a motion operation

E180X_motion_move_abs()

E180X_motion_move_rel()

at the same time, the speed value given here is used for this movement

•

when more than one axis is moved by a motion operation

E180X_motion_move_abs()

E180X_motion_move_rel()

at the same time, the controller calculates speeds for all axes which

ensure they all start and stop their movements at the same time

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

)

speed

– motion speed (in unit mm/sec or degrees/sec)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_move_abs(const unsigned char n,const unsigned int flags,const
double pos0,const double pos1,const double pos2,const double pos3)

Start a motion operation to the given absolute positions using at maximum the speeds specified with

E180X_motion_set_speed()

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

); the additional flag

E180X_COMMAND_FLAG_DONOTWAIT

can be set to perform a movement parallel to other operations, for

details please refer to description of function

E180X_motion_stream_wait()

below

pos0

– absolute motion position for axis 0 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_0

is set

pos1

– absolute motion position for axis 1 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_1

is set

pos2

– absolute motion position for axis 2 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_2

is set

pos3

– absolute motion position for axis 3 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_3

is set

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_move_rel(const unsigned char n,const unsigned int flags,const
double pos0,const double pos1,const double pos2,const double pos3)

Start a motion operation which changes the current axis position by the value specified here and by

using at maximum the speeds specified with

E180X_motion_set_speed()

Please note: in case of a direct operation it is mandatory to wait for the end of all previous motion operations
before this function is called. Elsewhere the real current axis position is not known and a relative movement is
not possible.

121

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

); the additional flag

E180X_COMMAND_FLAG_DONOTWAIT

can be set to perform a movement parallel to other operations, for

details please refer to description of function

E180X_motion_stream_wait()

below

pos0

– change the motion position for axis 0 (in unit mm or degrees) by the value given here; this value is used

only when flag

E180X_COMMAND_FLAG_AXIS_0

is set

pos1

– change the motion position for axis 1 (in unit mm or degrees) by the value given here; this value is used

only when flag

E180X_COMMAND_FLAG_AXIS_1

is set

pos2

– change the motion position for axis 2 (in unit mm or degrees) by the value given here; this value is used

only when flag

E180X_COMMAND_FLAG_AXIS_2

is set

pos3

– change the motion position for axis 3 (in unit mm or degrees) by the value given here; this value is used

only when flag

E180X_COMMAND_FLAG_AXIS_3

is set

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_move_abs_async(const unsigned char n,const unsigned int
flags,const double pos0,const double pos1,const double pos2,const double pos3)

Start an asynchronous motion operation to the given absolute positions using at maximum the speeds

specified with

E180X_motion_set_speed()

. Comparing to

E180X_motion_move_abs()

, this function:

•

waits until a possibly running, previous motion operation at the same axes has completed

•

starts this motion operation

•

continues without waiting for the end of this motion, so other operations (except motions) can be
executed in parallel

This command requires firmware version 15 or newer.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (currently only

E180X_COMMAND_FLAG_STREAM

supported) and for which axes the given values have to be applied (

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

); the

additional flag

E180X_COMMAND_FLAG_DONOTWAIT

can be set to perform a movement parallel to other

operations,

for details please refer to description of function

E180X_motion_stream_wait()

below

pos0

– absolute motion position for axis 0 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_0

is set

pos1

– absolute motion position for axis 1 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_1

is set

pos2

– absolute motion position for axis 2 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_2

is set

pos3

– absolute motion position for axis 3 (in unit mm or degrees); this value is used only when flag

E180X_COMMAND_FLAG_AXIS_3

is set

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_stream_wait(const unsigned char n)

The two motion functions

E180X_motion_move_abs()

and

E180X_motion_move_rel()

described above can be called with the command flag

E180X_COMMAND_FLAG_STREAM

set to ensure

sequential operation within the normal stream of commands. In this mode processing of further commands is
halted until the related motion operation has finished. Since the motion extension board uses an own micro-
controller, here also parallel operations are possible: when for these motion functions the flag

E180X_COMMAND_FLAG_DONOTWAIT

is set together with

E180X_COMMAND_FLAG_STREAM

, operation does

not wait but continues to process other data in stream. In such a case motion is performed in parallel to these
operations done on the main laser controller.

122

This is true only for non-motion operations, before the next motion operation is called, the application has to
wait until the previous one has been finished. Within a stream this has to be done by calling function

E180X_motion_stream_wait()

, it re-synchronises the stream with the parallel motion operation. So the

rule is: as long as a motion operation was started with the combined flags

E180X_COMMAND_FLAG_STREAM|

E180X_COMMAND_FLAG_DONOTWAIT

, a following call to

E180X_motion_stream_wait()

is mandatory

before any other motion-function is used.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_stop(const unsigned char n)

Stop a currently running motion operation immediately. Since axes always perform a combined

movement where all axes start and stop at the same time, the stop function always affects all axes which are
moving. When

E180X_stop_execution()

is called instead, not only axis movements but also all other

operations are stopped.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_get_pos(const unsigned char n,const unsigned char
axisNum,double *pos)

Retrieves the current position of an axis. This command is always a direct command retrieving the

current axis position. Thus it does not make use of command-flags.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

axisNum

– the number of the axis (but not the axis-flags!) in range 0..3 where the current position has to be

retrieved for

pos

– pointer to a variable where the current position (in unit mm) of the axis with the number specified in

axisNum

has to be stored into; when the function does not return

E180X_OK

, this value is undefined

and can't be used

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_reference(const unsigned char n,const unsigned int flags,const
unsigned int mode,const double leaveDist,double speedStep0,double speedStep1)

Starts a referencing operation (=homing sequence) to have a defined position for the axis. The

referencing sequence consists of following steps:

•

move to reference switch (connected to reference-input) with first referencing speed

speedStep0

•

leave the reference switch by the given distance

leaveDist

•

move to reference switch (connected to reference-input) with second referencing speed

speedStep1

•

set the position of the referenced axis to -1 – this value can be used to check if referencing was
successful or not, when

E180X_motion_get_pos()

returns a different value than -1 for the

referenced axis, something went wrong and referencing failed

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

)

mode

– specifies how referencing has to be done exactly, here a bunch of OR-concatenated flags can be handed

over: one of the flags

E180X_MOTION_REFSTEP_N

(to search for the reference input in negative

direction) or

E180X_MOTION_REFSTEP_P

(to search for the reference input in positive direction)

123

which optionally can be combined with flag

E180X_MOTION_REFSTEP_INV_SWITCH

to have

inverted logic on the reference input

leaveDist

– distance (in unit mm or degrees) to move off the reference switch after the switch was found for

the first time

speedStep0

– referencing speed (in unit mm/sec or degrees/sec) to find the reference switch for the first time

(this value can be larger than

speedStep1

but should be small enough to not to overrun the switch)

speedStep1

– referencing speed (in unit mm/sec or degrees/sec) to find the reference switch for the second

time (this value should be smaller than

speedStep0

and is responsible for the accuracy of the

referenced

position)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_motion_set_pos(const unsigned char n,const unsigned int flags,const
double pos)

This function does not cause any movement but resets the current axis position(s) to a new value. It can

be used e.g. after successful referencing to set the initial positions to some own values. All following movement
operations then are done in respect to the position values given here.

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– command flags specifying the type of function call (

E180X_COMMAND_FLAG_STREAM

E180X_COMMAND_FLAG_DIRECT

) and for which axes the given values have to be applied

(

E180X_COMMAND_FLAG_AXIS_0

E180X_COMMAND_FLAG_AXIS_1

E180X_COMMAND_FLAG_AXIS_2

E180X_COMMAND_FLAG_AXIS_3

)

pos

– the new position value to be set for the specified axis/axes (in unit mm or degrees)

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

18.1.7 Miscellaneous functions

int E180X_write(unsigned char n, unsigned int flags, unsigned int value)

Writes some specific data to outputs at E1803D controller. Here

flags

decides which output to use

and

value

specifies what has to be written to this output. Additionally

flags

decides weather this is a stream-

command (means it is executed at a point in stream that is relative to the other stream commands) or a direct
command (means it is executed immediately on calling).

Parameters:

– the 1-based board instance number as returned by

E180X_set_connection()

flags

– handling flags specifying the behaviour of this command, when

E180X_COMMAND_FLAG_STREAM

set, it is used as stream command,

E180X_COMMAND_FLAG_DIRECT

specifies to execute it immediately and

independent on current stream and execution state. Here exactly one of these flags can be used, it is not
allowed to OR-concatenate them. Additionally exactly one of the following flags has to be set to specify which
output need to be used to send the

value

to, this flag has to be OR-concatenated with one of the previously

described ones:

E180X_COMMAND_FLAG_WRITE_LP8MO

– set or unset MO-output of laser connector to a value of 1 or 0

E180X_COMMAND_FLAG_WRITE_LP8LATCH

– set or unset latch-output of laser connector to a value of 1 or 0

E180X_COMMAND_FLAG_WRITE_LASERGATE

– set or unset LaserGate-output to a value of 1 or 0, this

functions should be used with jump or mark operations only since every switch from jump to mark (or vice
versa) still sets the LaserGate output automatically and therefore would overwrite own values set with this
function

value

– the value to be sent to the output specified by flags

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

124

18.1.8 Writing of stand-alone data

Using E1803D Easy Programming Interface it is also possible to write stand-alone data which are not marked
immediately but are stored either locally or on scanner controller's micro-SD-card. In this mode sending of
vector data, scanner- and laser parameters looks exactly the same as for direct operation mode where data are
marked immediately. The difference can be found in initialisation (which tells the software to not to mark these
data but to store them for later use) and when dynamic data are created.

E1803D supports two types of writing of stand-alone data:

•

sending them to the controller via Ethernet or USB connection where they are written to micro-SD-
card and

•

writing one or more files to the local file system which later have to be copied to the micro-SD-card of
the controller manually.

The general procedure for sending stand-alone data to the controller's micro-SD-card has to look as follows:

1. The controller needs to be in idle-state, means it should not mark and should not have loaded an

already existing .EPR file. This can be ensured by calling stand-alone command

clepr

with a filename

for a file that does not exists on micro-SD-card. For more details please refer to “16.2 Stand-Alone
Control Commands“

2. Configure the connection to E1803D controller by calling

E180X_set_connection()

, the returned

board instance number has to be used for all following function calls.

3. Enable stand-alone write mode and specify the filename of the .EPR file to be created on micro-SD-card

by calling

E180X_set_filepath()

with mode

E180X_FILEMODE_SEND

4. Send all laser- and scanner-parameters as well as vector data as usual.
5. Optionally: send information about dynamic contents of the .EPR file to be created by calling

E180X_dynamic_data()

optionally followed by some vector data followed by an other call to

function

E180X_dynamic_data()

which ends this section of dynamic data (please refer function

description below for details).

6. Wait until

E180X_get_card_state()

returns “busy”

7. Wait until

E180X_get_card_state()

returns “idle” or an error

8. End data transmission and finish created file by calling

E180X_close()

The general procedure for writing stand-alone data to the local filesystem has to look as follows:

1. Since writing of local data does not require a working connection to the controller card, it does not

need to be configured and the special board instance number 0 has to be used for all following function
calls.

2. Enable stand-alone write mode and specify the filename of the .EPR file to be created by calling

E180X_set_filepath()

with mode

E180X_FILEMODE_LOCAL

3. Send all laser- and scanner-parameters as well as vector data as usual.
4. Optionally: send information about dynamic contents of the .EPR file to be created by calling

E180X_dynamic_data()

optionally followed by some vector data followed by an other call to

function

E180X_dynamic_data()

which ends this section of dynamic data (please refer function

description below for details).

5. End data transmission and finish created file by calling

E180X_close()

The functions which are specific to writing of stand-alone data have to be used as follows:

int E180X_set_filepath(unsigned char n,const char *fname,unsigned int mode)

This function enables operation mode where all following data are not marked immediately but written

into an .EPR stand-alone file. This mode stays active until next call of

E180X_close()

. It has to be called prior

E180X_load_correction()

. Valid parameters and their meaning depends on the usage scenario:

•

when sending stand-alone data to a connected controller which writes the .EPR file to the micro-SD-
card directly:

– the 1-based board instance number as returned by

E180X_set_connection()

fname

– name of the file as it has to appear on micro-SD-card of the controller in style

“0:/filename.epr” where “0:/” is a fixed prefix specifying the micro-SD-card, “filename” is a free to
choose name with recommended 8 characters at max and “.epr” is a fixed, mandatory file extension

125

specifying an E1803 stand-alone file

mode

– set to

E180X_FILEMODE_SEND

to specify the data have to be sent to the controller

•

when writing stand-alone data to the local filesystem (no controller card directly involved):

– board instance number, has to be set to 0 (as well as for all other function calls in this mode)

fname

– name of the file to be written, this has to be a valid path to a location on a local filesystem

which is writeable and needs to have file extension “.epr”

mode

– set to

E180X_FILEMODE_LOCAL

to specify the data have to be written locally

Return:

E180X_OK

or an

E180X_ERROR_

-return code in case of an error

int E180X_dynamic_data(unsigned char n,struct oapc_bin_struct_dyn_data2
*dynData)

This function can be used to write dynamic data such as texts, serial numbers, barcodes which later can

be changed during operation in stand-alone mode.
This function always has to be called in fixed sequences:

1. jump to the start position of the dynamic element by calling

E180X_jump_abs()

2. first call of

E180X_dynamic_data(n,dynData)

with a valid

dynData

parameter describing the

dynamic content and its capabilities

3. optionally and dependent on type of dynamic data that have to be created: some vector data which

belong to the dynamic content and are required to build it up

4. second call of

E180X_dynamic_data(n,NULL)

with NULL handed over for parameter

dynData

finish this element

A stand-alone file can contain up to ten dynamic data elements. So this function can be called up to ten times to
create a new element on each call.

When this function is called, beside the .EPR-file an additional .DAT file is created which contains some specific
data. During operation in stand-alone mode an other file with the same name and with extension .SER may be
created which contains counting information of an included serial number. All these files belong together and
deleting one or more of them may lead to unexpected results. When writing the data to local filesystem it also
has to be ensured both, the .EPR and the .DAT file are copied to the controller later.

The structure

oapc_bin_struct_dyn_data2

is defined in file “oapc_libio.h” which is part of the OpenSDK.

The general usage is described in OpenSDK manual, both are available for download at

https://halaser.systems/download.php

For E1803 scanner controller card following specific parameters and features of this structure can to be used:

Independent from what kind of dynamic element has to be created, following members of structure

oapc_bin_struct_dyn_data2

always have to be filled

with data:

UID – and unique identifier which can be created out of a plain, human readable text which should be unique

too and later can be used to access this specific element via stand-alone control commands; this
identifier has to created out of the 8 bit ASCII character using following CRC-function:

#define

POLY

0x82f63b78

/* CRC-32 (Ethernet, ZIP, etc.) polynomial in reversed bit order. */

unsigned

int

crc32b

(

const

char

buf

)

{

int

;

unsigned

int

crc

=0xFFFFFFFF;

size_t

len

strlen

(

buf

);

while

(

len

--)

{

crc

^=*

buf

++;

for

(

=0;

<8;

++)

crc

&1 ? (

crc

>>1)^

POLY

crc

>>1;

}

return

crc

;

126

}

uScaleX

– scaling factor in X-direction in unit 1/1000000

uScaleY

– scaling factor in Y-direction in unit 1/1000000

res1a

res1b

res2

res3

res4

res5

res6

res7

– these members are reserved for later use and all have

to be set to 0

Every dynamic element can be a

serial number

. In such a case the serial number part of structure

oapc_bin_struct_dyn_data2

has to be filled with data:

fmtString

– an ASCII text with a maximum length of

DYN_DATA_MAX_STRING_LENGTH

describing the

format of the serial number/date/time in the dynamic element, here the same notation has to be used
as it is known from the serial number input element of BeamConstruct (please refer to the related
manual)

snBeatCount

– specifies how much numbers of mark operations have to elapse before the serial number has

to be incremented, here a value of 1 has to be given to increment on every operation

snBeatOffset

– specifies a counting offset for the beat count parameter

snIncrement

– specifies the step width by which a serial number has to be incremented

snNumericBase

– the numeric base of the serial numbers to be displayed, default is 10 for decimal numbers

snResetAtTime

– the time value at which the serial number has to be reset to it's initial value; set to a

timestamp (in unit day of week/date/seconds) when it has to be reset at a given time

snResetAtValue

– the numeric value at which the serial number has to be reset to it's initial value

snFlags

– a set of OR-concatenated flags which further specifies handling of the serial number:

0x0002 – reset the serial number at a specific counting value specified by

snResetAtValue

0x0004 – reset the serial number at a specific day of the week specified by

snResetAtTime

0x0008 – reset the serial number at a specific date specified by

snResetAtTime

0x0010 – reset the serial number at a specific time of the day specified by

snResetAtTime

snStartValue

– the initial- and reset-to-value of the serial number

snMinDigits

– the minimum number of digits the serial number has to consist of

timeOffset

– a static offset (in unit seconds) to be added to the time-part of the current element

Dynamic

text elements

additionally need to fill following parts of the same structure

oapc_bin_struct_dyn_data2

fmtString

– an ASCII text with a maximum length of

DYN_DATA_MAX_STRING_LENGTH

which contains the

text to be shown and which can be changed by appropriate stand-alone commands later; when used in
combination with serial number data, here a format-string has to be given as described above

type

– a number which specifies the font to be used for creating the dynamic texts, here one of following

values can be used:

0x01000000

– use “Rect Single” laser font

0x02000000

– use “Rect Double” laser font

0x03000000

– use “Roman Simple” laser font

0x04000000

– use “Roman Double” laser font

0x05000000

– use “Script Simple” laser font

0x06000000

– use “Script Double” laser font

0x07000000

– use “Script Complex” laser font

0x08000000

– use “Times Simple” laser font

0x09000000

– use “Times Bold” laser font

0x0A000000

– use “Times Italic” laser font

0x0B000000

– use “Times Italic Bold” laser font

flags

– some OR-concatenated flags which specify orientation, alignment and style of the text to be

generated, here no two flags of same type are allowed to be combined which would conflict with each
other:

0x00000000

– orient text left to right

0x00010000

– orient text right to left

127

0x00020000

– orient text top to bottom

0x00030000

– orient text bottom to top

0x00000000

– horizontally align to the left

0x00000100

– centre-align horizontally

0x00000200

– horizontally align to the right

0x00000001

– style fixed char-size – all characters are forced to have same distance

param1

– kerning value in unit 1/1000%

param2

– reserved for future use, set to 0

param3

– spacing in unit 1/1000%

Dynamic

DataMatrix barcode elements

require vector data to be sent between two calls of function

E180X_dynamic_data()

, these vector data describe the pattern which has to be marked to create one single

element (means square) of the DataMatrix barcode. Such an element needs to incorporate all that is needed
including laser- and scannerdata as well as vector data for outline and possible hatches. During stand-alone
operation the barcode itself is created by combining these single elements at these positions, where a bit
(=square) has to be set).
Additionally following data of the structure

oapc_bin_struct_dyn_data2

need to be filled for this type of

element:

fmtString

– an ASCII text with a maximum length of

DYN_DATA_MAX_STRING_LENGTH

which contains the

text to be encoded as DataMatrix barcode and which can be changed by appropriate stand-alone
commands later; when used in combination with serial number data, here a format-string has to be
given as described above

type

– set to 71 for DataMatrix barcode

flags

– some OR-concatenated flags which further specify how the barcode has to be created, currently only

one flag is supported:
0x0001 – create a square-shaped DataMatrix barcode instead of a rectangular one

param1

– set to 0

param2

– set to -1

param3

– specifies the size to be generated (in range 2..30) and implicitly the error correction level

quietZone

– zone the barcode has to be surrounded with, the value given here is the multiple of the width of a

single token multiplied with 1000

18.1.8.1 Example

Following a (simplified) example in some pseudo-code is given which demonstrates the correct usage of the
programming interface to write stand-alone data. The laser- and scanner-parameters are dropped in this
example since they are not specific to this operation mode and always have to be set.

Example: A serial number in format “000/hh/mm” where “000” is a continuously increased number, “hh” is the
current hour and “mm” is the current minute has to be encoded into a DataMatrix barcode which has a size of
25x25 mm and is positioned at -30x30 mm within a 100x100 mm working area that itself is aligned to
coordinates -50,50

1. not shown here: initialisation of libE1803 (with evaluation of parameter

boardIdx

), sending of default

scanner and laser data as usual

E180X_jump_abs(boardIdx, -20132659, 20132659, 0)

// jump to the starting position of

the DataMatrix barcode to be created

E180X_dynamic_data(boardIdx, dynData)

// initiate the dynamic data sequence, here the

members of dynData are set to following values:

UID

= 2340633892

– CRC-value of element name “Barcode 1”

fmtString = "$S/%I/%M"

– display serial number, hour and minute

type

= 71

– DataMatrix barcode

flags

= 1

– barcode forced to square

param2

= 4294967295

128

param3

= 2

uScaleX

= 1029654

uScaleY

= 1029654

snIncrement = 1
snNumericBase = 10
snMinDigits = 3

all other values are set to 0

E180X_jump_abs(boardIdx, 0, 0, 0)
E180X_mark_abs(boardIdx, 1197222, 0, 0)
E180X_mark_abs(boardIdx, 1197222, -1197222, 0)
E180X_mark_abs(boardIdx, 0, -1197222, 0)
E180X_mark_abs(boardIdx, 0, 0, 0)

// draw a single rectangle which describes one

DataMatrix cell (in this example only the outline without any hatching is done, hatches would have to
be added here too

E180X_dynamic_data(boardIdx, NULL)

// end the sequence of dynamic data

E180X_execute(boardIdx)

7. Not shown here: waiting for card being busy, waiting for card being idle (which means writing of the Epr

file to the microSD card has been finished), closing the connection to the controller

18.1.9 Error Codes

Most of the functions described above can return an error code in case an operation could not be completed
successfully for any reason. So when it does not return with

E180X_OK

the error code informs about the

reason for failure:

•

E180X_ERROR_INVALID_CARD

– a wrong or illegal card number was specified with function

parameter

•

E180X_ERROR_NO_CONNECTION

– a connection to card could not be established

•

E180X_ERROR_NO_MEMORY

– there is not enough memory available on the host

•

E180X_ERROR_UNKNOWN_FW

– card is running an unknown and/or incompatible firmware version

•

E180X_ERROR_TRANSMISSION

– data transmission to card failed

•

E180X_ERROR_FILEOPEN

– opening of a file failed

•

E180X_ERROR_FILEWRITE

– writing of data into a file failed

•

E180X_ERROR_INVALID_DATA

– data or parameters handed over to a function are invalid, out of

range or illegal in current context

•

E180X_ERROR_UNKNOWN_BOARD

– trying to access a controller board that is not a motion controller

•

E180X_ERROR_FILENAME

– a file name handed over to a function was illegal, it is either too long, has

an illegal or too long file extension, comes with too much sub-directories or contains illegal characters

•

E180X_ERROR_NOT_SUPPORTED

– the requested feature or function is not supported by the current

firmware version

•

E180X_ERROR

– an other, unspecified error occurred

•

E180X_ERROR_STILL_IN_PROGRESS

– the requested function could not be executed because the

controller is still busy, this happens e.g. in cases where a stand-alone operation is running on the
controller which is not under control of the programming interface

18.2 RTC4 Compatibility Functions

Beside the easy programming interface described above, a bunch of additional functions is provided that are
compatible to the ones known from RTC4 scanner controller card. So to use E1803D scanner card with existing
code that supports the RTC4 scanner controller, following few steps have to be done:

•

insert a call to

E180X_set_connection()

into existing code as very first in order to specify the

communication connection for E1803D card (this is the only exception where an E1803D Easy
Interface Function should be used together with an RTC4 Compatibility Function)

•

recompile the existing RTC4-application so that it uses e1803inter.DLL/libe1803inter.so instead of
RTC4DLL.dll/libslrtc4.so

In case E1803D card has to be operated with default connection settings, no recompilation is necessary, here
e1803inter.dll/libe1803inter.so just has to be renamed to RTC4DLL.dll/libslrtc4.so.

129

Since most relevant RTC4 functions are already provided, majority of existing applications should work now
without any further modifications. Due to the completely different concept of E1803D scanner controller,
there are some differences to the original RTC4 programming interface which should be checked in case of
some errors:

•

all RTC4 functions that exist as list- and non-list-commands are treated like a list command

•

list switch commands are ignored since E1803D does not make use of separated lists internally

•

output of already sent marking data is started on calls to

n_execute_list()

execute_list()

n_set_end_of_list()

set_end_of_list()

•

some functions are not implemented or always return a default value (please refer below for a list of
not implemented RTC4 functions)

Following functions are specific to RTC4 hardware or do not make sense when E1803D scanner card is used
and therefore aren't supported:

n_load_z_table()
load_z_table()
n_set_defocus_list()
set_defocus_list()
n_set_offset_list()
set_offset_list()
n_laser_on_list()
laser_on_list()
n_set_list_jump()
set_list_jump()
n_set_input_pointer()
set_input_pointer()
n_list_call()
list_call()
n_list_return()
list_return()
n_z_out_list()
z_out_list()
n_timed_jump_abs()
timed_jump_abs()
n_timed_mark_abs()
timed_mark_abs()
n_timed_jump_rel()
timed_jump_rel()
n_timed_mark_rel()
timed_mark_rel()
n_set_fly_rot()
set_fly_rot()
n_fly_return()
fly_return()
n_calculate_fly()
calculate_fly()
n_select_cor_table_list()
select_cor_table_list()
n_set_wait()
set_wait()
n_simulate_ext_start()
simulate_ext_start()
n_set_pixel_line()
set_pixel_line()
n_set_pixel()
set_pixel()
n_set_extstartpos_list()
set_extstartpos_list()
n_laser_signal_on_list()
laser_signal_on_list()
n_laser_signal_off_list()

130

load_varpolydelay()
n_write_da_2_list()
write_da_2_list()

18.3 USC1/2 Compatibility Functions (SCI interface)

Beside the easy programming interface described above a bunch of additional functions is provided that are
compatible to the ones known from SCI programming interface used for USC1/2 scanner controller card. So to
use E1803D scanner card with existing code that supports the USC1 or USC2 scanner controller, following
steps have to be done:

•

insert a call to

E180X_set_connection()

into existing code as very first in order to specify the

communication connection for E1803D card (this is the only exception where an E1803D Easy
Interface Function should be used together with an USC1/2 Compatibility Function)

•

recompile the existing SCI-application so that it uses e1803inter.DLL instead of sc_optic.dll

In case E1803D card has to be operated with default connection settings, no recompilation is necessary, here
e1803inter.dll just has to be renamed to sc_optic.dll.

Since most relevant SCI functions are already provided, majority of existing applications should work now
without any further modifications. Due to the different concept of E1803D scanner controller, there are some
differences to the original SCI programming interface which should be checked in case of troubles:

•

all USC1/2 functions/types that exist as stream- and non-stream-variants are treated like a stream
command

•

output of already sent marking data is started on call to

ScSCIFlush()

latest

•

some functions are not implemented or always return a default value (please refer below of a list of not
implemented SCI functions)

Following functions are specific to USC1/2 hardware or do not make sense in relation to E1803D scanner card
and therefore aren't supported:

long ScSCISetContinuousMode()
long ScSCIGetContinuousMode()
long ScSCIDevicePixelLine()
long ScSCIRasterPixelLine()
long ScSCIRasterStart()
long ScSCIRasterEnd()
long ScSCIGetDeviceName()
long ScSCIGetDeviceCaps()
long ScSCIGetDeviceData()
long ScSCISetDeviceData()
long ScSCIGetExternalTrigger()
long ScSCISetExternalTriggerCount()
long ScSCIGetExternalTriggerCount()
long ScSCISetEnableHead()
long ScSCIGetEnableHead()
long ScSCISetZField()
long ScSCIGetZField()
long ScSCIGetZGain()
long ScSCISetZGain()
long ScSCIGetHomePosition()
long ScSCIGetZHomePosition()
long ScSCISetHomePosition()
long ScSCISetZHomePosition()
long ScSCIGetZOffset()
long ScSCISetZOffset()
long ScSCISetZWorkingArea()
long ScSCIGetZWorkingArea()
long ScSCIGetHomeJump()
long ScSCISetHomeJump()
long ScSCIMaxExternalTriggerCount()
long ScSCIResetExternalTriggerCount()
long ScSCISetDeviceEnableFlags()

133

APPENDIX A – Wiring between E1803D and specific laser
types

This appendix describes the wiring between the controller card and specific laser models when an E1803dock
(as described in “13 E1803dock Extension Board”) is not used or when it can’t be used because the laser comes
with a non-standard, proprietary control interface.

Wiring between E1803D and IPG YLP Series Type B, B1 and B2, GZTech

YFPN series fiber laser

PLEASE NOTE: this wiring scheme is a non-binding policy, it may be incorrect due to changes in connected
hardware. So in every case please check this table against specification and wiring documentation of the used
laser!

Signal Name

E1803D Connector

E1803D Connector / Pin

IPG Pin

LP0

Laser signal connector

Pin 1

LP1

Pin 3

Pin 2

LP2

Pin 5

Pin 3

LP3

Pin 7

Pin 4

LP4

Pin 9

Pin 5

LP5

Pin 11

Pin 6

LP6

Pin 13

Pin 7

LP7

Pin 15

Pin 8

MO / Main Oscillator

Pin 8

Pin 18

LP8 Latch

Pin 17

Pin 9

LaserA / Frequency

Pin 22

Pin 20

Laser Gate / Modulation

26 pin connector, pin 26

Pin 19

Alarm, one of DIn0…DIn7

Digital interface connector

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 16

Alarm, one of DIn0…DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 21

Pilot Laser, one of DOut0…DOut7

Pin 3, 5, 7, 9, 11, 13, 15 or 17

Pin 22 *)

*) may require additional power driver since some laser variants consume a current at this input which is higher
than the maximum output allowed

In this wiring-scheme no GND-connections are listed, they have to be added in order to get valid and working
connections.

135

Wiring between E1803D and JPT YDFLP series fiber laser (“MOPA”) or IPG

YLP Series Type D fiber laser or Raycus RFL PMX/PQB Series fiber laser

Signal Name

E1803D Connector

E1803D Connector / Pin

JPT

D-SUB25

LP0

Laser signal connector

Pin 1

LP1 / serial data

Pin 3

Pin 2

LP2 / serial clock

Pin 5

Pin 3

LP3

Pin 7

Pin 4

LP4

Pin 9

Pin 5

LP5

Pin 11

Pin 6

LP6

Pin 13

Pin 7

LP7

Pin 15

Pin 8

MO / Main Oscillator

Pin 8

Pin 18

LP8 Latch

Pin 17

Pin 9

LaserA / Frequency

Pin 22

Pin 20

Laser Gate / Modulation

26 pin connector, pin 26

Pin 19

LaserB / serial enable

Pin 19

Pin 22 *)

GND

Pin 2 or 23

Pin 10-15

Alarm, one of DIn0…DIn7

Digital interface
connector

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 16

Alarm, one of DIn0…DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 21

Pilot Laser: in software choose
LaserB as output

*) for details regarding double-usage of this pin, please refer to the manual of the laser

136

Wiring between E1803D and IPG YLP Series Type E fiber laser

Variant using E1803D with support for APD index setting via DB-25 serial data interface

Signal Name

E1803D Connector

Connector / Pin

IPG Pin

LP0

Laser signal connector

Pin 1

LP1

Pin 3

Pin 2

LP2

Pin 5

Pin 3

LP3

Pin 7

Pin 4

LP4

Pin 9

Pin 5

LP5

Pin 11

Pin 6

LP6

Pin 13

Pin 7

LP7

Pin 15

Pin 8

MO / Main
Oscillator

Pin 8

Pin 18

LP8 Latch

Pin 17

Pin 9

LaserA / Frequency

Pin 22

Pin 20

Laser Gate /
Modulation

26 pin connector, pin 26

Pin 19

Alarm,
one of DIn0..DIn7

Digital interface connector

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 16

Alarm,
one of DIn0..DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 21

Pilot Laser,
one of DOut0,
DOut1,
DOut5..DOut7

Pin 3, 5, 13, 15 or 17

Pin 22

)

Serial Enable

Pin 7

Pin 24

)

Serial Clock

Pin 9

Pin 13

)

Serial Data

Pin 11

Pin 10

)

) may require additional power driver since some laser variants consume a current at this input which is higher

than the maximum output allowed

) serial data transmission requires firmware version 2 or newer

In this wiring-scheme no GND-connections are listed, they have to be added in order to get valid and working
connections.

137

Wiring between E1803D and IPG YLP Series Type G fiber laser

Signal Name

E1803D Connector

E1803D Connector / Pin

D-SUB25

LP0

Laser signal connector

Pin 1

LP1

Pin 3

Pin 2

LP2

Pin 5

Pin 3

LP3

Pin 7

Pin 4

LP4

Pin 9

Pin 5

LP5

Pin 11

Pin 6

LP6

Pin 13

Pin 7

LP7

Pin 15

Pin 8

MO / Main Oscillator

Pin 8

Pin 18

LP8 Latch

Pin 17

Pin 9

LaserA / Frequency

Pin 22

Pin 20

Laser Gate / Modulation

26 pin connector, pin 26

Pin 19

LaserB

Pin 19

Pin 22

GND

Pin 2 or 23

Pin 14

Alarm, one of DIn0…DIn7

Digital interface
connector

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 11

Alarm, one of DIn0…DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 16

Alarm, one of DIn0…DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 21

Pilot Laser: in software choose
LaserB as output

138

Wiring between E1803D and IPG YLM Series laser

Signal Name

Board

Connector / Pin

IPG Pin

AOut0 or AOut1

Laser signal connector

Pin 12 or pin 14

Pin 8

)

MO / Main
Oscillator

Pin 8

Pin 7

Laser Gate /
Modulation

Pin 26

Pin 17

Pilot Laser,
one of
DOut0..DOut7

Digital interface connector

Pin 3, 5, 7, 9, 11, 13, 15 or 17

Pin 21

Laser ready,
one of DIn0..DIn7

Pin 4, 6, 8,10, 12, 14, 16 or 18

Pin 19

RS232 serial
interface

Serial interface connector

Pins 1, 2 and 3

RS232
interface

) The E1803D analogue output provides signals in range 0..10 V while the IPG YLM laser input expects signals

in range 0..4 V. To avoid hardware damage the signal level has to be limited by additional hardware measures,
e.g. by a voltage divider

In this wiring-scheme no GND-connections are listed, they have to be added in order to get valid and working
connections.

140

Wiring between E1803D and MaxPhotonics MFP fiber laser

Signal Name

E1803D Connector

E1803D Connector / Pin

MaxPhot

onics

D-SUB25

LP0

Laser signal connector

Pin 1

LP1

Pin 3

Pin 2

LP2

Pin 5

Pin 3

LP3

Pin 7

Pin 4

LP4

Pin 9

Pin 5

LP5

Pin 11

Pin 6

LP6

Pin 13

Pin 7

LP7

Pin 15

Pin 8

LP8 Latch

Pin 17

Pin 9

MO / Main Oscillator

Pin 8

Pin 18

LaserA / Frequency

Pin 22

Pin 20

Laser Gate / Modulation

26 pin connector, pin 26

Pin 19

GND

Pin 2 or 23

Pin 10-15

Alarm, one of DIn0…DIn7

Digital interface
connector

Pin 4, 6, 8, 10, 12, 14, 16 or
18

Pin 16

Alarm, one of DIn0…DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or
18

Pin 21

Pilot Laser, one of DOut0…DOut7

Pin 3, 5, 7, 9, 11, 13, 15 or 17

Pin 22

141

Wiring between E1803D and SPI G4 Pulsed Fibre Laser / TRUMPF TruPulse

nano series

Signal Name

E1803D Connector

E1803D Connector / Pin

SPI Pin

LP0

Laser signal connector

Pin 1

Pin 17

LP1

Pin 3

Pin 18

LP2

Pin 5

Pin 19

LP3

Pin 7

Pin 20

LP4

Pin 9

Pin 51

LP5

Pin 11

Pin 52

LP6

Pin 13

Pin 53

LP7

Pin 15

Pin 54

MO / Laser Enable

Pin 8

Pin 7

LP8 Latch

Pin 17

Pin 23

LaserA / Pulse Trigger

Pin 22

Pin 13

AOut0 / Power

Pin 12

Pin 65

AOut1 / Simmer

Pin 14

Pin 64

LaserGate / Modulation

Pin 26

Pin 5

Alarm, one of DIn0…DIn7

Digital interface connector

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 9

Pilot Laser, one of DOut0…DOut7

Pin 3, 5, 7, 9, 11, 13, 15 or 17

Pin 6

In these wiring-schemes no GND-connections are listed, they have to be added in order to get valid and
working connections.

142

Wiring between E1803D and Raycus fiber laser

Signal Name

E1803D Connector

E1803D Pin

Raycus Pin

LP0

Laser signal connector

Pin 1

LP1

Pin 3

Pin 2

LP2

Pin 5

Pin 3

LP3

Pin 7

Pin 4

LP4

Pin 9

Pin 5

LP5

Pin 11

Pin 6

LP6

Pin 13

Pin 7

LP7

Pin 15

Pin 8

MO / Main Oscillator

Pin 8

Pin 18

LaserA / Frequency

Pin 22

Pin 20

Laser Gate / Modulation

Pin 26

Pin 19

Alarm, one of DIn0…DIn7

Digital interface connector

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 16

Alarm, one of DIn0…DIn7

Pin 4, 6, 8, 10, 12, 14, 16 or 18

Pin 21

In this wiring-scheme no GND-connections are listed, they have to be added in order to get valid and working
connections.

143

Wiring between E1803 and Raycus RFL-C Series 24V Control CW Laser

PLEASE NOTE: this wiring description is a non-binding policy, it may be incorrect due to changes in connected
hardware. So in every case please check this table against specification and wiring documentation of the used
laser!

Laser models that require control signals with higher voltage levels than 5V (typically 16..24V) can’t be
connected directly and require additional hard- and software configuration steps. Following hardware
configuration is required to operate such a laser model with the E1803D:

•

configure the digital interface to operate in opto-insulated mode (opto-mode 0) and with external
power supply (as described in section “6.8.2 Opto-Configuration Jumpers”)

•

connect one of the DOut-pins of the digital interface with the “MOD+” input (pin 15) of the laser

•

add the “

lasergate

” parameter to the e1803.cfg to specify this specific DOut to be used as LaserGate

(as described in section “6.5 microSD-Card”)

•

connect an other of the DOut-pins of the digital interface with the “Red Laser” input (pin 18) of the
laser

•

connect AOut0 or AOut1 of the Laser Interface with the “Analog” input (pin 12) of the laser

Based on this, following software configuration is required:

•

configure the DOut line that is used for the pilot laser (aka “Red Laser”) to be used for preview (e.g. in
BeamConstruct at menu “Project” “Project settings” tab-pane “Scanner” section “Pilot laser”)

→

•

configure the used analogue output to be used for power control (e.g. in BeamConstruct when E1803D
is configured to be used as scanner card at menu “Project” “Project settings” tab-pane “Scanner”

→

button “Configure” parameter “Additional power output”)

→

•

the laser-mode does not matter for this configuration as for all types of lasers that may be set for the
E1803D the LaserGate signal is switched

In this wiring-description no GND-connections are listed separately, they have to be added in order to get valid
and working connections.

146

Wiring between E1803D and GZTECH S355 series DPSS Laser

Signal Name

E1803D Connector

E1803D Pin

GZTECH DB9

connector Pin

GZTECH Signal Name

LaserA / Frequency

Laser signal
connector

PWM

GND

2 or 3

GND

LaserGate

Gate

Within BeamConstruct following settings have to be done in order to control the laser:

•

menu “Project” “Project settings” tab-pane “Scanner” button “Configure” parameter “Laser

→

type” has to be set to value “YAG1”

•

menu “Project” “Pen settings” tab-pane “General”: the “Frequency” slider has to be set to an

→

appropriate value (typically 30..50 kHz, please refer to the manual of the laser for further details), the
“Power” slider has no effect as no additional power output was configured in scanner controller
settings

•

menu “Project” “Pen settings” tab-pane “Laser”: the parameter “Pulse length” has to be set to an

→

appropriate value (such as 1 usec, please refer to the manual of the laser for further details)

To use this laser model with BeamConstruct, HALsetup software package version 8.2-07 or newer is required.

147

APPENDIX B – XY2-100 / XY2-200 protocol description

Depending on the actual configuration, the data submitted at 26 pin or D-SUB25 connector of E1803D are
conform to XY2-100 specification:

CLK+

SYNC+

X+, Y+, Z+ Data

In standard 16 bit operating mode first three bits are set to 001, then 16 bit position data followed by a parity
bit (even parity) are transmitted:

D15..D0 position data

In enhanced XY2-100E 18 bit operating mode first bit is set to 1, then 18 bit position data followed by a parity
bit (odd parity) are transmitted:

D17..D0 position data

To use this mode, the related tune-value has to be set in configuration file (please refer to section “6.5 microSD-
Card”)

In XY2-100 and XY2-100E mode one frame with 20 bits has a length of 10 usec which is similar to 100 kHz
output clock.
For the XY2-200 and XY2-200E modes a frame with 20 bits has a length of 5 usec which is similar to 200 kHz
output frequency.

148

Index

1:1............................................................................................................................................................................................................................1
16-bit IO port...................................................................................................................................................................................................27

24V....................................................................................................................................................................................................................146
2D marking on-the-fly.................................................................................................................................................................................35

8.3.........................................................................................................................................................................................................................38
80X_execute.....................................................................................................................................................................................................95

A/E................................................................................................................................................................................................................17, 21
ADC.....................................................................................................................................................................................................................19
adcfreq...............................................................................................................................................................................................................19
Alive.............................................................................................................................................................................................................17, 68
AOut0........................................................................................................................................................................................16, 32, 70, 146
AOut1........................................................................................................................................................................................16, 32, 70, 146
auto......................................................................................................................................................................................................................39
autofile................................................................................................................................................................................................................21

barcode..............................................................................................................................................................................................................39
barcodes..........................................................................................................................................................................................................75f.
BeamConstruct................................................................................................................................................................................11, 38, 68
bitmap..............................................................................................................................................................................................................109
bitmap lines....................................................................................................................................................................................................109
BNC...................................................................................................................................................................................................................62f.
boot......................................................................................................................................................................................................................27
busid.....................................................................................................................................................................................................23, 69, 79

C45 rail...............................................................................................................................................................................................................67
C45 rail adapter..............................................................................................................................................................................................67
C45 rail lock......................................................................................................................................................................................................67
cdepr....................................................................................................................................................................................................................74
cdser....................................................................................................................................................................................................................76
cdtl0.............................................................................................................................................................................................................45, 77
cdtl1.............................................................................................................................................................................................................45, 77
cecho............................................................................................................................................................................................................23, 69
cfror.....................................................................................................................................................................................................................70
cftim.....................................................................................................................................................................................................................77
cgana...................................................................................................................................................................................................................71
cgbsr....................................................................................................................................................................................................................70
cgbuf....................................................................................................................................................................................................................75
cgcor....................................................................................................................................................................................................................73
cgepr....................................................................................................................................................................................................................74
cginp....................................................................................................................................................................................................................69
cglog.....................................................................................................................................................................................................................78
cgmtx...................................................................................................................................................................................................................70
cgser....................................................................................................................................................................................................................76
cgsta.....................................................................................................................................................................................................................77
cgtim....................................................................................................................................................................................................................76
cgtin.....................................................................................................................................................................................................................73
cgtxt.....................................................................................................................................................................................................................75
chalt.....................................................................................................................................................................................................................71
ciser......................................................................................................................................................................................................................76
cjsor..............................................................................................................................................................................................................20, 70

155

clepr...................................................................................................................................................................................................41, 73, 125
CLK..........................................................................................................................................................................................................29f., 46f.
cmsor...........................................................................................................................................................................................................20, 70
CNC.....................................................................................................................................................................................................................73
CO2....................................................................................................................................................................................................31, 62, 104
commands.........................................................................................................................................................................................................69
configuration.....................................................................................................................................................................................18, 39, 43
continuous wave.............................................................................................................................................................................................61
continuously running frequency...........................................................................................................................................................105
control commands.........................................................................................................................................................................................69
correction table..............................................................................................................................................................................................19
corrtable.....................................................................................................................................................................................................19, 73
corrtable0.........................................................................................................................................................................................................19
cpuor...................................................................................................................................................................................................................70
cpwor...........................................................................................................................................................................................................20, 70
crrrr......................................................................................................................................................................................................................78
crser.....................................................................................................................................................................................................................76
crtim....................................................................................................................................................................................................................76
csbuf....................................................................................................................................................................................................................75
cscnc.............................................................................................................................................................................................................72, 87
cscor.............................................................................................................................................................................................................19, 73
cslgt......................................................................................................................................................................................................................78
cslmo...................................................................................................................................................................................................................78
cslp8.....................................................................................................................................................................................................................78
csmtx..............................................................................................................................................................................................................7, 71
csout....................................................................................................................................................................................................................78
cspof....................................................................................................................................................................................................................71
csser.....................................................................................................................................................................................................................75
cssta.....................................................................................................................................................................................................................77
cstat..............................................................................................................................................................................................................72, 92
cstdy....................................................................................................................................................................................................................77
csthr.....................................................................................................................................................................................................................77
cstim....................................................................................................................................................................................................................76
cstmi....................................................................................................................................................................................................................77
cstmo...................................................................................................................................................................................................................77
cstop....................................................................................................................................................................................................................71
cstrt......................................................................................................................................................................................................................72
cstsc.....................................................................................................................................................................................................................77
cstxt..............................................................................................................................................................................................................39, 75
cstyr.....................................................................................................................................................................................................................77
cswaf............................................................................................................................................................................................................28, 71
ctlxy.....................................................................................................................................................................................................................74
ctrig......................................................................................................................................................................................................................72
current................................................................................................................................................................................................................49
cvers....................................................................................................................................................................................................................69
CW.....................................................................................................................................................................................................................60f.
cxcnc..............................................................................................................................................................................................28, 72, 87, 91

DataMatrix...................................................................................................................................................................................39, 75f., 128
DAVI....................................................................................................................................................................................................................65
DAVI D-Series RF CO2.............................................................................................................................................................................145
digidebc..............................................................................................................................................................................................................22
digiinit.................................................................................................................................................................................................................21
digimask.............................................................................................................................................................................................................22
Digital interface......................................................................................................................................................................................12, 33
DIn........................................................................................................................................................................................................................33
DIN rail...............................................................................................................................................................................................................67
DIN/C45 rail adapter....................................................................................................................................................................................67
DIN/C45 rail lock...........................................................................................................................................................................................67

156

Dot.......................................................................................................................................................................................................................44
dot marker.................................................................................................................................................................................................18, 43
dot marking......................................................................................................................................................................................................28
Dot Mode..............................................................................................................................................................................................44f., 77f.
dot peen.............................................................................................................................................................................................................43
dotdist.................................................................................................................................................................................................................43
dotfont0.............................................................................................................................................................................................................43
dotfont1.....................................................................................................................................................................................................43, 45
dotfont1y...........................................................................................................................................................................................................43
dotmark......................................................................................................................................................................................................39, 43
dottime...............................................................................................................................................................................................................44
DOut.................................................................................................................................................................................................................33f.
DOut0.................................................................................................................................................................................................................33
DOut7.................................................................................................................................................................................................................33
Download new firmware............................................................................................................................................................................85
DYN_DATA_MAX_STRING_LENGTH..............................................................................................................................................127f.

E1803base.....................................................................................................................................................................................................154
E1803dock.....................................................................................................................................................................................................154
E180X_ana_read..........................................................................................................................................................................................100
E180X_ana_read().......................................................................................................................................................................................118
E180X_ana_write........................................................................................................................................................................................113
E180X_close.....................................................................................................................................................................................................94
E180X_close()........................................................................................................................................................................................94, 125
E180X_COMMAND_FLAG_ANA_AOUT0.......................................................................................................................................116
E180X_COMMAND_FLAG_ANA_AOUT1.......................................................................................................................................116
E180X_COMMAND_FLAG_ASYNC...................................................................................................................................................118
E180X_COMMAND_FLAG_DIRECT...............................................................................................................105, 112f., 115, 118f.
E180X_COMMAND_FLAG_DONOTWAIT...................................................................................................................................122f.
E180X_COMMAND_FLAG_FREQ_LASERA...................................................................................................................................116
E180X_COMMAND_FLAG_HEAD_STATE_RAW..........................................................................................................................110
E180X_COMMAND_FLAG_PASSIVE......................................................................................................................................114, 119
E180X_COMMAND_FLAG_SCANNER_VAR_POLYDELAY......................................................................................................103
E180X_COMMAND_FLAG_STREAM.........................................................................................................105, 112ff., 118f., 122f.
E180X_COMMAND_FLAG_SYNC.........................................................................................................................................................96
E180X_COMMAND_FLAG_UART1....................................................................................................................................................118
E180X_COMMAND_FLAG_XYCORR_FLIPXY..............................................................................................................................101
E180X_COMMAND_FLAG_XYCORR_MIRRORX........................................................................................................................101
E180X_COMMAND_FLAG_XYCORR_MIRRORY........................................................................................................................101
E180X_COMMAND_FLAG_ZCORR_MIRRORZ...........................................................................................................................102
E180X_CSTATE_FILE_WRITE_ERROR.................................................................................................................................................98
E180X_CSTATE_HALTED...........................................................................................................................................................................98
E180X_CSTATE_MARKING..........................................................................................................................................................93f., 97f.
E180X_CSTATE_MARKING|E180X_CSTATE_PROCESSING.....................................................................................................97
E180X_CSTATE_PROCESSING...................................................................................................................................................93f., 97f.
E180X_CSTATE_SAC_CTLXY............................................................................................................................................................74, 98
E180X_CSTATE_SAC_MARKING....................................................................................................................................................74, 98
E180X_CSTATE_SAC_READY...........................................................................................................................................................74, 98
E180X_CSTATE_WAIT_EXTTRIGGER..................................................................................................................................................98
E180X_CSTATE_WAIT_INPUT.................................................................................................................................................................98
E180X_CSTATE_WAS_START_PRESSED.............................................................................................................................................98
E180X_CSTATE_WAS_STOP_PRESSED...............................................................................................................................................98
E180X_CSTATE_WRITING_DATA..........................................................................................................................................................85
E180X_CSTATE_WRITING_DATA_ERROR.........................................................................................................................................85
E180X_delay....................................................................................................................................................................................................98
E180X_digi_pulse().....................................................................................................................................................................................114
E180X_digi_read..........................................................................................................................................................................................114
E180X_digi_read().......................................................................................................................................................................................114
E180X_digi_set_mip_output...................................................................................................................................................................117

157

E180X_digi_set_mip_output()...................................................................................................................................................................21
E180X_digi_set_motf_powerctl()..........................................................................................................................................................116
E180X_digi_set_motf_sim().....................................................................................................................................................................115
E180X_digi_set_motf(................................................................................................................................................................................115
E180X_digi_set_motf()............................................................................................................................................................................115f.
E180X_digi_set_wet_output...................................................................................................................................................................117
E180X_digi_set_wet_output()...................................................................................................................................................................21
E180X_digi_wait..........................................................................................................................................................................................115
E180X_digi_wait_motf..............................................................................................................................................................................115
E180X_digi_wait_motf().........................................................................................................................................................................115f.
E180X_digi_wait().......................................................................................................................................................................................115
E180X_digi_write........................................................................................................................................................................................113
E180X_dynamic_data()...........................................................................................................................................................................125f.
E180X_ERROR_FILENAME....................................................................................................................................................................129
E180X_ERROR_FILEOPEN.....................................................................................................................................................................129
E180X_ERROR_FILEWRITE...................................................................................................................................................................129
E180X_ERROR_INVALID_CARD.........................................................................................................................................................129
E180X_ERROR_INVALID_DATA..........................................................................................................................................................129
E180X_ERROR_NO_CONNECTION..................................................................................................................................................129
E180X_ERROR_NO_MEMORY.............................................................................................................................................................129
E180X_ERROR_TRANSMISSION........................................................................................................................................................129
E180X_ERROR_UNKNOWN_BOARD..............................................................................................................................................129
E180X_ERROR_UNKNOWN_FW........................................................................................................................................................129
E180X_execute...............................................................................................................................................................................................93
E180X_execute()...........................................................................................................................................................................20, 93, 95f.
E180X_FILEMODE_LOCAL..................................................................................................................................................................125f.
E180X_FILEMODE_SEND....................................................................................................................................................................125f.
E180X_get_card_state.................................................................................................................................................................................97
E180X_get_card_state()..........................................................................................................................................................................93ff.
E180X_get_free_space.................................................................................................................................................................................98
E180X_get_head_state.............................................................................................................................................................................110
E180X_get_library_version........................................................................................................................................................................99
E180X_get_library_version().....................................................................................................................................................................99
E180X_get_pos()..........................................................................................................................................................................................107
E180X_get_serial_number().......................................................................................................................................................................99
E180X_get_startstop_state.......................................................................................................................................................................97
E180X_get_sync()...........................................................................................................................................................................................95
E180X_get_version........................................................................................................................................................................................99
E180X_get_version().....................................................................................................................................................................................99
E180X_halt_execution.................................................................................................................................................................................96
E180X_halt_execution()..............................................................................................................................................................................98
E180X_jump_abs.........................................................................................................................................................................................106
E180X_jump_abs()...............................................................................................................................................................................93, 116
E180X_LASERMODE_CO2....................................................................................................................................................................104
E180X_LASERMODE_CRF.....................................................................................................................................................................105
E180X_LASERMODE_DFREQ..............................................................................................................................................................105
E180X_LASERMODE_MOPA.........................................................................................................................................................90, 105
E180X_LASERMODE_YAG........................................................................................................................................................................90
E180X_LASERMODE_YAG1..................................................................................................................................................................104
E180X_LASERMODE_YAG2..................................................................................................................................................................104
E180X_LASERMODE_YAG3..................................................................................................................................................................105
E180X_load_correction............................................................................................................................................................................100
E180X_load_correction()..................................................................................................................................................................93, 125
E180X_lp8_write.........................................................................................................................................................................................112

E180X_lp8_write_latch.............................................................................................................................................................................112
E180X_lp8_write_latch()..........................................................................................................................................................................112
E180X_lp8_write_mo.................................................................................................................................................................................112
E180X_lp8_write_mo()..............................................................................................................................................................................112
E180X_lp8_write_pilot..............................................................................................................................................................................113
E180X_lp8_write()......................................................................................................................................................................................112

158

E180X_mark_abs.........................................................................................................................................................................................106
E180X_mark_abs()...............................................................................................................................................................................93, 116
E180X_mark_pixelline...............................................................................................................................................................................109
E180X_motion_digi_read()......................................................................................................................................................................119
E180X_motion_digi_write().....................................................................................................................................................................119
E180X_motion_get_pos().........................................................................................................................................................................123
E180X_motion_move_abs_async().......................................................................................................................................................122
E180X_motion_move_abs()..................................................................................................................................................................121f.
E180X_motion_move_rel()....................................................................................................................................................................121f.
E180X_motion_reference().....................................................................................................................................................................123
E180X_MOTION_REFSTEP_INV_SWITCH.....................................................................................................................................124
E180X_MOTION_REFSTEP_N..............................................................................................................................................................123
E180X_MOTION_REFSTEP_P...............................................................................................................................................................123
E180X_motion_set_accel()......................................................................................................................................................................120
E180X_motion_set_limits()......................................................................................................................................................................120
E180X_motion_set_pos()..........................................................................................................................................................................124
E180X_motion_set_pulsewidth()..........................................................................................................................................................120
E180X_motion_set_speed().....................................................................................................................................................................121
E180X_motion_stop()................................................................................................................................................................................123
E180X_motion_stream_wait()............................................................................................................................................................121ff.
E180X_PIXELMODE_GATE_POWER_CONTROL........................................................................................................................108
E180X_PIXELMODE_HW_POWER_CONTROL...........................................................................................................................108
E180X_PIXELMODE_JUMP_LEAVE_POWER...............................................................................................................................108
E180X_PIXELMODE_JUMP_N_SHOOT...........................................................................................................................................108
E180X_PIXELMODE_NO_JUMPS.......................................................................................................................................................108
E180X_release_trigger_point..........................................................................................................................................................93, 96f.
E180X_release_trigger_point()..............................................................................................................................................................116
E180X_SCANNERMODE_SL.................................................................................................................................................................104
E180X_SCANNERMODE_XY2_100...................................................................................................................................................103
E180X_SCANNERMODE_XY2_100E................................................................................................................................................104
E180X_SCANNERMODE_XY2_200...................................................................................................................................................103
E180X_SCANNERMODE_XY2_200E................................................................................................................................................104
E180X_set_connection................................................................................................................................................................................94
E180X_set_connection()...................................................................................................................................................................93, 125
E180X_set_debug_logfile............................................................................................................................................................................95
E180X_set_filepath()..................................................................................................................................................................................125
E180X_set_fpk....................................................................................................................................................................................104, 111
E180X_set_laser..........................................................................................................................................................................................105
E180X_set_laser_delays...........................................................................................................................................................................102
E180X_set_laser_mode.............................................................................................................................................................................104
E180X_set_laser_mode()..........................................................................................................................................................................104
E180X_set_laser_timing...........................................................................................................................................................................110
E180X_set_laserb.............................................................................................................................................................................105, 111
E180X_set_matrix.......................................................................................................................................................................................109
E180X_set_matrix()....................................................................................................................................................................................101
E180X_set_password...................................................................................................................................................................................94
E180X_set_pixelmode...............................................................................................................................................................................108
E180X_set_pos.............................................................................................................................................................................................107
E180X_set_pos()..........................................................................................................................................................................................107
E180X_set_scanner_delays.....................................................................................................................................................................103
E180X_set_scanner_delays()..................................................................................................................................................................103
E180X_set_scanner_mode()....................................................................................................................................................................103
E180X_set_speeds......................................................................................................................................................................................102
E180X_set_standby..........................................................................................................................................................................105, 111

E180X_set_standby().................................................................................................................................................................................111
E180X_set_sync()...........................................................................................................................................................................................95
E180X_set_trigger_point.....................................................................................................................................................................93, 96
E180X_set_trigger_point()...............................................................................................................................................................95, 116
E180X_set_wobble.....................................................................................................................................................................................106
E180X_set_xy_correction........................................................................................................................................................................101

159

E180X_set_xy_correction()...........................................................................................................................................................101, 109
E180X_set_z_correction...........................................................................................................................................................................101
E180X_set_z_correction()........................................................................................................................................................................101
E180X_stop_execution................................................................................................................................................................................96
E180X_stop_execution().........................................................................................................................................................................7, 96
E180X_switch_correction........................................................................................................................................................................101
E180X_switch_correction().....................................................................................................................................................................101
E180X_uart_read.........................................................................................................................................................................................118
E180X_uart_write.......................................................................................................................................................................................117
E180X_write..................................................................................................................................................................................................124
E180X_write()...............................................................................................................................................................................................124
electrostatic sensitive device......................................................................................................................................................................9
encoder..............................................................................................................................................................................................................35
EPR.............................................................................................................................................................................................................38, 73f.
Error.............................................................................................................................................................................................................17, 68
errout..................................................................................................................................................................................................................21
ESD.........................................................................................................................................................................................................................9
eth.........................................................................................................................................................................................................................27
Ethernet...........................................................................................................................................................................11ff., 19, 27, 69, 94
extension connector.....................................................................................................................................................................................37
ExtStart..............................................................................................................................................................32, 44f., 72ff., 77f., 96, 117
ExtStop...............................................................................................................................................................................32, 44, 73, 77f., 96

fiber......................................................................................................................................................................................................................31
fiber laser..............................................................................................................................................................................................32, 135f.
fiber-laser.......................................................................................................................................................................................................105
file extension....................................................................................................................................................................................................38
filename..............................................................................................................................................................................................................38
firmware..............................................................................................................................................................................................18, 28, 99
font.......................................................................................................................................................................................................................38
fonts.............................................................................................................................................................................................................18, 43
FPK............................................................................................................................................................................................................63, 104

G-Code.............................................................................................................................................................................................................72f.
G0..................................................................................................................................................................................................................88, 90
G1..................................................................................................................................................................................................................88, 90
G2.........................................................................................................................................................................................................................88
G3.........................................................................................................................................................................................................................88
G4.........................................................................................................................................................................................................................88
G70......................................................................................................................................................................................................................90
G71......................................................................................................................................................................................................................90
galvos...........................................................................................................................................................................................................29, 47
gateway......................................................................................................................................................................................................26, 76
GNDext.......................................................................................................................................................................................................33, 36
GRBL...................................................................................................................................................................................................................91
gw0.......................................................................................................................................................................................................................26
GZTECH S355 series DPSS....................................................................................................................................................................147
GZTech YFPN........................................................................................................................................................................................53, 135

HALdrive...........................................................................................................................................................................56, 58, 61, 64, 66f.
HALnode Compact Ethernet IO..............................................................................................................................................................27
haltedloop..........................................................................................................................................................................................20, 40, 42
haltedlooptimeout.................................................................................................................................................................................20, 40
homing......................................................................................................................................................................................................49, 123

idxselect............................................................................................................................................................................................21, 41, 74f.
in-polygon delay..........................................................................................................................................................................................103

160

Intelli-IO Extension Board...............................................................................................................................................................48, 118
iobuff....................................................................................................................................................................................................21, 41, 75
iohaltedloop..................................................................................................................................................................................20, 40ff., 74
iolatch..........................................................................................................................................................................................................20, 41
ioselect....................................................................................................................................................................................21, 38, 40f., 74f.
iothres.................................................................................................................................................................................................................20
IP..........................................................................................................................................................................................................12f., 19, 94
ip0.........................................................................................................................................................................................................................19
IPG......................................................................................................................................................................................................31, 53, 135
IPG YLM...........................................................................................................................................................................................53, 56, 140
IPG YLP................................................................................................................................................................................................53, 136ff.
IPG YLR...........................................................................................................................................................................................................139

JPT........................................................................................................................................................................................................................53
JPT YDFLP..............................................................................................................................................................................................53, 136
jump..................................................................................................................................................................................................................106
jump delay............................................................................................................................................................................................103, 106
jump speed.....................................................................................................................................................................................................106
jumpspeed......................................................................................................................................................................................................102

laser off delay......................................................................................................................................................................................103, 106
laser on delay......................................................................................................................................................................................103, 107
Laser signals..............................................................................................................................................................................................12, 31

LaserA.......................................................................................................................................................................................................32, 104
LaserB.......................................................................................................................................................................................................32, 104
LaserGate...............................................................................................................................................................18, 22, 32, 71, 124, 146
lasers...................................................................................................................................................................................................................31
Latch..........................................................................................................................................................................................................32, 124
LED.......................................................................................................................................................................................................................17
libslrtc4.so......................................................................................................................................................................................................129
Linux....................................................................................................................................................................................................................14
loop......................................................................................................................................................................................................................39
LP8................................................................................................................................................................................................................25, 32

M2.................................................................................................................................................................................................................72, 89
M3........................................................................................................................................................................................................................89
M5........................................................................................................................................................................................................................89
M704...................................................................................................................................................................................................................88
M705...................................................................................................................................................................................................................90
M707...................................................................................................................................................................................................................90
M709................................................................................................................................................................................................................89f.
M715...................................................................................................................................................................................................................90
M718...................................................................................................................................................................................................................90
machine network...........................................................................................................................................................................................12

Main Oscillator................................................................................................................................................................................18, 25, 32
mark..................................................................................................................................................................................................................107
mark delay............................................................................................................................................................................................103, 107
mark speed.....................................................................................................................................................................................................107
Marking Active................................................................................................................................................................................................18
marking data....................................................................................................................................................................................................79
marking in progress....................................................................................................................................................................................117
marking on-the-fly......................................................................................................................................................................................34f.
markspeed......................................................................................................................................................................................................102
matrix laser...............................................................................................................................................................................................28, 43
matrix marking................................................................................................................................................................................................43
matrix printing................................................................................................................................................................................................43
MaxPhotonics.......................................................................................................................................................................................53, 141
MaxPhotonics MFP............................................................................................................................................................................53, 141

161

MFP.....................................................................................................................................................................................................................53
microSD.......................................................................................................................................................................................12, 18, 38, 68
microUSB..........................................................................................................................................................................................................15
mipout.................................................................................................................................................................................................................21
MO......................................................................................................................................................................................................25, 32, 124
MOPA.......................................................................................................................................................................................................53, 136
motion.................................................................................................................................................................................................................49
motout................................................................................................................................................................................................................21
Multi-IO Extension Board..........................................................................................................................................................................48

NCC.....................................................................................................................................................................................................................65
netmask......................................................................................................................................................................................................27, 76
nm0......................................................................................................................................................................................................................27
node0..................................................................................................................................................................................................................27
node1..................................................................................................................................................................................................................27
NX-02..........................................................................................................................................................................................................50, 52
NX-02 Extension Board...............................................................................................................................................................................50

open collector..................................................................................................................................................................................................34
opto-insulated.................................................................................................................................................................................................33
opto-mode 0..................................................................................................................................................................................................146

passwd................................................................................................................................................................................................................19
pethd...................................................................................................................................................................................................................27
pixel line..........................................................................................................................................................................................................108
polydelay.........................................................................................................................................................................................................103
position encoder.............................................................................................................................................................................................34
power driver.....................................................................................................................................................................................................49
Power supply.................................................................................................................................................................................12, 15, 29ff.
PRO license...............................................................................................................................................................................................11, 15
programming interface................................................................................................................................................................................93
PWM.........................................................................................................................................................................................................63, 104

Q-Switch.........................................................................................................................................................................................................104
QR...............................................................................................................................................................................................................39, 75f.
Quick Start........................................................................................................................................................................................................68

Raycus.......................................................................................................................................................................................................53, 143
Raycus RFL-C Series 24V Control CW...............................................................................................................................................146
Raycus RFL-PMX............................................................................................................................................................................................53
Raycus RFL-PQB.............................................................................................................................................................................................53
Raycus RFL-QCW...................................................................................................................................................................................53, 56
reboot.................................................................................................................................................................................................................78
reference...........................................................................................................................................................................................................49
referencing.....................................................................................................................................................................................................123
RFL-PMX............................................................................................................................................................................................................53
RFL-PQB............................................................................................................................................................................................................53
RJ45.....................................................................................................................................................................................................................12
RL3-100..........................................................................................................................................................................................................151
rotation............................................................................................................................................................................................................109

RS232.......................................................................................................................................................................................22f., 37, 46f., 57
RS485..............................................................................................................................................................................................22f., 37, 46f.
RTC4...............................................................................................................................................................................................................129f.
RTC4DLL.dll..................................................................................................................................................................................................129
RX0.......................................................................................................................................................................................................................37
RX0-.....................................................................................................................................................................................................................37
RX0+....................................................................................................................................................................................................................37

162

RX1.......................................................................................................................................................................................................................46
RX1-.....................................................................................................................................................................................................................46
RX1+....................................................................................................................................................................................................................46

sc_optic.dll......................................................................................................................................................................................................133
scaling..............................................................................................................................................................................................................109
scanhead...............................................................................................................................................................................16, 29ff., 47, 110
scanner movement.....................................................................................................................................................................................102
Scanner signals........................................................................................................................................................................................12, 29

scanner speed...............................................................................................................................................................................................102
SCI.....................................................................................................................................................................................................................133
SDP Extension Board...................................................................................................................................................................................52
Serial interface.......................................................................................................................................................................12, 22f., 37, 94
serial number.................................................................................................................................................................................................75f.
SL Extension Board....................................................................................................................................................................................104
SL2-100...........................................................................................................................................................................................................150
SNTP....................................................................................................................................................................................................................76
SNTP time server...........................................................................................................................................................................................26
sntp0....................................................................................................................................................................................................................26
sntp0offset.......................................................................................................................................................................................................26
SPI...............................................................................................................................................................................................31, 59, 65, 142
SPI G4.................................................................................................................................................................................................................59
stand-alone........................................................................................................................................................................................38, 43, 71
standalone..........................................................................................................................................................................................20, 39, 43
STATUS..................................................................................................................................................................................................29f., 110
step/direction..................................................................................................................................................................................................49
stepper...............................................................................................................................................................................................................49
stepper motor..................................................................................................................................................................................................49
SYNC.......................................................................................................................................................................................................29f., 46f.

T1..................................................................................................................................................................................................................89, 91
Telnet...................................................................................................................................................................................................................69
time......................................................................................................................................................................................................................76
truePulse nano................................................................................................................................................................................................65
TRUMPF.....................................................................................................................................................................................................59, 65
TruPulse nano..................................................................................................................................................................................................59
tune..............................................................................................................................................................................................................23, 45
tunemarkout.............................................................................................................................................................................................23, 42
tunereadyout............................................................................................................................................................................................23, 41
tunexy3..............................................................................................................................................................................................................26
turn on laser.....................................................................................................................................................................................................74
TX0.......................................................................................................................................................................................................................37
TX0-.....................................................................................................................................................................................................................37
TX0+....................................................................................................................................................................................................................37
TX1.......................................................................................................................................................................................................................46
TX1-.....................................................................................................................................................................................................................46
TX1+....................................................................................................................................................................................................................46
Type B...............................................................................................................................................................................................................135
Type D..............................................................................................................................................................................................................136
Type E...............................................................................................................................................................................................................137
Type G..............................................................................................................................................................................................................138

u0bits..................................................................................................................................................................................................................22
u0brate...............................................................................................................................................................................................................22
u0bypass.............................................................................................................................................................................................22, 69, 79
u0parity..............................................................................................................................................................................................................22
u0stop.................................................................................................................................................................................................................22
u1bits..................................................................................................................................................................................................................23

163

u1brate...............................................................................................................................................................................................................23
u1parity..............................................................................................................................................................................................................23
UART0................................................................................................................................................................................................................37
UART1..............................................................................................................................................................................................................46f.
USB......................................................................................................................................................................................11f., 15, 27, 68, 94
USC1.................................................................................................................................................................................................................133
USC2.................................................................................................................................................................................................................133
User LED............................................................................................................................................................................................................12

Vext...............................................................................................................................................................................................................33, 36
Vext).....................................................................................................................................................................................................................36

waiting for external trigger.....................................................................................................................................................................117
waveform...........................................................................................................................................................................................................32
wetout................................................................................................................................................................................................................21
Windows.........................................................................................................................................................................................................13f.

X................................................................................................................................................................................................................29f., 46f.
XY2-100......................................................................................................................................................................................103, 110, 148
XY2-100E.............................................................................................................................................................................................104, 148
XY2-200................................................................................................................................................................................................103, 148
XY2-200E.......................................................................................................................................................................................................104
XY3-100..................................................................................................................................................................................................30, 149

Y................................................................................................................................................................................................................29f., 46f.
YAG.....................................................................................................................................................................................................31, 62, 104
YDFLP.................................................................................................................................................................................................................53
YLM......................................................................................................................................................................................................................56
YLP.......................................................................................................................................................................................................................53

Z..........................................................................................................................................................................................................................29f.

Extension Board.........................................................................................................................................................................................119

.bco....................................................................................................................................................................................................................100
.bco,......................................................................................................................................................................................................................19
.crt..............................................................................................................................................................................................................19, 100
.ct5.............................................................................................................................................................................................................19, 100
.ctb..............................................................................................................................................................................................................19, 100
.fcr......................................................................................................................................................................................................................100
.gcd.............................................................................................................................................................................................................19, 100
.txt..............................................................................................................................................................................................................19, 100
.ucf..............................................................................................................................................................................................................19, 100
.xml.............................................................................................................................................................................................................19, 100

164
